Metallurgical Nature at the Interface between Tool Shoulder and Workpiece during Friction Stir Welding

Abstract:

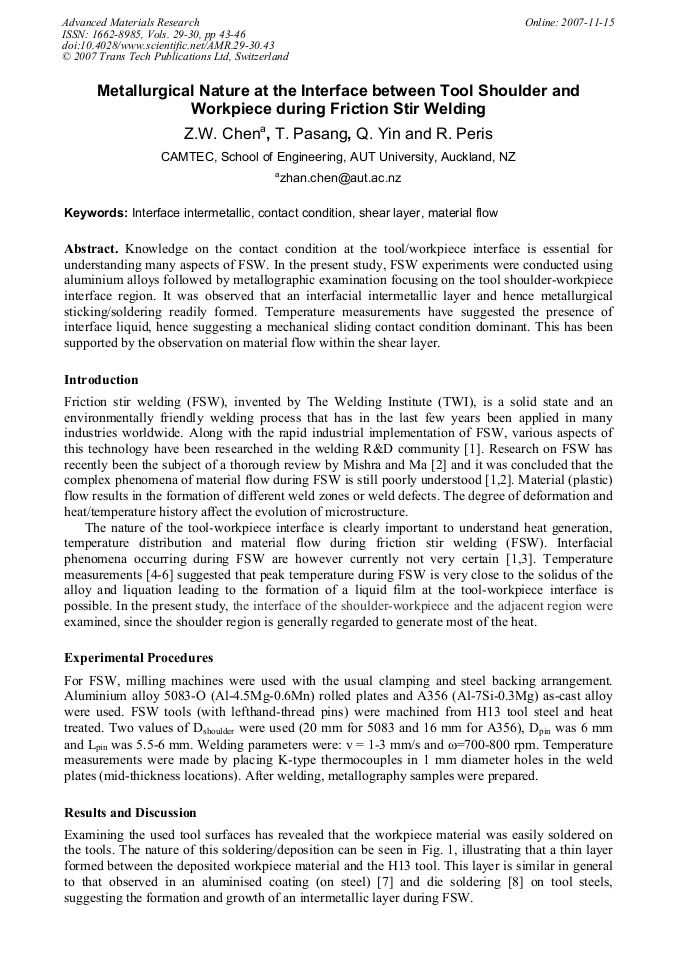

Article Preview

Knowledge on the contact condition at the tool/workpiece interface is essential for understanding many aspects of FSW. In the present study, FSW experiments were conducted using aluminium alloys followed by metallographic examination focusing on the tool shoulder-workpiece interface region. It was observed that an interfacial intermetallic layer and hence metallurgical sticking/soldering readily formed. Temperature measurements have suggested the presence of interface liquid, hence suggesting a mechanical sliding contact condition dominant. This has been supported by the observation on material flow within the shear layer.

Info:

Periodical:

Advanced Materials Research (Volumes 29-30)

Edited by:

Deliang Zhang, Kim Pickering, Brian Gabbitas, Peng Cao, Alan Langdon, Rob Torrens and Johan Verbeek

Pages:

43-46

Citation:

Z. W. Chen et al., "Metallurgical Nature at the Interface between Tool Shoulder and Workpiece during Friction Stir Welding", Advanced Materials Research, Vols. 29-30, pp. 43-46, 2007

Online since:

November 2007

Export:

Price:

$38.00

[1] T.W. Nelson: Friction Stir Welding and Processing III, (TMS, Warrendale 2005), p.149.

[2] R.S. Mishra and Z.Y. Ma: Mater. Sci. & Eng. R Vol. 50 (2005), p.1.

[3] P.A. Colegrove and H.R. Shercliff: J. of Mater. Proc. Tech. Vol. 169 (2005), p.320.

[4] K. Nakata, Y.G. Kim, M. Ushio, T. Hashimoto and S. Jyogan: ISIJ International Vol. 40 (2000), p. S15.

[5] P.A. Colegrove and H.R. Shercliff: Sci. and Tech. of Weld. & Join. Vol. 8 (2003), p.360.

[6] A. Gerlich, P. Su and T.H. North: Sci. and Tech. of Weld. & Join. Vol. 10 (2005), p.647.

[7] R.W. Richards, R.D. Jones, P.D. Clements and H. Clarke: Int. Mater. Rev. Vol. 39 (1994), p.191.

[8] Z.W. Chen: Mater. Sci. & Eng. A Vol. 397 (2005), p.356.

[9] W.M. van Haaften, W.H. Kool and L. Katgerman: Mater. Sci. & Eng. A Vol. 336 (2002), p.1.

[10] International alloy designations and chemical composition limits for wrought aluminium and wrought aluminium alloys (The Aluminium Association, Inc., Arlington, 2006).

DOI: https://doi.org/10.3403/00315137u

[11] M.S. Yeh, W.P. Wang, S.C. Wang and T.H. Chuang TH: Metall. & Mater. Trans. A Vol. 31 (2000), p.1310.

[12] S.I. Hong and Y.S. Seo: Mater. Sci. & Eng. A Vol. 265 (1999), p.29.
