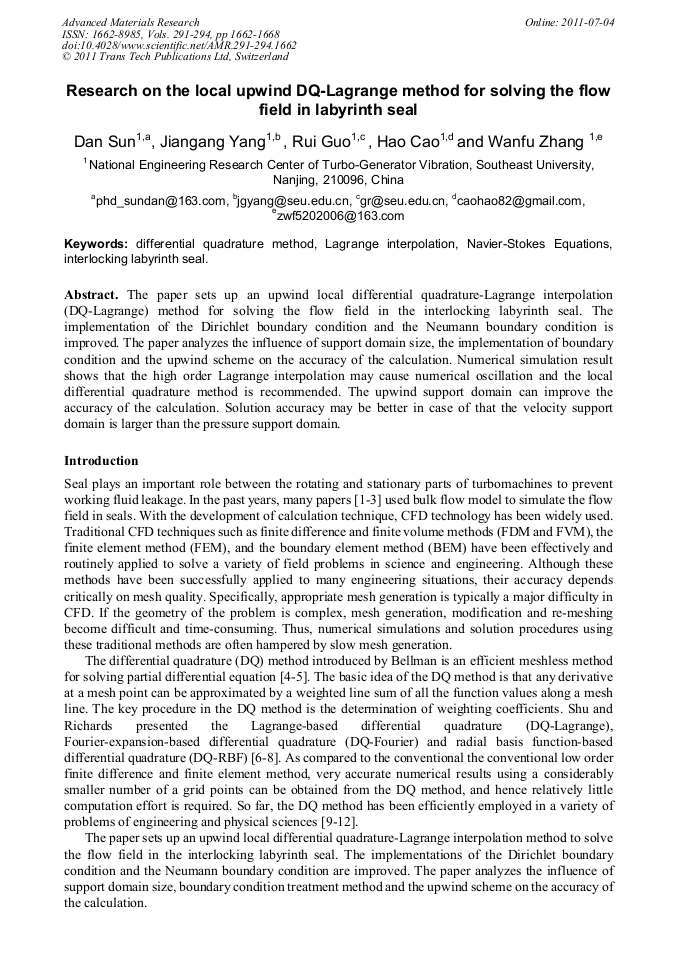

Research on the Local Upwind DQ-Lagrange Method for Solving the Flow Field in Labyrinth Seal

Abstract:

The paper sets up an upwind local differential quadrature-Lagrange interpolation (DQ-Lagrange) method for solving the flow field in the interlocking labyrinth seal. The implementation of the Dirichlet boundary condition and the Neumann boundary condition is improved. The paper analyzes the influence of support domain size, the implementation of boundary condition and the upwind scheme on the accuracy of the calculation. Numerical simulation result shows that the high order Lagrange interpolation may cause numerical oscillation and the local differential quadrature method is recommended. The upwind support domain can improve the accuracy of the calculation. Solution accuracy may be better in case of that the velocity support domain is larger than the pressure support domain.

• Periodical: Advanced Materials Research (Volumes 291-294)
• Pages: 1662-1668
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.291-294.1662
• Online since: July 2011
• Authors: Dan Sun, Jian Gang Yang, Rui Guo, Hao Cao, Wan Fu Zhang
• Keywords: Differential Quadrature Method, Interlocking Labyrinth Seal, Lagrange Interpolation, Navier-Stokes Equation

References

[1] T. Iwatsubo, "Evaluation of Instability Forces of Labyrinth Seals in Turbines or Compressors," Proceedings of a Workshop on Rotordynamic Instability Problems in High-Performance Turbomachinery. 1980, Texas A&M University, NASA p.139

[2] Soulas Thomas, San Andres Luis, "A Bulk Flow Model for Off-centered Honeycomb gas Seals," Journal of Engineering for Gas Turbines and Power. 2007, Vol.129 No.1, p.185

DOI: 10.1115/1.2227031

[3] D. Souza Rohan J, Childs Dara W, "A Comparison of Rotordynmic Coefficient Prediction for Annular Honeycomb Gas Seals Using Three Different Fricion-Factot Models," Journal of Tribology, 2002,Vol.124 No.7 p.524

DOI: 10.1115/1.1456086

[4] Bellman RE, J. "Casti. Differential quadrature and long term integration," Math. Anal. Appl. 1971, Vol.34 p.235

[5] Bellman RE, Kashef BG, Casti J. "Differential quadrature :a technique for the rapid solution of nonlinear partial differential equations," Comput Phys 1972,p.40

DOI: 10.1016/0021-9991(72)90089-7

[6] C. Shu, Richards B F, "Application of generalized differential quadrature to solve two dimensional in compressible Navier-Stokes equations," Int Number Method Fluid, 1992, Vol.15No.7 p.791

DOI: 10.1002/fld.1650150704

[7] C. Shu, Chew YT, "Fourier expansion-based differential quadrature and its application to Helmholtz eigenvalue problems," Commun. In Numer Methods in Eng, Vol.13p. 643

DOI: 10.1002/(sici)1099-0887(199708)13:8<643::aid-cnm92>3.0.co;2-f

[8] C. Shu H. Ding, H.Q. T.G. Chen, Wang. "An upwind local RBF-DQ method for simulation of inviscid compressible flows," Computer Methods in Applied Mechanics and Engineering, 2005,Vol.5p.200

DOI: 10.1016/j.cma.2004.07.008

[9] Jian-an Sun, Zheng-you Zhu, "Upwind local differential quadrature method for solving incompressible viscous flow," Comput. Method Appl. Mech. Engrg. 2000, Vol.188,p.495(In Chinese)

DOI: 10.1016/s0045-7825(99)00191-7

[10] Wang. Yongliang, Wang. Xinwei, "On a High-Accuracy Curved Differential Quadrature Beam Element and Its Applications,". Journal of Nanjing University of Aeronautics & stronautics. 2001,Vol.33, No.6, p.516(In Chinese)

[11] Hongying Jing, JiduoJin, Bangchun Wen, "Stability and Critical Flow Velocity Analysis of a Clamped Pipe Conveying Fluid with Intermediate Support," Journal of Mechanical Engineering, 2009, Vol.45, No.3, p.89(In Chinese)

DOI: 10.3901/jme.2009.03.089

[12] Shuping Liang, Hongfeng Li, Wen Chen, "The Stability Problem of a Circular Arch under Hydrostatic Pressure Solved by the DQ Method," Journal of Huazhong University of Science and Technology. 1997, Vol.25, No.1, p.79(In Chinese)
