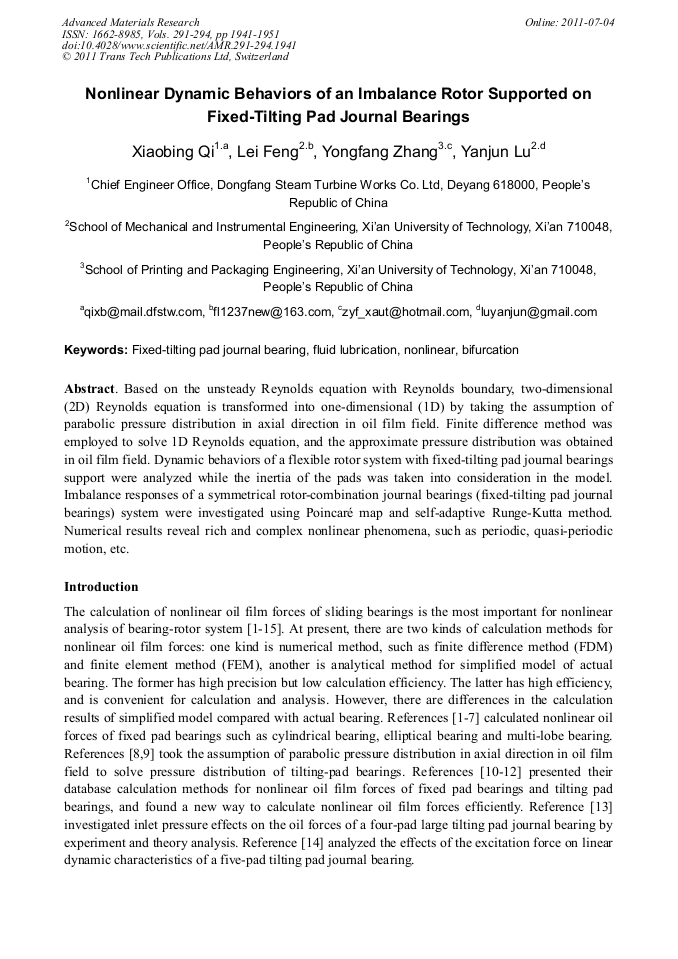

Nonlinear Dynamic Behaviors of an Imbalance Rotor Supported on Fixed-Tilting Pad Journal Bearings

Abstract:

Based on the unsteady Reynolds equation with Reynolds boundary, two-dimensional (2D) Reynolds equation is transformed into one-dimensional (1D) by taking the assumption of parabolic pressure distribution in axial direction in oil film field. Finite difference method was employed to solve 1D Reynolds equation, and the approximate pressure distribution was obtained in oil film field. Dynamic behaviors of a flexible rotor system with fixed-tilting pad journal bearings support were analyzed while the inertia of the pads was taken into consideration in the model. Imbalance responses of a symmetrical rotor-combination journal bearings (fixed-tilting pad journal bearings) system were investigated using Poincaré map and self-adaptive Runge-Kutta method. Numerical results reveal rich and complex nonlinear phenomena, such as periodic, quasi-periodic motion, etc.

• Periodical: Advanced Materials Research (Volumes 291-294)
• Pages: 1941-1951
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.291-294.1941
• Online since: July 2011
• Authors: Xiao Bing Qi, Lei Feng, Yong Fang Zhang, Yan Jun Lu
• Keywords: Bifurcation, Fixed-Tilting Pad Journal Bearing, Fluid Lubrication, Nonlinear

References

[1] Sanxing Zhao, Hua Xu, Guang Meng and Jun Zhu: Tribol. Int. vol. 38(2005), pp.749-756

[2] Ddexin Li and Jianxue Xu: J. Sound and Vibr. vol. 275 (2004), pp.1-16

[3] Dexin Li and Jianxue Xu: Engng. with Computer vol. 20 (2005), pp.316-322

[4] Yanjun Lu, Yongfang Zhang, Rong Dai, Heng. Liu, Lie Yu, Di Hei and Yuan Wang: J. Engng. Tribol. vol. 222 (2008), pp.87-95

[5] Yanjun Lu, Heng Liu, Rong Dai, Yongfang Zhang, Lie Yu and Yangbing Yu: J. Engng. Tribol. vol. 223 (2009), pp.137-149

[6] Yanjun Lu, Rong Dai, Di Hei, Yongfang Zhang, Heng Liu and Lie Yu: J. Mech. Engng. Sci. vol. 223 (2009), pp.835-849

[7] Guangyan Shen, Zhonghui Xiao, Tiesheng Zheng and Wen Zhang: J. Aerospace Power vol. 19 (2004), pp.604-609（In Chinese）

[8] I. Abu-Mahfouz and M. L. Adams: J. Vibr. and Acous. vol. 127 (2005), pp.262-272

[9] R. Brancati, E. Rocca and R. Russo: Tribol. Int. vol. 29 (1996), pp.571-578

[10] Yinghou Jiao, Zhaobo Chen, Fuli Liu, Xiuquan Qu and Zhiming Zhang: Proc. the CSEE. vol. 24 (2004), pp.227-232 (In Chinese)

[11] Wen Wang and Zhiming Zhang: J. Shanghai Univ. of Tech. vol. 14 (1993), pp.299-305 (In Chinese)

[12] Zhiqiang Meng, Hua Xu and Jun Zhu: Tribol. vol. 21 (2001), pp.223-227 (In Chinese)

[13] H. C. Ha, H. J. Kim and K. W. Kim: J. Tribol. vol. 117 (1995), pp.160-165

[14] H. C. Ha and S. H. Yang: J. Tribol. vol. 121 (1999), pp.517-522

[15] G.uang Qiao, Liping Wang and Tiesheng Zheng: Engng. Mechanics vol. 24 (2007), pp.180-185 (In Chinese)

[16] K. Sim and D. Kim: J. Tribol. vol. 129 (2007), pp.112-119
