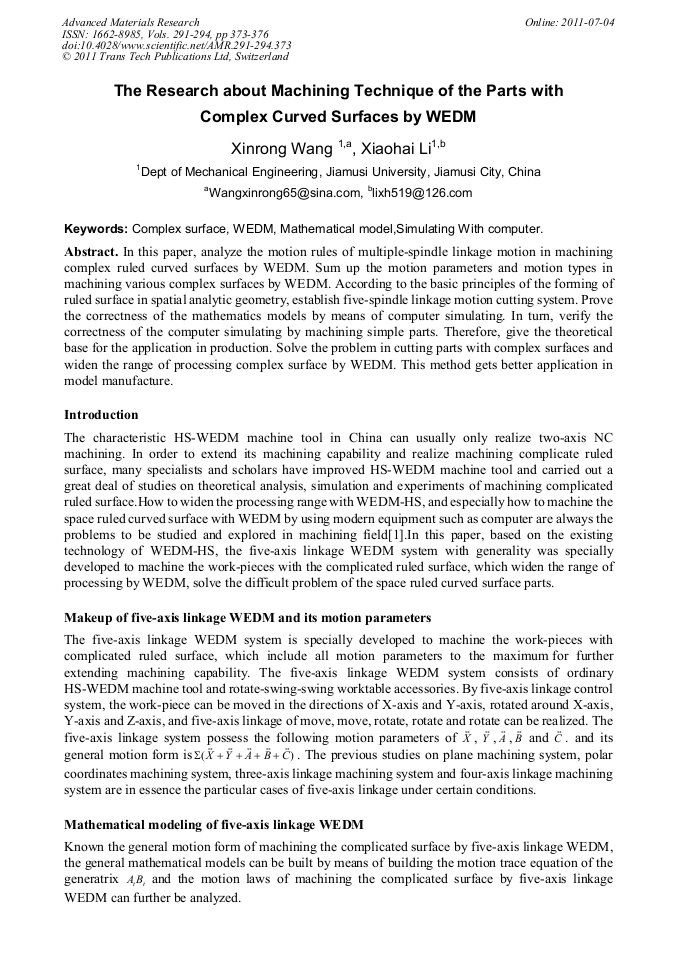

The Research about Machining Technique of the Parts with Complex Curved Surfaces by WEDM

Abstract:

In this paper, analyze the motion rules of multiple-spindle linkage motion in machining complex ruled curved surfaces by WEDM. Sum up the motion parameters and motion types in machining various complex surfaces by WEDM. According to the basic principles of the forming of ruled surface in spatial analytic geometry, establish five-spindle linkage motion cutting system. Prove the correctness of the mathematics models by means of computer simulating. In turn, verify the correctness of the computer simulating by machining simple parts. Therefore, give the theoretical base for the application in production. Solve the problem in cutting parts with complex surfaces and widen the range of processing complex surface by WEDM. This method gets better application in model manufacture.

• Periodical: Advanced Materials Research (Volumes 291-294)
• Pages: 373-376
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.291-294.373
• Online since: July 2011
• Authors: Xin Rong Wang, Xiao Hai Li
• Keywords: Complex Surface, Mathematical Models, Simulating with Computer, WEDM

References

[1] Desheng Du. Analysis of motion of three-axis linkage WEDM and its simulation. Journal of Harbin University of Science and Technology[J]. 2008,V.13:pp.113-116. ( In Chinese)

[2] Fujun Ren. Study on computer simulation of WEDM of ruled surface by and EDM by rotary electrode. [D]. Harbin Institute of Technology,1999. ( In Chinese)

[3] Xinrong Wang.Study on kinematics of multi-axis linkage WEDM and its application[D],Harbin: Harbin Engineering University,2000. ( In Chinese)

[4] Dianjun Wang.Simulation of machining spacial surface by multi-axis WEDM. Journal of Qinghua University[J],2008,48(5):pp.796-799. ( In Chinese)
