Microstructure and Mechanical Performance of Ultrasonically Brazed Joints of High Fraction Volume of SiC Particulate Reinforced Aluminum Matrix Composites

Yang Zhang; Cha Qin; Hao Zhu

doi:10.4028/www.scientific.net/AMR.291-294.910

Paper Titles

Completely Inelastic Collision to Confirm Maximum Punch Pressure Force of Cold Pressure Welding
p.890

Residual Stress Characterization of A7N01-T5 Welds for High Speed Train by X-Ray Diffraction and Verification
p.896

Study of Type 316L Stainless Steel TIG Welding with MoO₃ Powder
p.901

Evaluation Study on Angular Distortion and Residual Stress of Stainless Steel Pulsed TIG Weldment
p.905

Microstructure and Mechanical Performance of Ultrasonically Brazed Joints of High Fraction Volume of SiC Particulate Reinforced Aluminum Matrix Composites
p.910

Electrode Lifetime in Spot Welding Galvanized Sheet with Insert Material
p.915

Effect of Physical Simulation Thermal Parameters on Microstructure Transition and Property Variation of Boron Steel
p.919

The Chemical Reactions in Solution Synthesis of Aluminum Alloy Brazing Fluorate Flux
p.924

The Effect of Nano-Cu Particles on Mechanical Properties of Micro-Joining Joint with Lead-Free Solder
p.929

HomeAdvanced Materials ResearchAdvanced Materials Research Vols. 291-294Microstructure and Mechanical Performance of...

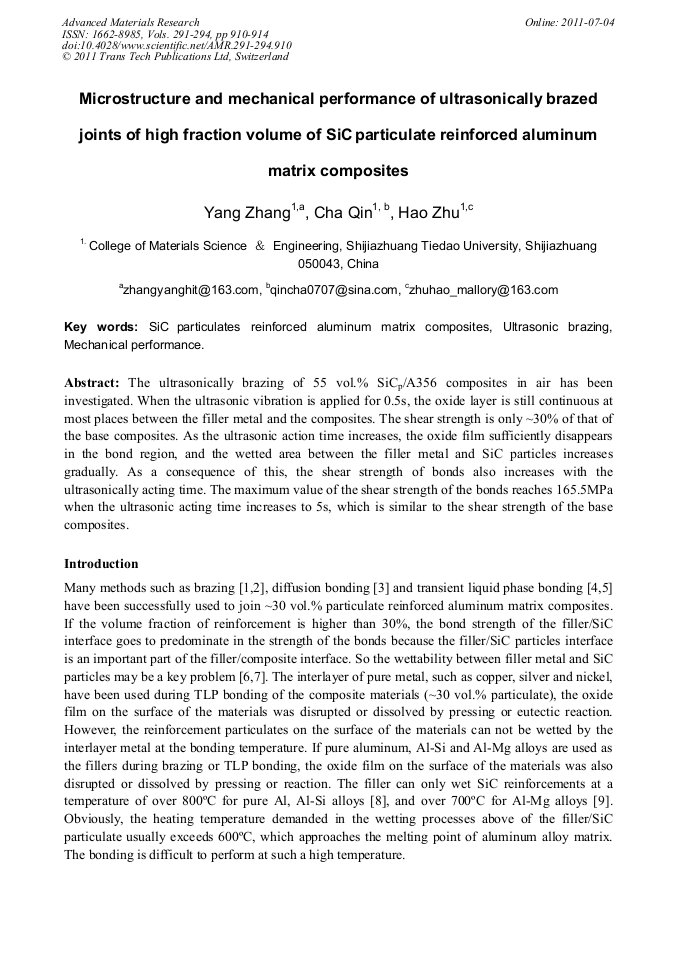

Microstructure and Mechanical Performance of Ultrasonically Brazed Joints of High Fraction Volume of SiC Particulate Reinforced Aluminum Matrix Composites

Abstract:

The ultrasonically brazing of 55 vol.% SiC_p/A356 composites in air has been investigated. When the ultrasonic vibration is applied for 0.5s, the oxide layer is still continuous at most places between the filler metal and the composites. The shear strength is only ~30% of that of the base composites. As the ultrasonic action time increases, the oxide film sufficiently disappears in the bond region, and the wetted area between the filler metal and SiC particles increases gradually. As a consequence of this, the shear strength of bonds also increases with the ultrasonically acting time. The maximum value of the shear strength of the bonds reaches 165.5MPa when the ultrasonic acting time increases to 5s, which is similar to the shear strength of the base composites.
