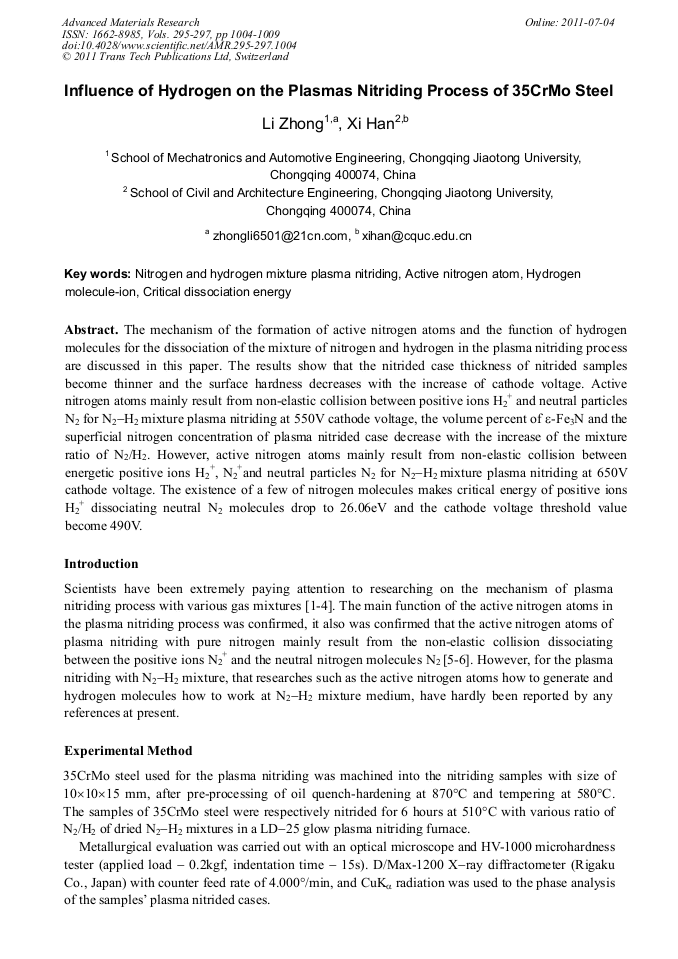

Influence of Hydrogen on the Plasmas Nitriding Process of 35CrMo Steel

Abstract:

The mechanism of the formation of active nitrogen atoms and the function of hydrogen molecules for the dissociation of the mixture of nitrogen and hydrogen in the plasma nitriding process are discussed in this paper. The results show that the nitrided case thickness of nitrided samples become thinner and the surface hardness decreases with the increase of cathode voltage. Active nitrogen atoms mainly result from non-elastic collision between positive ions H₂⁺ and neutral particles N₂ for N₂-H₂ mixture plasma nitriding at 550V cathode voltage, the volume percent of e-Fe₃N and the superficial nitrogen concentration of plasma nitrided case decrease with the increase of the mixture ratio of N₂/H₂. However, active nitrogen atoms mainly result from non-elastic collision between energetic positive ions H₂⁺, N₂⁺and neutral particles N₂ for N₂-H₂ mixture plasma nitriding at 650V cathode voltage. The existence of a few of nitrogen molecules makes critical energy of positive ions H₂⁺ dissociating neutral N₂ molecules drop to 26.06eV and the cathode voltage threshold value become 490V.

• Periodical: Advanced Materials Research (Volumes 295-297)
• Pages: 1004-1009
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.295-297.1004
• Online since: July 2011
• Authors: Li Zhong, Xi Han
• Keywords: Active Nitrogen Atom, Critical Dissociation Energy, Hydrogen Molecule-Ion, Nitrogen and Hydrogen Mixture Plasma Nitriding

References

[1] Karakan Mehmet, Alsaran Akgün and Çelik, Ayhan: "Effects of Various Gas Mixtures on Plasma Nitriding Behavior of AISI 5140 Steel," Materials Characterization, 2002, 49(3), p.241

DOI: 10.1016/s1044-5803(03)00010-x

[2] Mufu Yan, Jihong Yan and T Bell: "Numerical Simulation of Nitrided Layer Growth and Nitrogen Distribution in ε-Fe2-3N, γ'-Fe4N and α-Fe during Pulse Plasma Nitriding of Pure Iron," Modelling and Simulation in Materials Science and Engineering, 2000, 8(4), p.491

DOI: 10.1088/0965-0393/8/4/307

[3] Miola E.J., de Souza S.D. and Olzon-Dionysio M: "Systematic Study on Influence of the Niitriding Parameters on Pure Iron Superficial Layer Properties," Surface & Coatings Technology; 2003, 167(1), p.33

DOI: 10.1016/s0257-8972(02)00884-8

[4] Baranowska J., Szczeciński K. Wysiecki M: "Growth of Nitrided Layer after Cathode Sputtering,". Vacuum, 2003, 70(2~3), p.293

DOI: 10.1016/s0042-207x(02)00657-7

[5] L. ZHONG, X. HAN, el al: "Study on Ion Nitriding with Pure Nitrogen Gas under Furnace Shut and N2 Provided Intermittently," Materials Protection, 2004, 37(2), p.22 (In Chinese)

[6] L. ZHONG "Influence of Cathode Voltage and Nitrogen Supply Way on Ion Nitriding with Pure Nitrogen," Heat Treatment of Metals, 2007, 32(3), p.25 (In Chinese)

[7] S.Q. Zhou, Q.L. Fan and Q. Ren: "Study on Microstructure of Rapid and Deep Case Ion Nitriding of 45 steel," Heat Treatment Process, 1998(1), p.21 (In Chinese)

[8] C.Y. Yange: "A Quantitative X-Ray Phase Analysis Method on Plane Sample". Journal of Chinese User of the Rigaku X-Ray Diffractometex, 1989(2), p.97(In Chinese)

[9] Y.J. Li and Y.N. Zhu: "Ion Nitriding," Mechanism industry Press, 1985,4(In Chinese)

[10] H. Fan: "X-Ray Diffraction Metallurgy," Mechanism industry Press, 1981, 9(In Chinese)

[11] J.R. Chen: "Low Temperature Plasma Chemistry and Application," Science Press, 2001, 7 (In Chinese)
