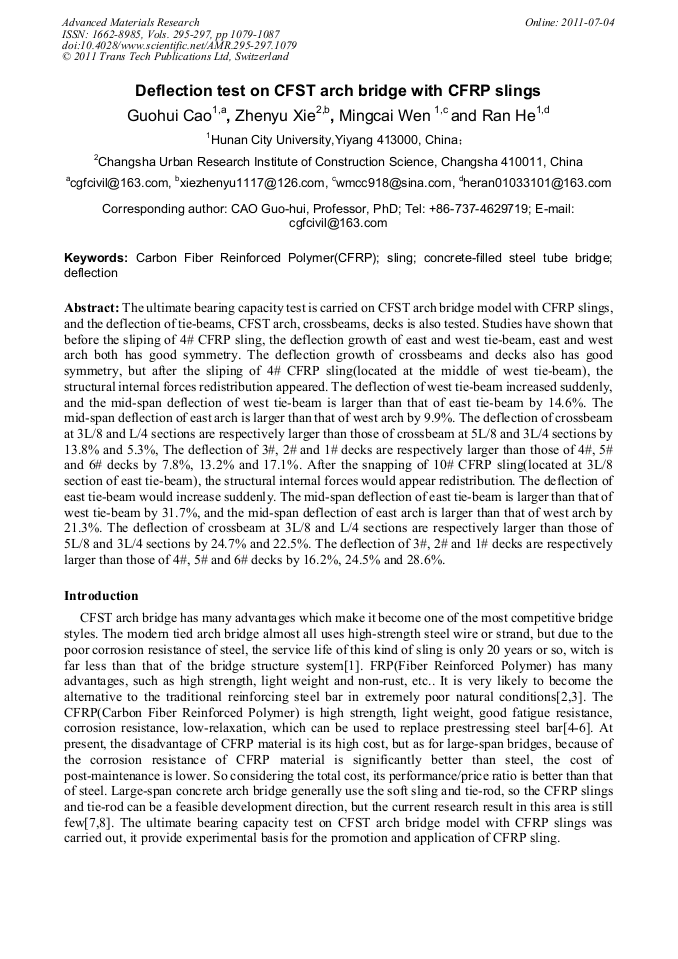

Deflection Test on CFST Arch Bridge with CFRP Slings

Abstract:

The ultimate bearing capacity test is carried on CFST arch bridge model with CFRP slings, and the deflection of tie-beams, CFST arch, crossbeams, decks is also tested. Studies have shown that before the sliping of 4# CFRP sling, the deflection growth of east and west tie-beam, east and west arch both has good symmetry. The deflection growth of crossbeams and decks also has good symmetry, but after the sliping of 4# CFRP sling(located at the middle of west tie-beam), the structural internal forces redistribution appeared. The deflection of west tie-beam increased suddenly, and the mid-span deflection of west tie-beam is larger than that of east tie-beam by 14.6%. The mid-span deflection of east arch is larger than that of west arch by 9.9%. The deflection of crossbeam at 3L/8 and L/4 sections are respectively larger than those of crossbeam at 5L/8 and 3L/4 sections by 13.8% and 5.3%, The deflection of 3#, 2# and 1# decks are respectively larger than those of 4#, 5# and 6# decks by 7.8%, 13.2% and 17.1%. After the snapping of 10# CFRP sling(located at 3L/8 section of east tie-beam), the structural internal forces would appear redistribution. The deflection of east tie-beam would increase suddenly. The mid-span deflection of east tie-beam is larger than that of west tie-beam by 31.7%, and the mid-span deflection of east arch is larger than that of west arch by 21.3%. The deflection of crossbeam at 3L/8 and L/4 sections are respectively larger than those of 5L/8 and 3L/4 sections by 24.7% and 22.5%. The deflection of 3#, 2# and 1# decks are respectively larger than those of 4#, 5# and 6# decks by 16.2%, 24.5% and 28.6%.

• Periodical: Advanced Materials Research (Volumes 295-297)
• Pages: 1079-1087
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.295-297.1079
• Online since: July 2011
• Authors: Guo Hui Cao, Zhen Yu Xie, Ming Cai Wen, Ran He
• Keywords: Carbon Fiber Reinforced Polymer/Plastic (CFRP), Concrete-Filled Steel Tube Bridge, Deflection, Sling

References

[1] Hai-jun Wu, Ping Lu, Zhixia ZHOU.Development and research prospect of new CFRP bridge[J]. Journal of Chongqing Jiaotong University, 2005, 23(1)：1-5.(in Chinese)

[2] Deskovic N, Triantafillou T C, Meier U. Innovative design of FRP combined with concrete: short-term behavior[J]. Journal of Structural Engineering, ASCE, 1995, 121(7):1069-1078

DOI: 10.1061/(asce)0733-9445(1995)121:7(1069)

[3] Rizkalla SH, Labossiere P. Planning for a new generation of infrastructure:structural engineering with FRP in Canada[J]. ACI, Concrete International, 1999, 21(10): 25-28

[4] American Concrete Institute. State-of-the-Art Report on Fiber Reinforced Plastic(FRP) Reinforcement for Concrete Structures (ACI440-R96). ACI Committee 440,(1996)

[5] Mao-long Wang, Fusheng Zhu, Yan Jin. Fiber Reinforced Plastics(FRP) applying in concrete structures[J]. Concrete, 2005,(11)：17-23.(in Chinese)

[6] Zhitao Lu Kuihua Mei. First application of CFRP cables for a cable-stayed bridge in China[J]. China Civil Engineering Journal, 2007, 40(1): 54-59.(in Chinese)

[7] Guohui Cao, Zhi Fang, Xianyan Zhou. Experimental study on concrete-filled steel tube tied-arch bridge with CFRP hangers[J]. China Civil Engineering Journal, 2006, 39(12): 73-78.(in Chinese)

[8] Zhi Fang,, Jiandong Zhang. Behavior of Long Span Concrete Arch Bridge with CFRP Hangers and Tie Bars[J]. Central South Highway Engineering, 2005, 30(3): 48-52.(in Chinese)
