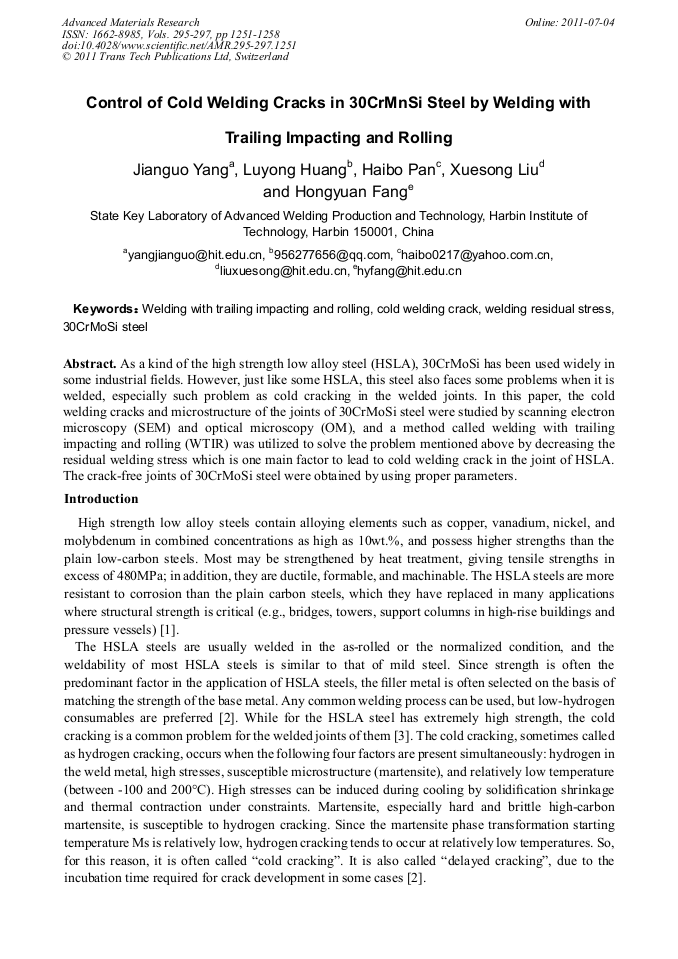

Control of Cold Welding Cracks in 30CrMnSi Steel by Welding with Trailing Impacting and Rolling

Abstract:

As a kind of the high strength low alloy steel (HSLA), 30CrMoSi has been used widely in some industrial fields. However, just like some HSLA, this steel also faces some problems when it is welded, especially such problem as cold cracking in the welded joints. In this paper, the cold welding cracks and microstructure of the joints of 30CrMoSi steel were studied by scanning electron microscopy (SEM) and optical microscopy (OM), and a method called welding with trailing impacting and rolling (WTIR) was utilized to solve the problem mentioned above by decreasing the residual welding stress which is one main factor to lead to cold welding crack in the joint of HSLA. The crack-free joints of 30CrMoSi steel were obtained by using proper parameters.

• Periodical: Advanced Materials Research (Volumes 295-297)
• Pages: 1251-1258
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.295-297.1251
• Online since: July 2011
• Authors: Jian Guo Yang, Lu Yong Huang, Hai Bo Pan, Xue Song Liu, Hong Yuan Fang
• Keywords: 30CrMoSi Steel, Cold Welding Crack, Welding Residual Stress (WRS), Welding with Trailing Impacting and Rolling

References

[1] William D. Callister, Jr., Materials Science and Engineering: An Introduction, Seventh Edition, John Wiley & Sons, Inc., Publication, 2007, p.362,149

[2] Sindo Kou, Welding Metallurgy, Second Edition, John Wiley & Sons, Inc., Publication,2002, p.405, 411, 432

[3] Kim H J. Kang B Y, Effect of Microstructural Variation on Weld Metal Cold Cracking of HSLA-100 Steel, SIJ Int. 43(2003)706-713

DOI: 10.2355/isijinternational.43.706

[4] Z.L. Tian. The Weld ability of Ultra-Fine Grained Carbon Steel. Workshop on New Generation Steel, NG STEEL 2001, CSM, Nov. Beijing, China. 108-112

[5] K Kim. Factors Controlling Cold Crack Susceptibility of Weld Metal. First Int. Conf. on Advanced Structural Steels, May, 2002, Tsukuba, Japan, 121-122

[6] Fan Cheng-lei, Fang Hong-yuan, Tao Jun, Strain Field Analysis of Weld with Trailing Impact Rolling to Control Residual Stress and Distortion and Prevent Hot Cracking, Transactions of The China Welding Institution. 6(2004)47-50

[7] Fan Chenglei, Fand Hongyuan, Tao Jun, Mechanism of Weld with Trailing Impact Rolling to Control Residual Stresses Deformation and Hot Cracking, J Tsinghua Univ(Sci& Tech). 45(2005)159-162

[8] I.H. Brown, The Role of Microsegregation in Centreline Cold Cracking of High Strength Low Alloy Steel Weldments, Scripta Materialia. 54(2006)489-492

DOI: 10.1016/j.scriptamat.2005.09.047

[9] H. Lu, X. S. Liu, J. G. Yang, Ultrasonic Stress Evaluation on Welded Plates with Lcr Wave, Science & Technology of Welding and Joining. 13(2008)70-75

DOI: 10.1179/174329307x249405

[10] Altino J. R. Loureiro, Effect of Heat Input on Plastic Deformation of Undermatched Welds, Journal of Materials Processing Technology. 128(2002)240-249

DOI: 10.1016/s0924-0136(02)00457-0

[11] C. GARCIA-MATEO, F. G. CABALLERO) and H. K. D. H. BHADESHIA, Development of Hard Bainite, ISIJ International. 43(2003)1238–1243

DOI: 10.2355/isijinternational.43.1238

[12] F. G. Caballero and H. K. D. H. Bhadeshia, Very Strong Bainite, Current Opinion in Solid State and Materials Science. 8(2004)251-257

DOI: 10.1016/j.cossms.2004.09.005

[13] H. K. D. H. Bhadeshia. Bulk Nanocrystalline Steels. Ironmaking and Steelmaking. 32(2005) 405-410

DOI: 10.1179/174328105x71308
