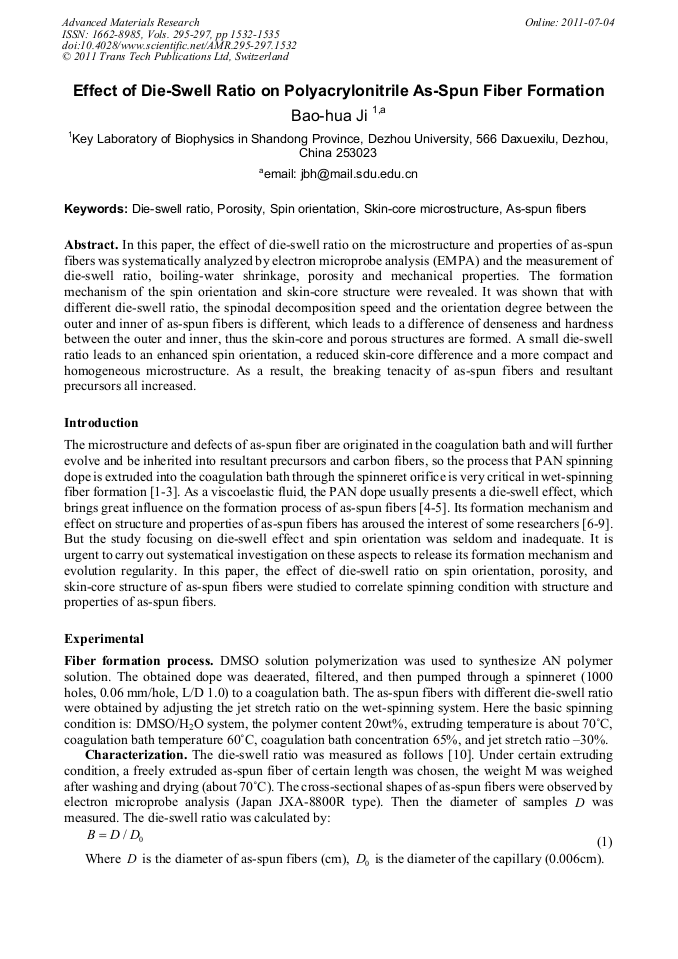

Effect of Die-Swell Ratio on Polyacrylonitrile As-Spun Fiber Formation

Abstract:

In this paper, the effect of die-swell ratio on the microstructure and properties of as-spun fibers was systematically analyzed by electron microprobe analysis (EMPA) and the measurement of die-swell ratio, boiling-water shrinkage, porosity and mechanical properties. The formation mechanism of the spin orientation and skin-core structure were revealed. It was shown that with different die-swell ratio, the spinodal decomposition speed and the orientation degree between the outer and inner of as-spun fibers is different, which leads to a difference of denseness and hardness between the outer and inner, thus the skin-core and porous structures are formed. A small die-swell ratio leads to an enhanced spin orientation, a reduced skin-core difference and a more compact and homogeneous microstructure. As a result, the breaking tenacity of as-spun fibers and resultant precursors all increased.

• Periodical: Advanced Materials Research (Volumes 295-297)
• Pages: 1532-1535
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.295-297.1532
• Online since: July 2011
• Authors: Bao Hua Ji
• Keywords: As-Spun Fibers, Die-Swell Ratio, Porosity, Skin-Core Microstructure, Spin Orientation

References

[1] J.M. Peng, Y.L. Su, W.J. Chen, Q. Shi: Ind. Eng. Chem. Res. Vol. 49 (2010), p.4858

[2] G.Q. Peng, X.H. Zhang Y.F. Wen: J. Macromole. Sci., Part B: Physics, Vol. 47 (2008), p.1130

[3] C. E. Moss, M. F. Butler, M. Muller, R. E. Cameron: J Appl Polym Sci, Vol.83 (2002), p.2799

[4] F.Z. Ren C.X. Lv,X.Y. Liang, G.P. Wu,F. He: New Carbon Mater Vol. 19 (2004), p.268

[5] R.J. Smiley, W.N. Delgass: J. Mater. Sci. Vol. 28 (1993), p.3601

[6] C. E. Moss, M. F. Butler, M. Muller, R. E. Cameron: J. Appl. Polym. Sci. Vol. 83 (2002), p.2799

[7] J. P. Bell and J. H. Dumbleton: Text. Res. J. Vol. 41 (1971), p.196

[8] JW Gao, FS Zhang, QY Zhang, BX Wu: Polymer Material Modern Testing Technology (Beijing Aerospace University Press, Beijing 1994)

[9] C.H. Tang, W. Zhang, X.Y. Cao, J.Liu, G.Wu: China Plast. Ind. Vol. 32 (2004), p.55

[10] Paul, D. R. J Appl Polym Sci Vol. 13 (1969), p.825

[11] Liu, W. Ruland. Macromolecules Vol.26 (1993), p.3030

[12] Rachel J. Hobson, Alan H. Windle. Macromolecules, Vol.26 (1993), p.6903

[13] LH Xu, W Zhang,YJ Tong,XL Wang,GY Wu. New Carbon Mater. Vol. 12 (1997), p.31

[14] C.K. Liu, John A. Cuculo: J. Polym. Sci.: Part B: Polymer Physics, Vol. 27 (1989), p.2493

[15] G.Caneba, D. Soong: Macromolecules, Vol. 18 (1985), p.2538
