For Libraries For Publication Open Access Downloads About Us Contact Us
Paper Titles
The Addition of a Nano-SiO2 on the Tribological Properties of PTFE Composite
p.511
Quick Spherodizing in GCr15 Steel by Mechanism of Divorced Eutectoid
p.515
Process Characterization of 40Cr Steel Roller by Laser Surface Alloying with Rare Earths Oxide Y2O3
p.520
Preparation of Pt Colloids via a Wet-Chemical Method for Methanol Sensor
p.527
Synthesis and Characterization of Nanosized Phpsphor SrS:Eu2+,Sm3+ by a Hydrothermal Process
p.531
Test Research on Preparation of New Wall Material with Iron Tailings in Tangshan Area
p.535
Thermally Stable Blue NaBaPO4: Eu2+ Phosphor Synthesized by Combustion Method
p.539
The Research on Preparation and Application of a Silicon-Based Efficient Coagulant
p.543
Synthesis and Luminescence Properties of Red Emitting Phosphors Na3CaB5O10:Eu3+
p.547

Synthesis and Characterization of Nanosized Phpsphor SrS:Eu2+,Sm3+ by a Hydrothermal Process

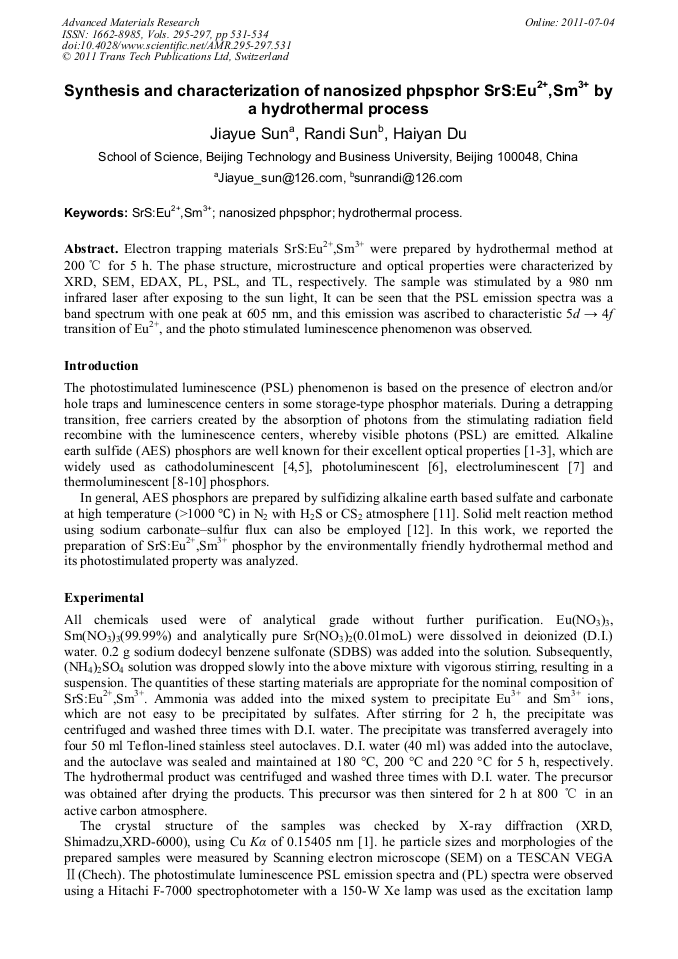

Article Preview

Abstract:

Electron trapping materials SrS:Eu2+,Sm3+ were prepared by hydrothermal method at 200 °C for 5 h. The phase structure, microstructure and optical properties were characterized by XRD, SEM, EDAX, PL, PSL, and TL, respectively. The sample was stimulated by a 980 nm infrared laser after exposing to the sun light, It can be seen that the PSL emission spectra was a band spectrum with one peak at 605 nm, and this emission was ascribed to characteristic 5d → 4f transition of Eu2+, and the photo stimulated luminescence phenomenon was observed.

You might also be interested in these eBooks
Manufacturing Science and Technology, AEMT2011 View Preview

Info:

Periodical:

Advanced Materials Research (Volumes 295-297)

Pages:

531-534

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.295-297.531

Citation:

Cite this paper

Online since:

July 2011

Authors:

Jia Yue Sun, Ran Di Sun, Hai Yan Du

Keywords:

Hydrothermal Process, Nanosized Phosphor, Sr S: Eu2+, Sm3+

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

© 2011 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

References

[1] W.W Jiang, Z. Xu and X. Zhang: Mater. Lett. Vol. 61( 2007), pp.1042-1045.

Google Scholar

[2] V.G Kravets: Optical Materials.Vol. 16 (2001), pp.369-375.

Google Scholar

[3] X.X Duan: Journal of rare earths. Vol. 27 (2009), pp.43-46.

Google Scholar

[4] W.Lehmann and F.M. Ryan: J. Electrochem. Soc. Vol. 118 (1971), pp.477-482.

Google Scholar

[5] M.Pham-Thi: J. Alloys Compd. Vol. 225 (1995), pp.547-551.

Google Scholar

[6] N.Singh, G.L. Marwaha, V.K. Mathur: Phys. Status Solidi A. Vol. 66 (1981), pp.761-765.

Google Scholar

[7] C.J. Summers, B.K. Wagner and W.Tong, et al: J.Crys.Growth. Vol. 214-215 (2000), pp.918-925

Google Scholar

[8] S.P. Lochab, P.D. Sahare and R.S. Chauhan, et al: J. Phys. D: Appl. Phys. Vol. 40 (2007), pp.1343-1350.

Google Scholar

[9] V.Kumar, R.Kumar and S.P. Lochab, et al: Effects Defects Solids. Vol. 161(2006), pp.479-485.

Google Scholar

[10] V.Kumar, H.C. Swart and O.M. Ntaeaborwa, et al: Opt. Mater. Vol. 32 (2009), pp.164-168.

Google Scholar

[11] H.Ruan, F.X. Gan and H.Xu, et a1: Mater. Sci. Eng., A. Vol. 1376(2000), p.73．

Google Scholar

[12] C.F. Guo, D. Huang and Q. Sub: Mater. Sci. Eng., B. Vol. 130 (2006), pp.189-193

Google Scholar

[13] J.Y. Sun and H.Y.Du. Solid Lumin. Mater. Beijing: Chemical Industry Press, 2005. In Chinese.

Google Scholar

© 2025 Trans Tech Publications Ltd. All rights are reserved, including those for text and data mining, AI training, and similar technologies. For open access content, terms of the Creative Commons licensing CC-BY are applied.
Scientific.Net is a registered trademark of Trans Tech Publications Ltd.
