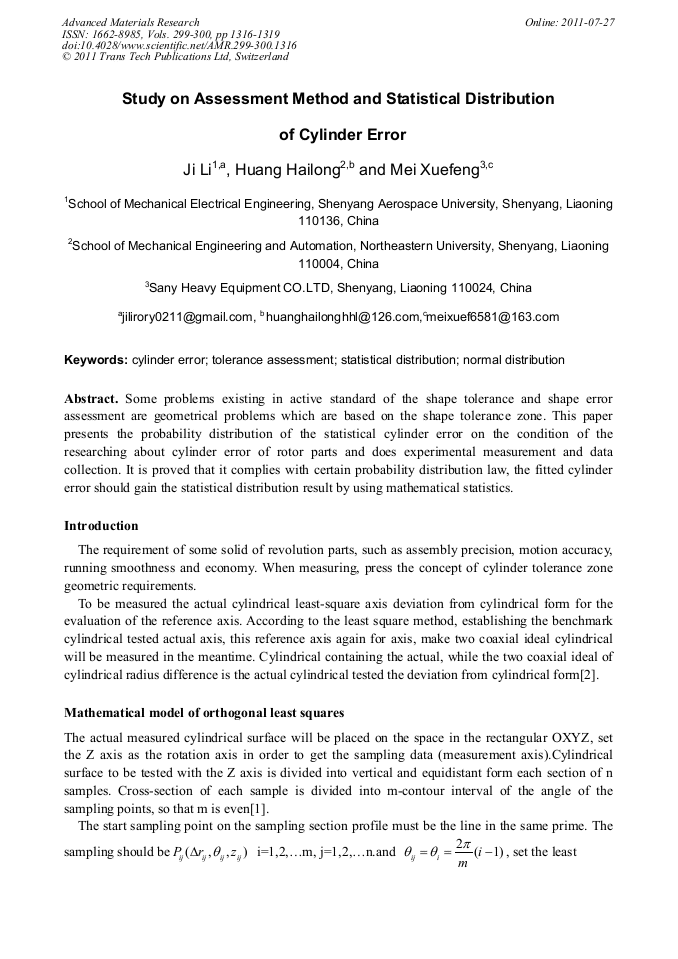

Study on Assessment Method and Statistical Distribution of Cylinder Error

Abstract:

Some problems existing in active standard of the shape tolerance and shape error assessment are geometrical problems which are based on the shape tolerance zone. This paper presents the probability distribution of the statistical cylinder error on the condition of the researching about cylinder error of rotor parts and does experimental measurement and data collection. It is proved that it complies with certain probability distribution law, the fitted cylinder error should gain the statistical distribution result by using mathematical statistics.

• Periodical: Advanced Materials Research (Volumes 299-300)
• Pages: 1316-1319
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.299-300.1316
• Online since: July 2011
• Authors: Li Ji, Hai Long Huang, Xue Feng Mei
• Keywords: Cylinder Error, Normal Distribution, Statistical Distribution, Tolerance Assessment

References

[1] Yu Zhang, Ping Liu: Geometric measurement tolerance and measurement technology(Shenyang: Northeasten University Press, China 2006), pp.71-77.

[2] Yu Zhang, Hongchao Zhang:. Engineering Design Vol. 4(2000), p.8.

[4] Georg Henzold: Geometrical Dimensioning and Tolerancing for Design, Manufacturing and Inspection (Elsevier, UK 2009), p.264.

DOI: 10.1016/b978-0-12-824061-8.00014-1

[5] Xian-Fang Li, Xu-Long Peng: J Elast Vol. 96(2009), p.81.
