Deformation Behaviour of AZ31 Magnesium Alloy Sheets Produced by Twin-Roll Casting and Sequential Hot Rolling

Yan Dong Yu; Peng Jiang; Chao Li; Kai Lin

doi:10.4028/www.scientific.net/AMR.299-300.368

Paper Titles

Research of Shrinkage Process for Fe-0.18%C Cast Ingot during Solidification
p.350

The Effect of Mixture Parameter on the Properties of SCC
p.355

Microstructure Evolution of Cold Rolled Hot Dip Galvanized Dual-Phase Steel during Continuous Heating Process
p.359

Experimental Investigation of Formability Enhancement Using Hydraulic Counter Pressure Assisted Warm Deep Drawing
p.364

Deformation Behaviour of AZ31 Magnesium Alloy Sheets Produced by Twin-Roll Casting and Sequential Hot Rolling
p.368

Effects of Al Addition on the Microstructure of Fe-Mn-Si Ultra-Fine Grain Steel Welded Heat Affected Zone
p.372

Micronano Structure and Mechanics Behavior of Mosquito’s Proboscis Biomaterials with Applications to Microneedle Design
p.376

Semi-Solid Billets of AZ91D Magnesium Alloy Prepared by Forward Extrusion/Equal-Channel Angular Pressing
p.380

In Situ Observation on Fracture Behavior of 800MPa Grade Dual-Phase Steel
p.385

HomeAdvanced Materials ResearchAdvanced Materials Research Vols. 299-300Deformation Behaviour of AZ31 Magnesium Alloy...

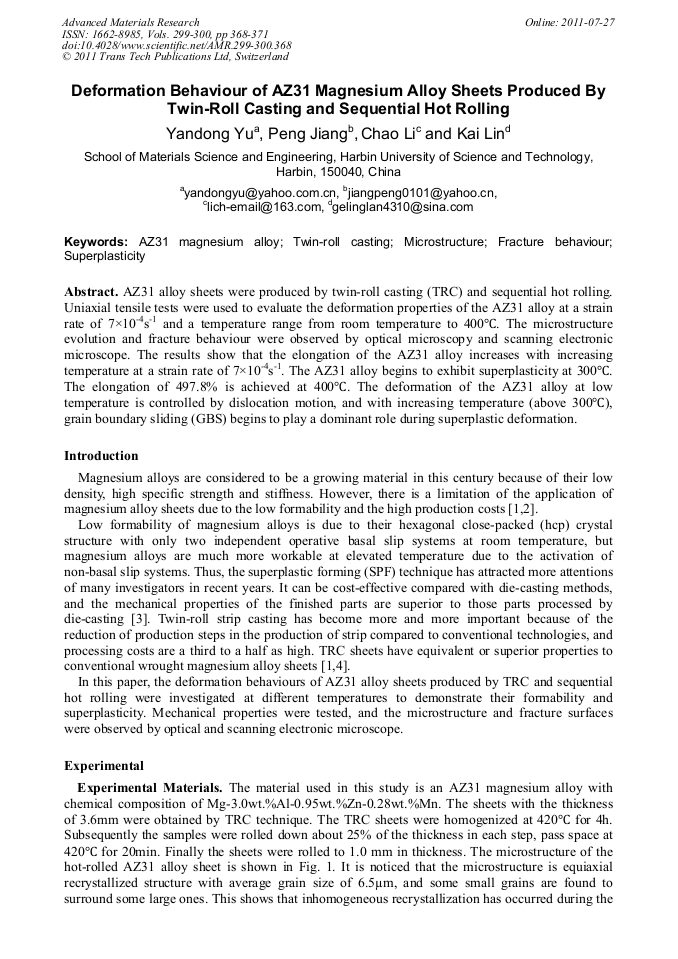

Deformation Behaviour of AZ31 Magnesium Alloy Sheets Produced by Twin-Roll Casting and Sequential Hot Rolling

Abstract:

AZ31 alloy sheets were produced by twin-roll casting (TRC) and sequential hot rolling. Uniaxial tensile tests were used to evaluate the deformation properties of the AZ31 alloy at a strain rate of 7×10^-4s^-1 and a temperature range from room temperature to 400°C. The microstructure evolution and fracture behaviour were observed by optical microscopy and scanning electronic microscope. The results show that the elongation of the AZ31 alloy increases with increasing temperature at a strain rate of 7×10^-4s^-1. The AZ31 alloy begins to exhibit superplasticity at 300°C. The elongation of 497.8% is achieved at 400°C. The deformation of the AZ31 alloy at low temperature is controlled by dislocation motion, and with increasing temperature (above 300°C), grain boundary sliding (GBS) begins to play a dominant role during superplastic deformation.
