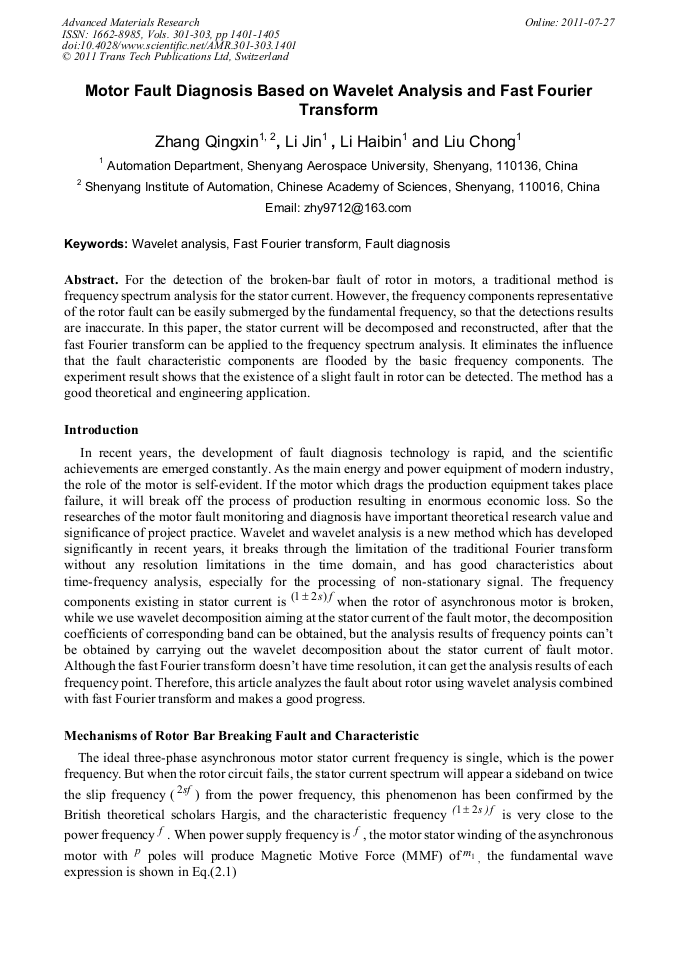

Motor Fault Diagnosis Based on Wavelet Analysis and Fast Fourier Transform

Abstract:

For the detection of the broken-bar fault of rotor in motors, a traditional method is frequency spectrum analysis for the stator current. However, the frequency components representative of the rotor fault can be easily submerged by the fundamental frequency, so that the detections results are inaccurate. In this paper, the stator current will be decomposed and reconstructed, after that the fast Fourier transform can be applied to the frequency spectrum analysis. It eliminates the influence that the fault characteristic components are flooded by the basic frequency components. The experiment result shows that the existence of a slight fault in rotor can be detected. The method has a good theoretical and engineering application.

• Periodical: Advanced Materials Research (Volumes 301-303)
• Pages: 1401-1405
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.301-303.1401
• Online since: July 2011
• Authors: Qing Xin Zhang, Jin Li, Hai Bin Li, Chong Liu
• Keywords: Fast Fourier Transform (FFT), Fault Diagnosis, Wavelet Analysis

References

[1] Yan Qiurong, Liu xin, Yin Jianguo. Vibration Signal Characteristics Research of Power transformer Based on Wavelet Theory[J]. High-voltage Technology, 2007, 33 ( l): 165~168.

[2] OLYMPIADA A S, MARIA G I. Induction Motors' Faults Detectionand Diagnosis by Using Dedicated Software [J]. Journal of Materials Processing Technology, 2007, 181(1): 313~317.

DOI: 10.1016/j.jmatprotec.2006.03.041

[3] Wu Guifeng, Zhai Yuqing, Chen Hong, ect. Fault Diagnosis of Electrical Machine Vibration Based on Wavelet Neural Network [J]. Control Engineering, 2004, 11(2): 152~154.

[4] Liu Yaiun. FauIt Diagnosis of Motor Based on WaveIet and NeuraI Networks [D]. Tai Yuan North University of China. (2009).

[5] Tian Muling, Wang Xiaoling. Motor Fault Diagnosis in Wavelet Analysis and Wavelet Function Selected. Coal Mine Machinery. 2007, 28, (5)：176~718.

[6] Huang Qungu, Ren Zhen. Fault Signal Analysis in Power System Based on Similar Wavelet Transforms. Journal of South China University of Technology, 2001, 29(5), p.5~9.

[7] HAJI M, TOLIYAT H A. Pattern recognition: A Technique for Induction Machines Rotor Fault Detection Eccentricity and Broken Barfault[C]. Proceedings of the 2001 IEEE Industry Applications Conference. Chicago, 2001: 1572~1578.

DOI: 10.1109/ias.2001.955745

[8] Chao. K. R, Lang. J. H and Umans. S. D. Detection of Broken Rotors Bars in Induction Motors Using State and Parameter Estimation. IEEE Trans. On Industry Application, 2002: 702~709.

DOI: 10.1109/28.137460

[9] Zhu Qibin. Study On Failure Signal Processing of Induction Motor With Wavelet Theory. [D] Shen Yang: Northeast University, (2005).

[10] Han Tian, Yin Zhongjun, Yang Shaowei. Discussed on Motor Rotor Fault Diagnosis Method [J]. Power System and Automatic Journal, (2009).

[11] Leng Junfa, Jin Shuangxi, Li Zhen. Fault Diagnosis for Motor Based on Wavelet Packet Analysis[J]. Big Motor Technology. 2003, 5.
