Study on the Factors Influencing Spreading Resistance of Heat Sinks

Abstract:

The spreading resistance is a very important parameter in the applications of heat sink. The design of electronic devices will fail without considering the influence of the spreading resistance. In this paper, a simple thermal model was simulated by Computational Fluid Dynamics software. Some factors, which have great influence on the spreading resistance, have been analyzed. The spreading resistance decreases significantly with the increasing of the area ratio between the heat source and the base-plate. While the ratio being 1, the spreading resistance reaches the mix value. The greater the thermal conductivity of heat sink, the lower the spreading resistance. With the increasing of the thickness of base-plate, the spreading resistance reduces. However, if the thickness exceeds the critical value, the spreading resistance will increase. And the spreading resistance reaches the mix value while the centers of heat source and the base-plate are overlapped.

You might also be interested in these eBooks

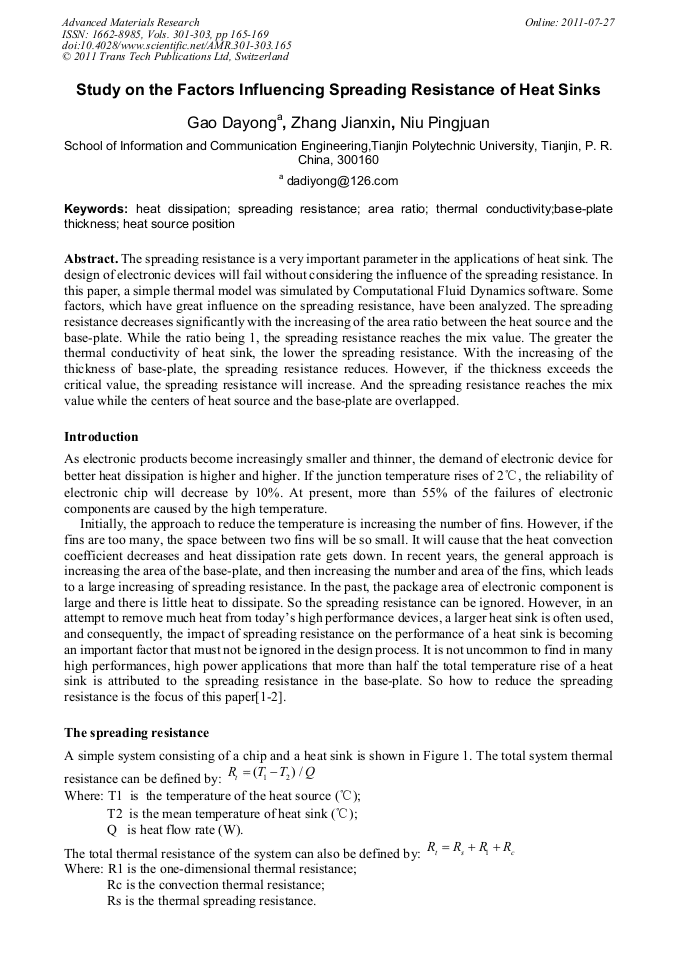

View Preview

Info:

Periodical:

Advanced Materials Research (Volumes 301-303)

Pages:

165-169

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.301-303.165

Citation:

Cite this paper

Online since:

July 2011

Authors:

Da Yong Gao, Jian Xin Zhang, Ping Juan Niu

Keywords:

Area Ratio, Base-Plate Thickness, Heat Dissipation, Heat Source Position, Spreading Resistance, Thermal Conductivity (TC)

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] Ma,H.B. and Peterson, G.P., The influence of the Thermal Conductivity on the Heat Transfer Performance in a Heat Sink, ASME, J. Electronic Packing, 124, pp.1-6, (2002).

Google Scholar

[2] J. R. Culham, M. M. Yovanovich, and Y. S. Muzychka, Spreading Resistance of Isoflux Rectangles and Strips on Compound Flux Channels, J. Thermophysics and heat Transfer, 13, No 1 pp.495-500, (1999).

DOI: 10.2514/2.6467

Google Scholar

[3] S. Lee, Calculating Spreading Resistance in Heat Sinks, Electronics Cooling, Vol. 4, No. 1 pp.30-33, (1998).

Google Scholar

[4] S. Lee, S. Song, V. Au, and K.P. Moran, Constriction/Spreading Resistance Model for Electronic Packaging, Proceedings of the 4th ASME/JSME Thermal Engineering Joint Conference, Vol. 4, pp.199-206, (1995).

Google Scholar

[5] S. Song, S. Lee, and V. Au, Closed Form Equation for Thermal Constriction/Spreading Resistances with Variable Resistance Boundary Condition, Proceedings of the 1994 IEPS Conference, pp.111-121, (1994).

Google Scholar
