Verifying and Simulating of the Novel Analytical Method of the Steady-State Error for Nonunity Feedback Control Systems

Abstract:

Traditionally, the first step to analyze the steady-state error of nonunity feedback control system is to convert the system into an equivalent unity feedback control system, and calculate the steady-state error by using the concept of type number for unity feedback control system. In 2011, Mou is based on the concept of old type number and the definition of new steady-state error functione(t)=(1/K_H)r(t)-y(t) by Kuo to offer the method for calculating the steady-state error of nonunity feedback control system. In this paper, three typical examples will be analyzed by the calculation of step response and by the simulation of Matlab. Therefore, we can prove that the definition of new steady-state error function e(t)=(1/K_H)r(t)-y(t) by Kuo and the concept of old type number are useful to solve the steady-state error of nonunity feedback control system.

You might also be interested in these eBooks

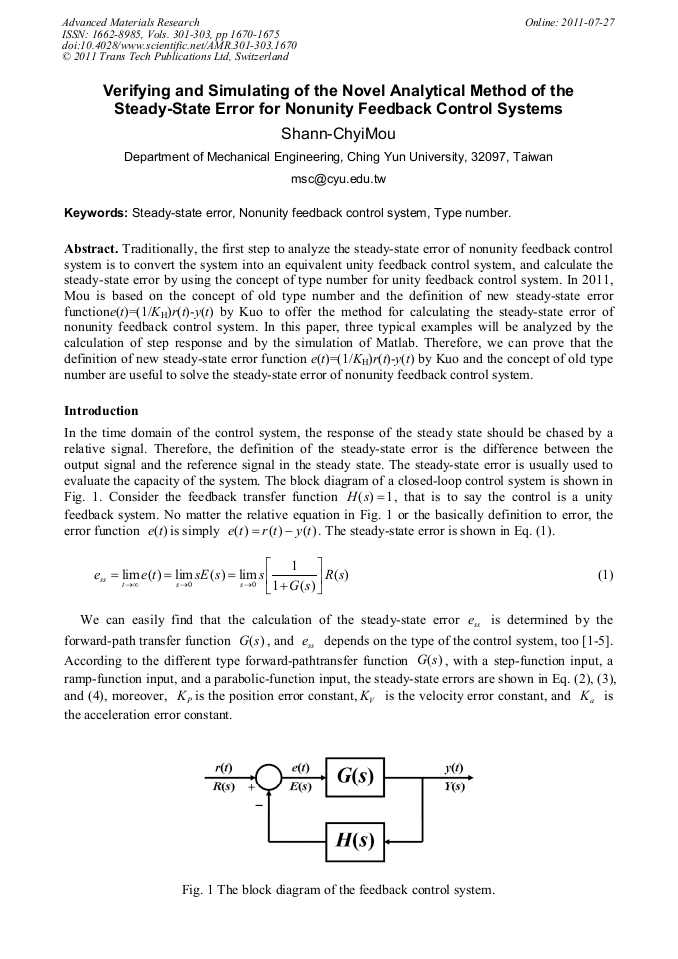

View Preview

Info:

Periodical:

Advanced Materials Research (Volumes 301-303)

Pages:

1670-1675

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.301-303.1670

Citation:

Cite this paper

Online since:

July 2011

Authors:

Shann Chyi Mou

Keywords:

Nonunity Feedback Control System, Steady-State Error, Type Number

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] B. C. Kuo and F. Golnaraghi: Automatic Control Systems, (John Wiley & Sons, 2003).

Google Scholar

[2] G.F. Franklin, J. D. Powell and A. Emami-Naeini: Feedback Control of Dynamic Systems, (Prentice-Hall, 2002).

Google Scholar

[3] K. Ogata: Modern Control Engineering, (Prentice-Hall, 2002).

Google Scholar

[4] R. C. Drof and R. H. Bishop: Modern Control Systems, (Prentice-Hall, 2001).

Google Scholar

[5] N. S. Nise: Control Systems Engineering, (John Wiley & Sons, 2004).

Google Scholar

[6] S.C. Mou: Proceedings of 2011 International Conference on Earth Sciences and Engineering(2011).

Google Scholar

[7] C.C. Hsieh andS.C. Mou: Verifying and Analyzing the Steady-State Error for Nonunity Feedback Control System by Type Number(Ching Yun University, Taoyuan 2007).

Google Scholar
