Coating of Electrode by Myristic Acid via Microwave Reaction

Wen Jun Chen; Chi Bin Gui; Ji Sun

doi:10.4028/www.scientific.net/AMR.306-307.544

Paper Titles

Investigation of Cleavage Fracture Behavior in Notched Specimens of a Low Alloy Hot Rolled Steel 16MnR
p.523

Effect of MgO on Structure and Properties of CaO-Al₂O₃-SiO₂ Glass System
p.531

Study on Direct Annealing Process of Hot-Rolled Plate
p.535

Semisolid Die-Casting Process of Mg-20Al-0.8Zn Magnesium Alloy
p.539

Coating of Electrode by Myristic Acid via Microwave Reaction
p.544

Effect of Solution Treatment on Microstructures and Mechanical Properties of Centrifugal Casting Al-Cu Alloy
p.548

TiN Modified Layer on the 20CrNiMo Steel Surface by Needle–Shape Cathode Glow Plasma Discharging
p.553

Effect of Al Content on the Microstructure and Property of TiC/Al Ceramic Matrix Coating Deposited by Laser Cladding on Ti-6Al-4V Alloy
p.557

Influence of Ru on the Microstructure of Ni-Base Single Crystal Superalloys
p.562

HomeAdvanced Materials ResearchAdvanced Materials Research Vols. 306-307Coating of Electrode by Myristic Acid via...

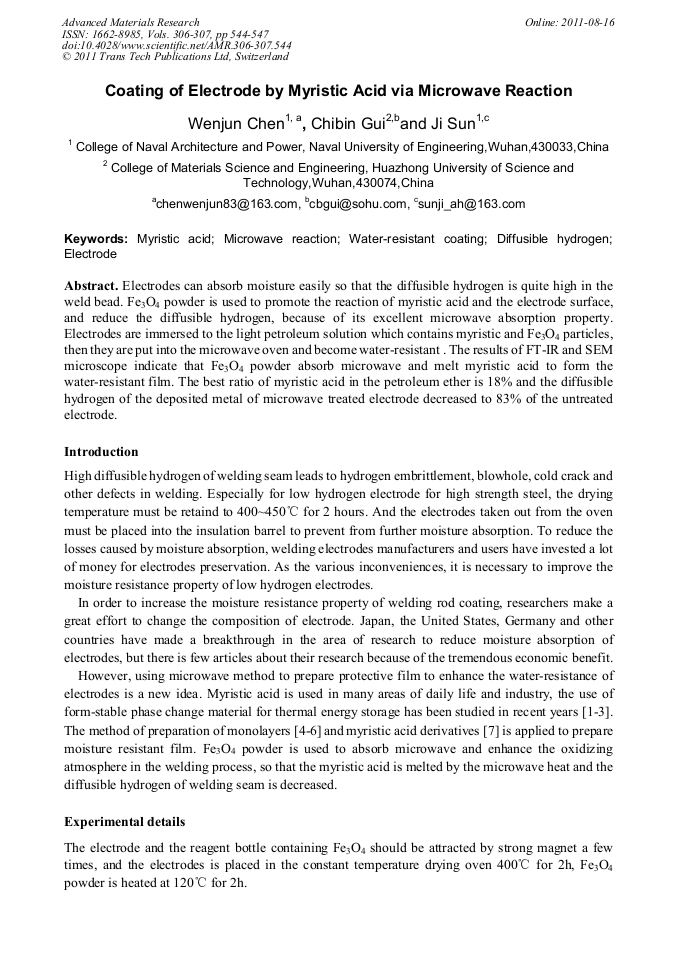

Coating of Electrode by Myristic Acid via Microwave Reaction

Abstract:

Electrodes can absorb moisture easily so that the diffusible hydrogen is quite high in the weld bead. Fe₃O₄ powder is used to promote the reaction of myristic acid and the electrode surface, and reduce the diffusible hydrogen, because of its excellent microwave absorption property. Electrodes are immersed to the light petroleum solution which contains myristic and Fe₃O₄ particles, then they are put into the microwave oven and become water-resistant . The results of FT-IR and SEM microscope indicate that Fe₃O₄ powder absorb microwave and melt myristic acid to form the water-resistant film. The best ratio of myristic acid in the petroleum ether is 18% and the diffusible hydrogen of the deposited metal of microwave treated electrode decreased to 83% of the untreated electrode.
