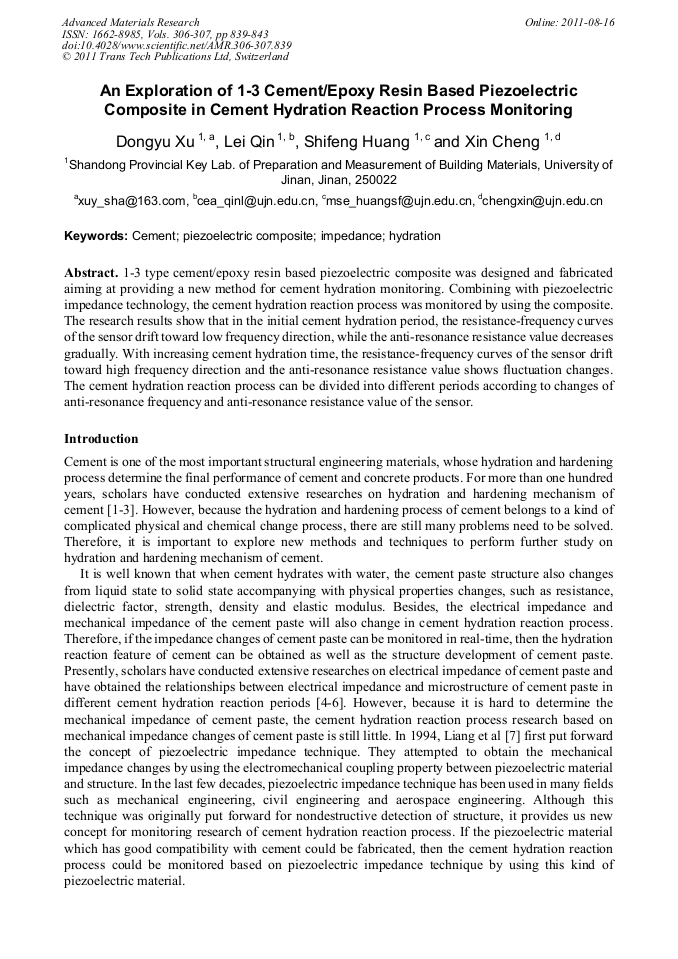

An Exploration of 1-3 Cement/Epoxy Resin Based Piezoelectric Composite in Cement Hydration Reaction Process Monitoring

Abstract:

1-3 type cement/epoxy resin based piezoelectric composite was designed and fabricated aiming at providing a new method for cement hydration monitoring. Combining with piezoelectric impedance technology, the cement hydration reaction process was monitored by using the composite. The research results show that in the initial cement hydration period, the resistance-frequency curves of the sensor drift toward low frequency direction, while the anti-resonance resistance value decreases gradually. With increasing cement hydration time, the resistance-frequency curves of the sensor drift toward high frequency direction and the anti-resonance resistance value shows fluctuation changes. The cement hydration reaction process can be divided into different periods according to changes of anti-resonance frequency and anti-resonance resistance value of the sensor.

• Periodical: Advanced Materials Research (Volumes 306-307)
• Pages: 839-843
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.306-307.839
• Online since: August 2011
• Authors: Dong Yu Xu, Lei Qin, Shi Feng Huang, Xin Cheng
• Keywords: Cement, Hydration, Impedance, Piezoelectric Composite

References

[1] K. O. Kjellsen, R. J. Detwiler and O. E. Gjorv: Cem. Conc. Res Vol. 20 (1990), p.308.

[2] N. Gimet, D. Fargeot and J. M. Gaillard: J. Mater. Sci. Lett Vol. 18 (1999), p.1335.

[3] P. M. Wang, S. X. Feng and X. P. Liu: J. Buil. Mater Vol. 8 (2005), p.646.

[4] W. J. McCarter: Cem Concr Res Vol. 24(1994), p.1097.

[5] Y. Zhang and M. L. Shi: J. Buil. Mater Vol. 3 (2000), p.109.

[6] P. Gu, Z. Z. Xu, P. Xie and J. J. Beaudoin: Cem. Concr. Res Vol. 23 (1993), p.531.

[7] C. Liang, F. P. Sun and C. A. Rogers: Proc. SPIE Vol. 2192 (1994), p.232.

[8] Z. J. Li, D. Zhang and K. R. Wu: J. Am. Ceram. Soc Vol. 85 (2002), p.305.

[9] A. Chaipanich: Curr. Appl. Phys Vol. 7 (2007), p.537.

[10] D. Y. Xu, X. Cheng and S. F. Huang: Curr. Appl. Phys Vol. 9 (2009), p.816.

[11] X. Cheng, D. Y. Xu, L. C. Lu, S. F. Huang and M. H. Jiang: Mater. Chem. Phys Vol. 121 (2010), p.63.

[12] Z. S. Lin: Inorganic nonmetal material technology (Wuhan University of Technology Press, Wuhan 1999).
