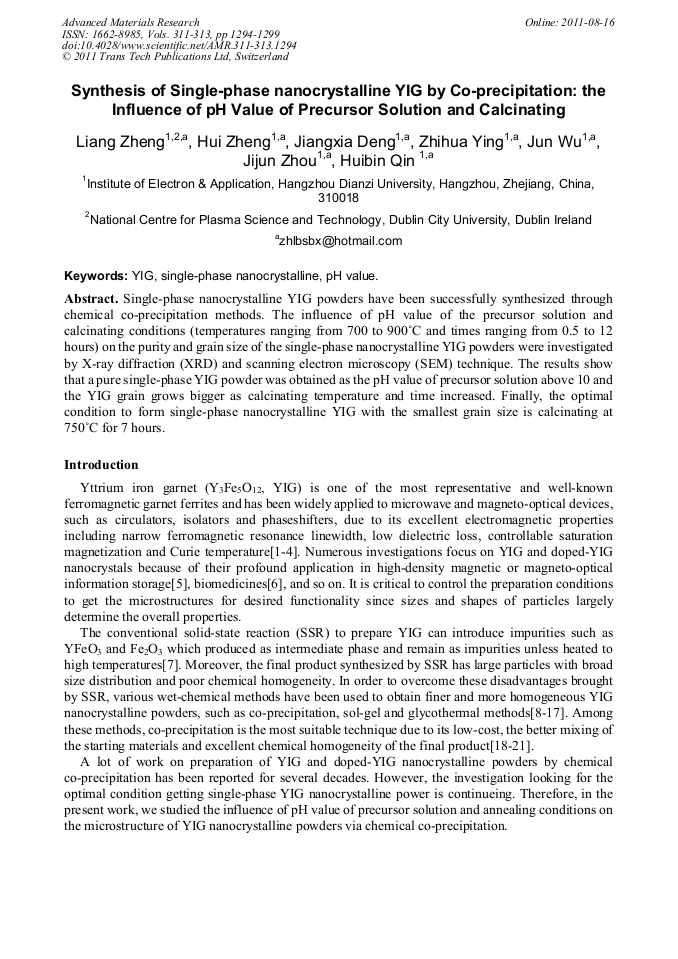

Synthesis of Single-Phase Nanocrystalline YIG by Co-Precipitation: The Influence of pH Value of Precursor Solution and Calcinating

Abstract:

Single-phase nanocrystalline YIG powders have been successfully synthesized through chemical co-precipitation methods. The influence of pH value of the precursor solution and calcinating conditions (temperatures ranging from 700 to 900°C and times ranging from 0.5 to 12 hours) on the purity and grain size of the single-phase nanocrystalline YIG powders were investigated by X-ray diffraction (XRD) and scanning electron microscopy (SEM) technique. The results show that a pure single-phase YIG powder was obtained as the pH value of precursor solution above 10 and the YIG grain grows bigger as calcinating temperature and time increased. Finally, the optimal condition to form single-phase nanocrystalline YIG with the smallest grain size is calcinating at 750°C for 7 hours.

• Periodical: Advanced Materials Research (Volumes 311-313)
• Pages: 1294-1299
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.311-313.1294
• Online since: August 2011
• Authors: Liang Zheng, Hui Zheng, Jiang Xia Deng, Zhi Hua Ying, Jun Wu, Ji Jun Zhou, Hui Bin Qin
• Keywords: pH Value, Single-Phase Nanocrystalline, Yttrium Iron Garnet (YIG) Sphere

References

[1] V. R. K. Murthy, S. Sundaram, B. Viswanathan, MicrowaveMaterials, Narosa Publishing House, India, 1993.

[2] R. E. Collin, Foundations For Microwave Engineering, second ed., McGraw-Hil New York, 1994.

[3] Y. H. Jeon, J.W. Lee, J.H. Oh, J.C. Lee, S.C. Choi, Phys. Status Solidi A 201 (2004) 1893–1896.

[4] T. Y. Kim, Y. Yamazaki, T. Hirano, Phys. Status Solidi B 241 (2004) 1601–1604.

[5] S. Taketomi, C. M. Sorensen, K. J. Klabunde, J. Magn. Magn. Mater. 222 (2000) 54.

[6] F. Grasset, S. Mornet, A. Demourgues, J. Portier, J. Bonnet, A. Vekris, E. Duguet, J. Magn. Magn. Mater. 234 (2001) 409.

DOI: 10.1016/s0304-8853(01)00386-9

[7] P. Vaqueiro, M. A. Lopez-Quintela, J. Rivas, J.M. Greneche, J. Magn. Magn. Mater. 169 (1997) 56.

[8] M. Jafelicci Jr., R. H. M. Godoi, J. Magn. Magn. Mater. 226–230 (2001) 1421.

[9] M. M. Rashad, M. M. Hessien, A. Ei-Midany, I. A. Ibrahim, J. Magn. Magn. Mater. 321 (2009) 3752.

[10] M. Risti ´ c, I. Nowik, S. Popovi ´ c, I. Felner, S. Musi ´ c, Mater. Lett. 57 (2003) 2584.

[11] F. R. Lamastra, A. Bianco, F. Leonardi, G. Montesperelli, F. Nanni, G. Gusmano,Mater. Chem. Phys. 107 (2008) 274.

[12] P. Vaqueiro, M. A. López-Quintela, J. Rivas, J. Mater. Chem. 7 (1997) 501.

[13] P. Vaqueiro, M. A. López-Quintela, Chem. Mater. 9 (1997) 2836.

[14] M. Pal, D. Chakravorty, Physica E 5 (2000) 200.

[15] R. D. Sáncheza, C. A. Ramos, J. Rivas, P. Vaqueiro, M. A. López-Quintela, Physica B 354 (2004) 104.

[16] Y. S. Cho, V.L. Burdick, V.R.W. Amarakoon, J. Am. Ceram. Soc. 80 (1997) 1605.

[17] S. Hosseini Vajargah, H. R. Madaah Hosseini, Z. A. Nemati, J. Alloy Compd. 430 (2007) 339.

[18] Y. J. Wu, H. P. Fu, R. Y. Hong, Y. Zheng, D. G.Wei, J. Alloys Compd. 470 (2009) 497.

[19] H. P. Fu, R.Y. Hong, Y.J. Wu, G.Q. Di, B. Xu, Y. Zheng, D.G. Wei, J. Magn. Magn. Mater. 320 (2008) 2584.

[20] M.M. Rashad, M. Radwan, M.M. Hessien, J. Alloys Compd. 453 (2008) 304.

[21] M.M. Hessien, M.M. Rashad, K. El-Barawy, J. Magn. Magn. Mater. 320 (2008)336.
