Microstructure Evolution and Precipitation Behavior of a High Nitrogen 15Cr Martensitic Stainless Steel during Tempering

Xiao Ping Ma; Li Jun Wang; Bin Qin; Chun Ming Liu; Sundaresa V. Subramanian

doi:10.4028/www.scientific.net/AMR.311-313.910

Paper Titles

Experimental Research on the Novel Process of Iron Ore Direct Reduction by Coal Gas
p.891

Research on Industrial Shape Meter and its Application
p.898

Shape Detecting and Shape Control of Cold Rolling Strip
p.902

Stress Field Numerical Simulation of the Inclusions in Large Rudder Arm Steel Casting
p.906

Microstructure Evolution and Precipitation Behavior of a High Nitrogen 15Cr Martensitic Stainless Steel during Tempering
p.910

A Study on Modified Maximum Force Criterion to Predict Forming Limit Curve of Stainless Steel Sheet
p.916

Two-Section Model for Adsorption of Tinidazole on Carbon Steel Surface in 3%HCl Solution
p.922

Mechanism of Work Hardening of Mn13 after Conventional Cold Rolling
p.927

Effect of Vanadium on Microstructure and Mechanical Properties of Air Cooled Medium Carbon High Silicon Bainite Steels
p.931

HomeAdvanced Materials ResearchAdvanced Materials Research Vols. 311-313Microstructure Evolution and Precipitation...

Microstructure Evolution and Precipitation Behavior of a High Nitrogen 15Cr Martensitic Stainless Steel during Tempering

Abstract:

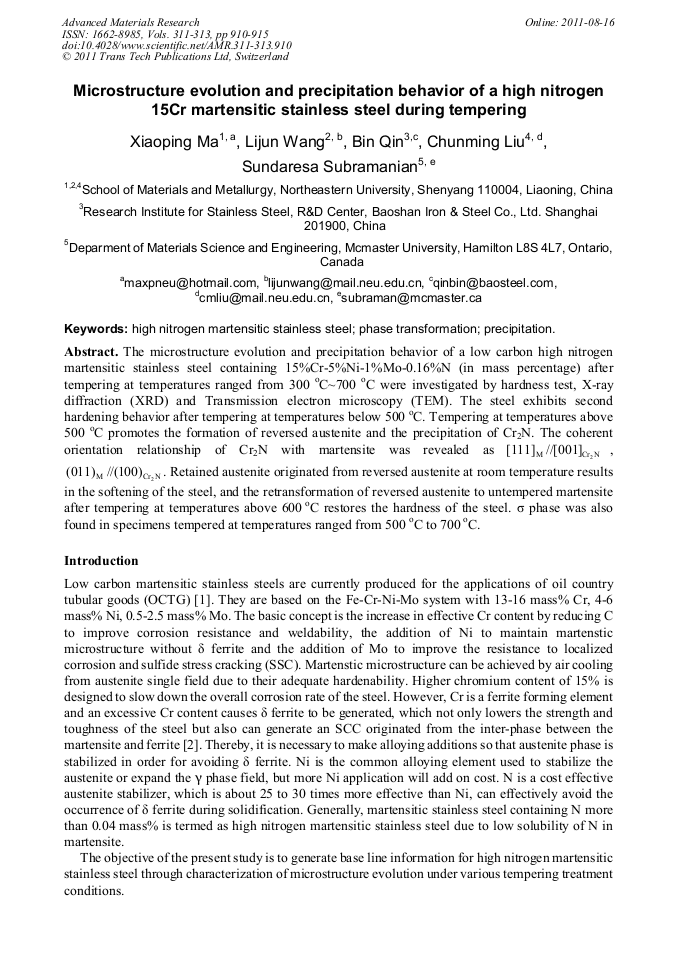

The microstructure evolution and precipitation behavior of a low carbon high nitrogen martensitic stainless steel containing 15%Cr-5%Ni-1%Mo-0.16%N (in mass percentage) after tempering at temperatures ranged from 300 °C~700 °C were investigated by hardness test, X-ray diffraction (XRD) and Transmission electron microscopy (TEM). The steel exhibits second hardening behavior after tempering at temperatures below 500 °C. Tempering at temperatures above 500 °C promotes the formation of reversed austenite and the precipitation of Cr₂N. The coherent orientation relationship of Cr₂N with martensite was revealed as , . Retained austenite originated from reversed austenite at room temperature results in the softening of the steel, and the retransformation of reversed austenite to untempered martensite after tempering at temperatures above 600 °C restores the hardness of the steel. σ phase was also found in specimens tempered at temperatures ranged from 500 °C to 700 °C.

You might also be interested in these eBooks

Advanced Materials and Processes: ADME 2011

View Preview

Info:

Periodical:

Advanced Materials Research (Volumes 311-313)

Pages:

910-915

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.311-313.910

Citation:

Cite this paper

Online since:

August 2011

Authors:

Xiao Ping Ma, Li Jun Wang, Bin Qin, Chun Ming Liu, Sundaresa V. Subramanian

Keywords:

High Nitrogen Martensitic Stainless Steel, Phase Transformation, Precipitation

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] C.P. Linne, F. Blanchard, G.C. Guntz and B.J. Orlans-Joliet: Corrosion Vol. 97 (1997), Paper No. 28

Google Scholar

[2] D. Carrouge, H.K.D.H. Bhadeshia and P. Woollin: Sci. Technol. Weld. Joining Vol. 9 (2003), p.377

Google Scholar

[3] X. Ma, L. Wang and C. Liu: J. Mater. Metall. Vol. 8 (2009), p.168 "In Chinese"

Google Scholar

[4] D.S. Leem, Y.D. Leeb, J.H. Junc, C.S. Choi, Scripta Mater. Vol. 45 (2001), p.767

Google Scholar

[5] S. Hamano, T. Shimizu and T. Noda: Mater. Sci. Forum Vol. 539-543 (2007), p.4975

Google Scholar

[6] M.A. Dawood, I.S.E. Mahallawi, M.E. Abd, et al: Mater. Sci. Technol. Vol. 20 (2004), p.363

Google Scholar

[7] E.S. Park, D.K. Yoo, J.H. Sung, C.Y. kang, J. Lee and J.H. Sung: Met. Mater. Int. Vol. 6 (2004), p.521

Google Scholar

[8] P.D. Bilmes, M. Solari and C.L. Llorente: Mater. Charact. Vol. 46 (2001), P. 285

Google Scholar
