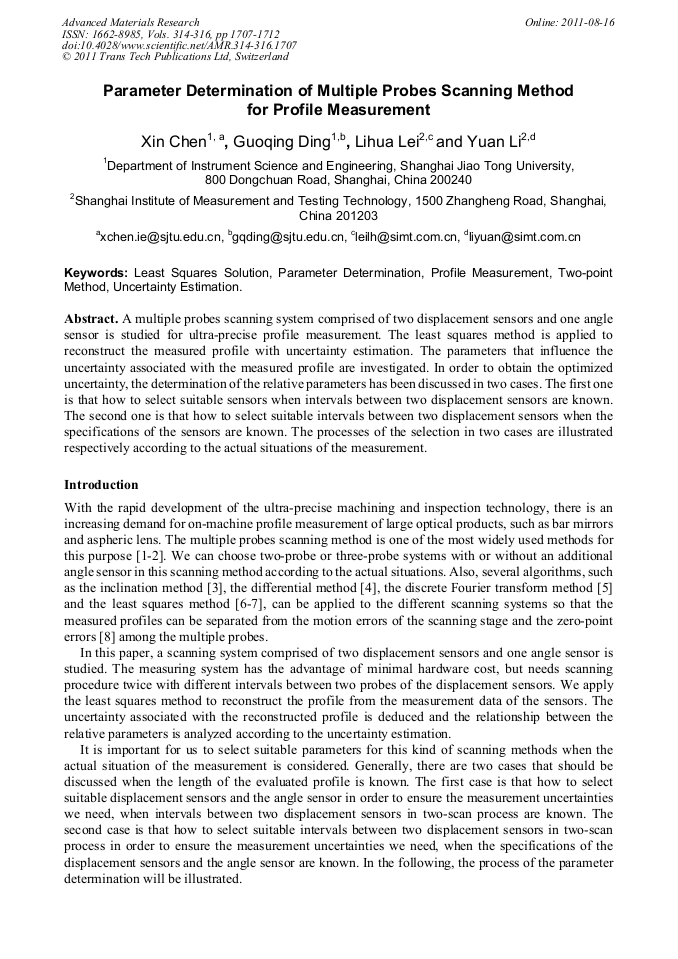

Parameter Determination of Multiple Probes Scanning Method for Profile Measurement

Abstract:

A multiple probes scanning system comprised of two displacement sensors and one angle sensor is studied for ultra-precise profile measurement. The least squares method is applied to reconstruct the measured profile with uncertainty estimation. The parameters that influence the uncertainty associated with the measured profile are investigated. In order to obtain the optimized uncertainty, the determination of the relative parameters has been discussed in two cases. The first one is that how to select suitable sensors when intervals between two displacement sensors are known. The second one is that how to select suitable intervals between two displacement sensors when the specifications of the sensors are known. The processes of the selection in two cases are illustrated respectively according to the actual situations of the measurement.

• Periodical: Advanced Materials Research (Volumes 314-316)
• Pages: 1707-1712
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.314-316.1707
• Online since: August 2011
• Authors: Xin Chen, Guo Qing Ding, Li Hua Lei, Yuan Li
• Keywords: Least Squares Solution, Parameter Determination, Profile Measurement, Two-Point Method, Uncertainty Estimation

References

[1] E. Okuyama: Precision Engineering Vol. 34 (2010), p.49

[2] C.J. Evans, R.J. Hocken and W.T. Estler: Annals CIRP Vol. 45 (1996), p.617

[3] H. Tanaka, K. Tazawa, H. Sato, M. Ohori and H. Sekiguchi: Annals CIRP Vol. 30 (1981), p.455

[4] S. Kiyono and W. Gao: Precision Engineering Vol. 16 (1994), p.212

[5] C. Elster and I. Weingartner: Applied Optics Vol. 38 (1999), p.5024

[6] C. Elster, I. Weingartner and M. Schulz: Precision Engineering Vol. 30 (2006), p.32

[7] S. Liu, K. Watanabe, X. Chen, S. Takahashi and K. Takamasu: Precision Engineering Vol. 33 (2009), p.50

[8] W. Gao, J. Yokoyama, H. Kojima, and S. Kiyono: Precision Engineering Vol. 26 (2002), p.279
