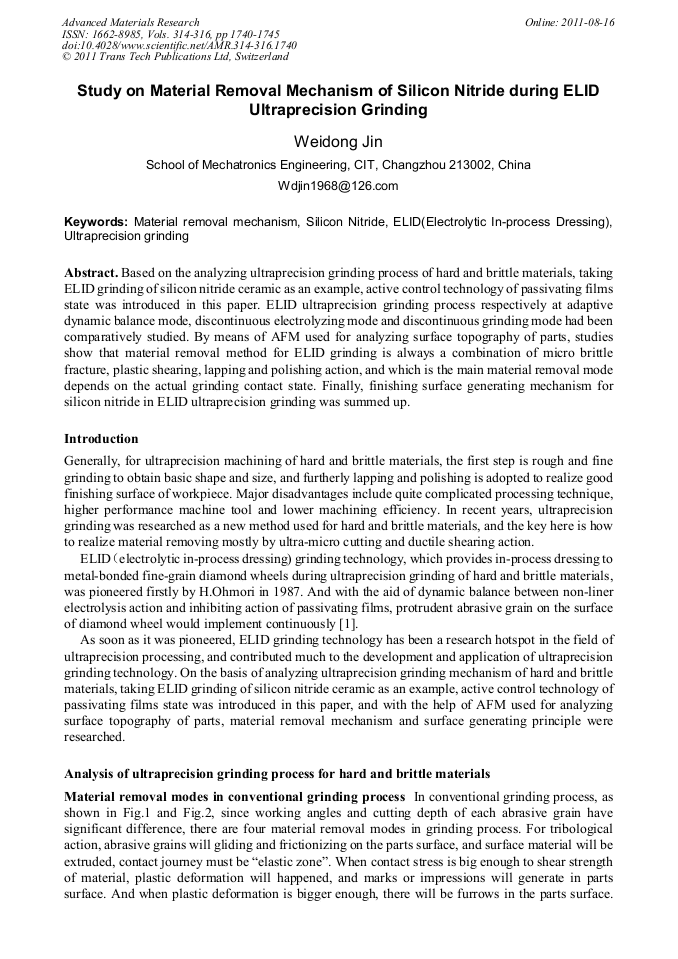

Study on Material Removal Mechanism of Silicon Nitride during ELID Ultraprecision Grinding

Abstract:

Based on the analyzing ultraprecision grinding process of hard and brittle materials, taking ELID grinding of silicon nitride ceramic as an example, active control technology of passivating films state was introduced in this paper. ELID ultraprecision grinding process respectively at adaptive dynamic balance mode, discontinuous electrolyzing mode and discontinuous grinding mode had been comparatively studied. By means of AFM used for analyzing surface topography of parts, studies show that material removal method for ELID grinding is always a combination of micro brittle fracture, plastic shearing, lapping and polishing action, and which is the main material removal mode depends on the actual grinding contact state. Finally, finishing surface generating mechanism for silicon nitride in ELID ultraprecision grinding was summed up.

• Periodical: Advanced Materials Research (Volumes 314-316)
• Pages: 1740-1745
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.314-316.1740
• Online since: August 2011
• Authors: Wei Dong Jin
• Keywords: ELID (Electrolytic In-Process Dressing), Material Removal Mechanism, Silicon Nitride, Ultraprecision Grinding

References

[1] B.P. Bandyopadhyay, H.Ohmori and I.Takahashi: Journal of Material Process Technology, Vol.66 (1997), pp.18-24

[2] G. C. Wang, Y. X. Zhang, Precision and Nontraditional Machining (Wuhan University of Technology Publications, China 2001, In Chinese)

[3] W. S. Kong：Machinist Metal Cutting, Vol.2 (2003), pp.20-22 (In Chinese)

[4] B.P. Bandyopadhyay, H. Ohmori: International Journal of Machine Tools & Manufacture, Vol.39 (1999), pp.839-853

[5] C. H. Zhang: Resarch on Theory and Technology of Precision Mirror Grinding with a Electrolytic In-process Dressing Wheel (Harbin Institute of Technology, 1996, In Chinese)
