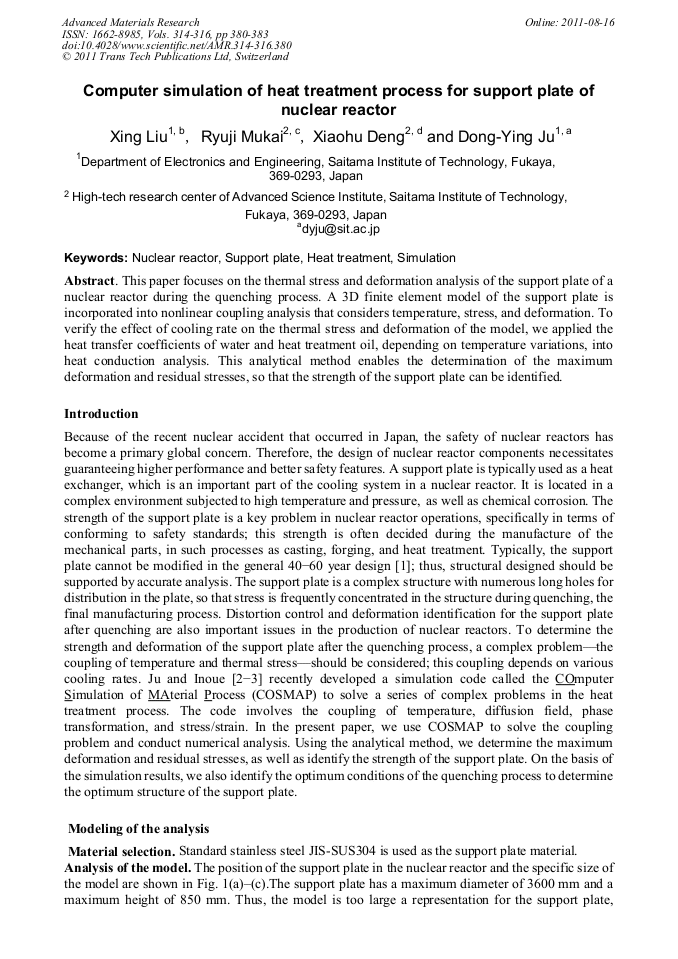

Computer Simulation of Heat Treatment Process for Support Plate of Nuclear Reactor

Abstract:

This paper focuses on the thermal stress and deformation analysis of the support plate of a nuclear reactor during the quenching process. A 3D finite element model of the support plate is incorporated into nonlinear coupling analysis that considers temperature, stress, and deformation. To verify the effect of cooling rate on the thermal stress and deformation of the model, we applied the heat transfer coefficients of water and heat treatment oil, depending on temperature variations, into heat conduction analysis. This analytical method enables the determination of the maximum deformation and residual stresses, so that the strength of the support plate can be identified.

• Periodical: Advanced Materials Research (Volumes 314-316)
• Pages: 380-383
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.314-316.380
• Online since: August 2011
• Authors: Xing Liu, Ryuji Mukai, Xiao Hu Deng, Dong Ying Ju
• Keywords: Heat Treatment, Nuclear Reactor, Simulation, Support Plate

References

[1] Andreeva M. et al. Overview of plant specific severe accident management strategies for Kozloduy nuclear power plant, WWER21000/ 320. Ann Nucl Energy, 2008, 35:555.

DOI: 10.1016/j.anucene.2007.08.005

[2] T. Inoue, D.Y. Ju, and K. Arimoto, Proc. of 1st International Conference on Quenching and Distortion Control, Chicago, (1992), 205−212.

[3] D.Y. Ju and T. Inoue, Journal of Material Science Research International, Vol.2, No.1, 18−25(1996).
