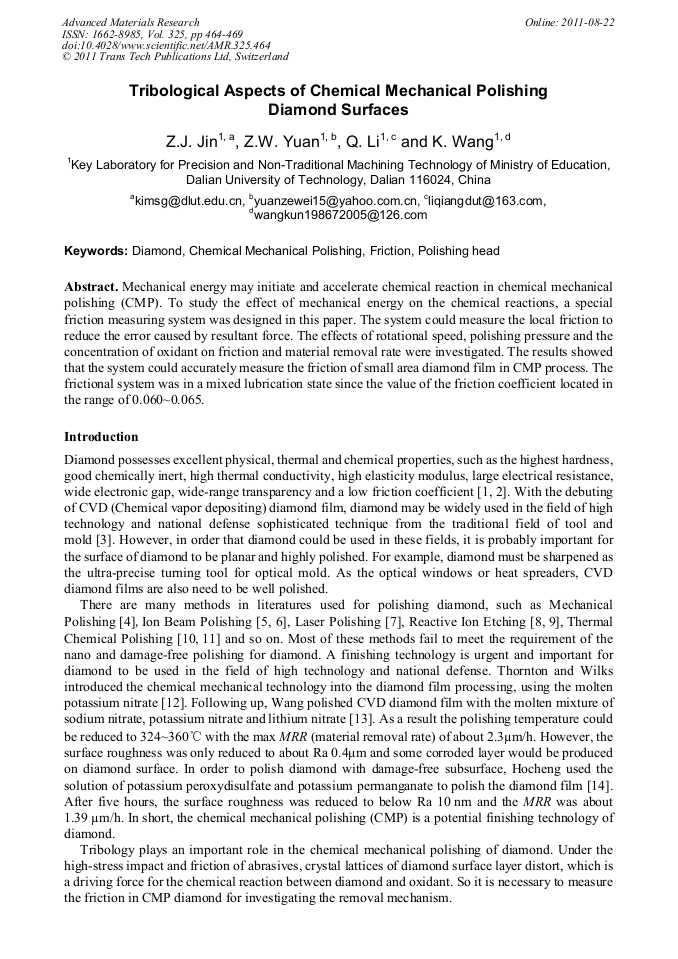

Tribological Aspects of Chemical Mechanical Polishing Diamond Surfaces

Abstract:

Mechanical energy may initiate and accelerate chemical reaction in chemical mechanical polishing (CMP). To study the effect of mechanical energy on the chemical reactions, a special friction measuring system was designed in this paper. The system could measure the local friction to reduce the error caused by resultant force. The effects of rotational speed, polishing pressure and the concentration of oxidant on friction and material removal rate were investigated. The results showed that the system could accurately measure the friction of small area diamond film in CMP process. The frictional system was in a mixed lubrication state since the value of the friction coefficient located in the range of 0.060~0.065.

You might also be interested in these eBooks

View Preview

Info:

Periodical:

Advanced Materials Research (Volume 325)

Pages:

464-469

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.325.464

Citation:

Cite this paper

Online since:

August 2011

Authors:

Zhu Ji Jin, Z.W. Yuan, Q. Li, K. Wang

Keywords:

Chemical Mechanical Polishing (CMP), Diamond, Friction, Polishing Head

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] A.P. Malshe, B.S. Park, W.D. Brown, et al.: Diamond Relat. Mter, Vol. 8 (1999), p.1198.

Google Scholar

[2] T.P. Mollart, C.J.H. Wort, C.S. James Pickles et al.: Proceedings of SPIE, Vol. 4375 (2001) p.199.

Google Scholar

[3] D.C. Harris: Proceedings of SPIE Vol. 2552(2001), p.325.

Google Scholar

[4] C.Y. Cheng, H.Y. Tsai, C.H. Wu et al.: Diamond Relat. Mter. Vol. 14 (2005), p.622.

Google Scholar

[5] Sung-Hoon Kim: The Korean Chemical Society, Vol. 45 (2001), p.351.

Google Scholar

[6] D.F. Grogan, T. Zhao, B. G. Bovard et al.: Applied Optics, Vol. 4 (1992), p.1483.

Google Scholar

[7] A. M, Ozkan, A.P. Malshe et al.: Diamond Relat. Mter. Vol. 6 (1997), p.1789.

Google Scholar

[8] P.W. Leech, G.K. Reeves, A. Holland: Journal of Materials Science, Vol. 10 (2004), p.3453.

Google Scholar

[9] L. Bell, M. K. Fung, et al.: Thin Solid Film, Vol. 5 (2000), p.222.

Google Scholar

[10] J.A. Weima, W.R. Fahrner: Solid State Electrochm, Vol. 5 (2001), p.112.

Google Scholar

[11] A.M. Zaitsev, G. Kosaca, B. Richarz et al.: Diamond Relat. Mter. Vol. 7 (1998), p.1108.

Google Scholar

[12] A. Thornton, J. Wilks: Journal of Physics D: Applied Physics, Vol. 9 (1976), p.27.

Google Scholar

[13] C.Y. Wang, F.L. Zhang, T.C. Kuang, et al.: Thin solid films, Vol. 496 (2006), p.698.

Google Scholar

[14] H. HoCheng and C.C. Chen: Materials science forum, Vol. 505-507 (2006), p.1225.

Google Scholar

[15] A.M. Scarfo, V.P. Manno, C.B. Rpgers, et al.: J. Electrochem. Soc., Vol. 152 (2005), p.477.

Google Scholar

[16] H. Matsuo, A. Ishikawa, T. Kikkawa: Jpn. J. Appl. Phys., Vol. 43 (2004), p.1813.

Google Scholar
