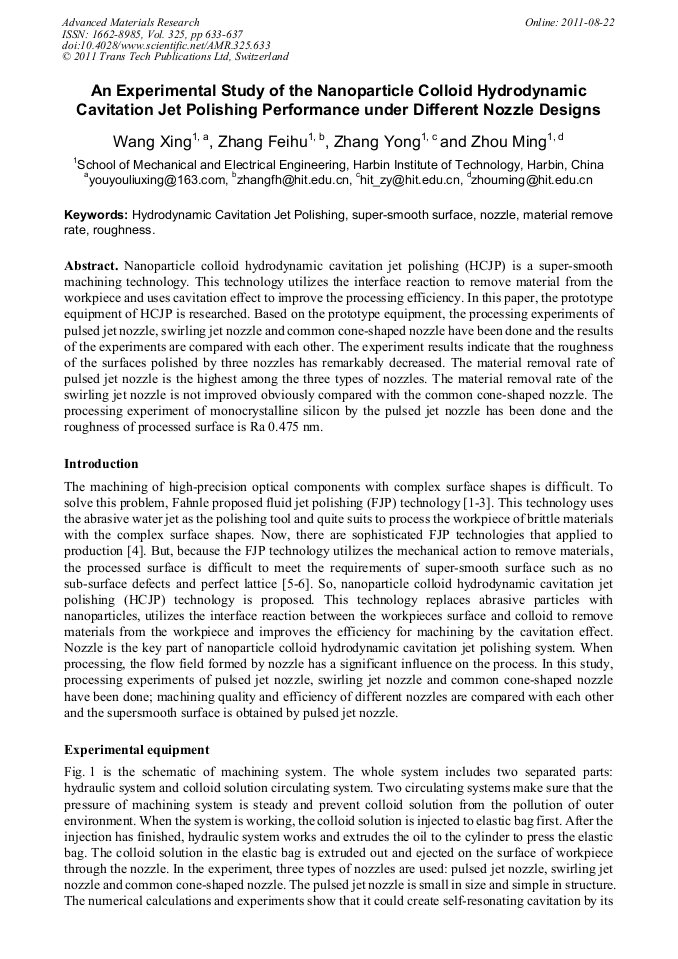

An Experimental Study of the Nanoparticle Colloid Hydrodynamic Cavitation Jet Polishing Performance under Different Nozzle Designs

Abstract:

Nanoparticle colloid hydrodynamic cavitation jet polishing (HCJP) is a super-smooth machining technology. This technology utilizes the interface reaction to remove material from the workpiece and uses cavitation effect to improve the processing efficiency. In this paper, the prototype equipment of HCJP is researched. Based on the prototype equipment, the processing experiments of pulsed jet nozzle, swirling jet nozzle and common cone-shaped nozzle have been done and the results of the experiments are compared with each other. The experiment results indicate that the roughness of the surfaces polished by three nozzles has remarkably decreased. The material removal rate of pulsed jet nozzle is the highest among the three types of nozzles. The material removal rate of the swirling jet nozzle is not improved obviously compared with the common cone-shaped nozzle. The processing experiment of monocrystalline silicon by the pulsed jet nozzle has been done and the roughness of processed surface is Ra 0.475 nm.

• Periodical: Advanced Materials Research (Volume 325)
• Pages: 633-637
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.325.633
• Online since: August 2011
• Authors: Xing Wang, Fei Hu Zhang, Yong Zhang, Ming Zhou
• Keywords: Hydrodynamic Cavitation Jet Polishing, Material Remove Rate, Nozzle, Roughness, Super-Smooth Surface

References

[1] S.M. Booij, O.W. Fahnle, and J.J.M. Braat,: Applied Optics Vol. 43(1) (2004), pp.67-69.

[2] S.M. Booij: Optical Manufacturing and Testing IV, Vol. 4451 (2001), pp.222-232.

[3] O.W. Fahnle, H.V. Brug, and H.J. Frankena: Applied Optics Vol. 37 (28)(1998), pp.6771-6773.

[4] Information on http: /www. lightmachinery. com/Fluid-Jet-Polishing. html.

[5] T.T. Saito: SPIE Vol. 1720 (1992), pp.2-10.

[6] K. Yuzo. Mori, Kazuto Yasutake, Hidekazu Goto, et al.: Journal of Crystal Growth Vol. 275 (2005) pp.39-50.

[7] X.J. Lu: Experimental study on cavitation water jet nozzle for cleaning (Magisterial thesis, China, 2009).

[8] L.H. Zhang: Numerical simulation of the removal procession and experimental research in the colloid liquid dynamics cavitating jet polishing (Magisterial thesis, China, 2010).

[9] W. Yong: ICIS, Vols 1-4 (2009) pp.132-135.

[10] X. Wang, Y. Zhang, and F.H. Zhang: submitted to Nanotechnology and Precision Engineering (2010).

[11] Y. Zhang, X. Wang and F.H. Zhang: submitted to CCAT (2011).

[12] F.H. Zhang, X.Z. Song, Y. Zhang: Key Engineering Materials Vol. 404 (2009), pp.143-148.

[13] X.Z. Song, Y. Zhang, F.H. Zhang: Advanced Materials Research Vol. 53-54 (2008), pp.363-368.

[14] F.H. Zhang, X.Z. Song, Y. Zhang, et al.: Journal of Micromechanics and Microengineering, Vol. 19 (5) (2009) pp.1-6.
