Experimental Study on CTOD Fracture Toughness of Welded Joints of Low Temperature Steel

Abstract:

According to BS7448 fracture toughness test standard, crack tip opening displacement (CTOD) for ASTM A333 Gr.6 low temperature steel which is used in offshore platform were carried out in low temperature (0°C, -29°C). Three point bending tests were conducted on the specimens, the dimension of which is B×2B (B is the thickness) and notch direction is NP. The final value of CTOD was calculated by P-V curves of both the welds and HAZ (heat affected zone). And the experimental results were analyzed and discussed in the paper. The low temperature steel welded joints show good low temperature toughness, the selected welding procedure is applied to construction of pipelines.The CTOD value of HAZ is larger than weld metal and weld is the weakest position in the whole structure. The experiment results provide an important basis for the choice of welding method and welding process parameters, ECA assessment and construction of offshore platform.

You might also be interested in these eBooks

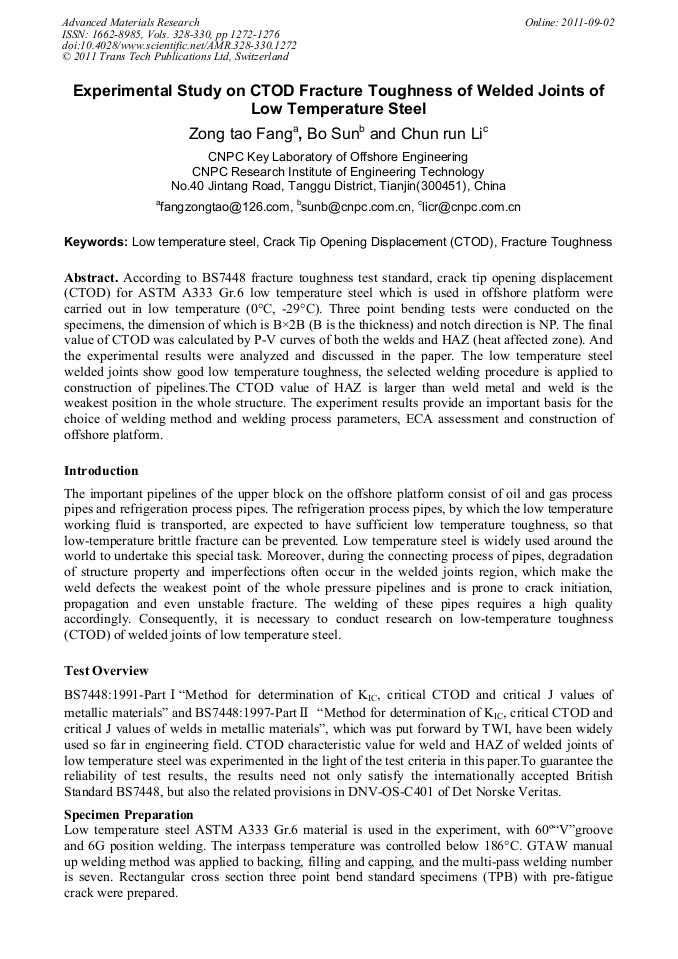

View Preview

Info:

Periodical:

Advanced Materials Research (Volumes 328-330)

Pages:

1272-1276

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.328-330.1272

Citation:

Cite this paper

Online since:

September 2011

Authors:

Zong Tao Fang, Bo Sun, Chun Run Li

Keywords:

Crack Tip Opening Displacement (CTOD), Fracture Toughness, Low Temperature Steel

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] L.X. Huo: Fracture Behaviour and Evaluation of Welded Structures (China Machine Press, China 2000), p.46~77.

Google Scholar

[2] C.Y. Deng, Y.F. Zhang and L.X. Huo: Transactions of the China Welding Institution, Vol. 3 (2003) No. 6, p.13.

Google Scholar

[3] BS 7448: Part 1: Fracture mechanics toughness tests. Part 1. Method for determination of KIC, critical CTOD and critical J values of metallic materials. (1991).

DOI: 10.3403/02516822

Google Scholar

[4] BS 7448: Part 2: Fracture mechanics toughness tests. Part 1. Method for determination of KIC, critical CTOD and critical J values of welds in metallic materials. (1997).

DOI: 10.3403/01124251

Google Scholar

[5] DNV-OS-C401, Fabrication and testing of offshore structures, (2001).

Google Scholar
