Ni-Induced Lateral Fast Crystallization of Amorphous Silicon Film by Microwave Annealing

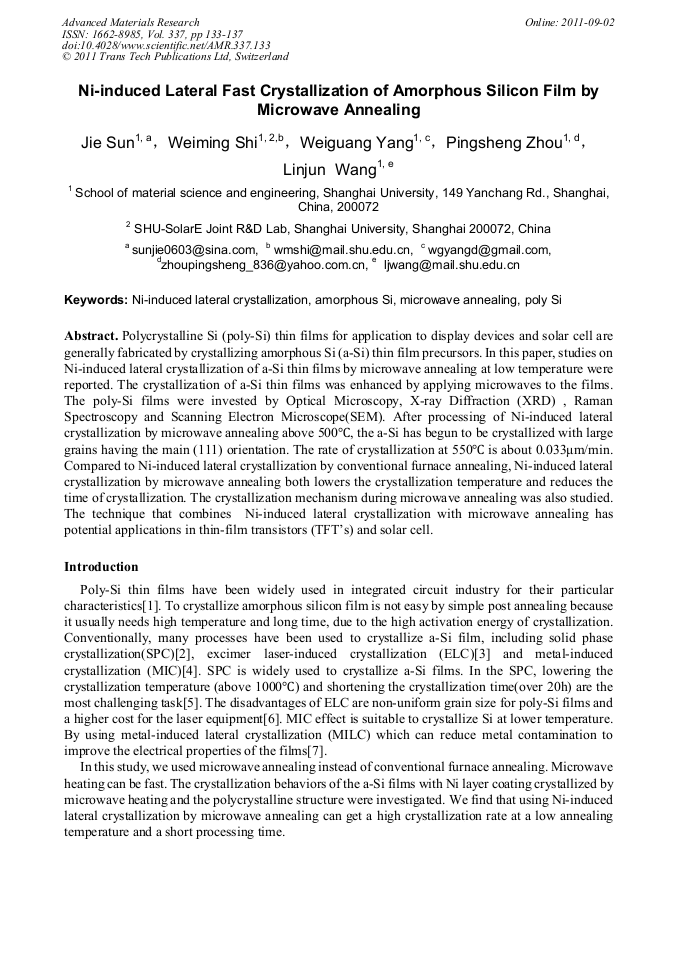

Article Preview

Abstract:

Polycrystalline Si (poly-Si) thin films for application to display devices and solar cell are generally fabricated by crystallizing amorphous Si (a-Si) thin film precursors. In this paper, studies on Ni-induced lateral crystallization of a-Si thin films by microwave annealing at low temperature were reported. The crystallization of a-Si thin films was enhanced by applying microwaves to the films. The poly-Si films were invested by Optical Microscopy, X-ray Diffraction (XRD) , Raman Spectroscopy and Scanning Electron Microscope(SEM). After processing of Ni-induced lateral crystallization by microwave annealing above 500°C, the a-Si has begun to be crystallized with large grains having the main (111) orientation. The rate of crystallization at 550°C is about 0.033μm/min. Compared to Ni-induced lateral crystallization by conventional furnace annealing, Ni-induced lateral crystallization by microwave annealing both lowers the crystallization temperature and reduces the time of crystallization. The crystallization mechanism during microwave annealing was also studied. The technique that combines Ni-induced lateral crystallization with microwave annealing has potential applications in thin-film transistors (TFT’s) and solar cell.

You might also be interested in these eBooks

Info:

Periodical:

Pages:

133-137

Citation:

Online since:

September 2011

Export:

Price:

Permissions CCC:

Permissions PLS:

Сopyright:

© 2011 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

[1] S.D. Brotherton, C. Glasse, C. Glaister, et al., Appl. Phys. Lett. Vol.84 (2004), p.293

Google Scholar

[2] J.W. Park, D.G. Moon, B.T. Ahn, et al., Thin Solid Films Vol.245 (1994), p,228

Google Scholar

[3] A.T. Voutsas, Appl. Surf. Sci. Vol.208–209 (2003), p.250

Google Scholar

[4] M. Kurosawa, K. Toko, N. Kawabata, T. Sadoh, and M. Miyao, Solid-State Electronics Vol.60 (2011), p.7

Google Scholar

[5] L. Pereira, H. A. Guas, R. M. S. Martinas, P. Vilarinho, E. Fortunato, and R. Martins, Thin Solid Films Vol.334 (2004), p.451

Google Scholar

[6] Y. Sugawara, Y. Uraoka, H. Yano, T. Hatayama, T. Fuyuki, and A. Mimura, IEEE Electron Device Lett. Vol.28 (2007), p.395

DOI: 10.1109/led.2007.895397

Google Scholar

[7] L. Pereira, H. A. Guas, R. M. S. Martinas, P. Vilarinho, E. Fortunato, and R. Martins, Thin Solid Films Vol.334 (2004), p.451

Google Scholar
