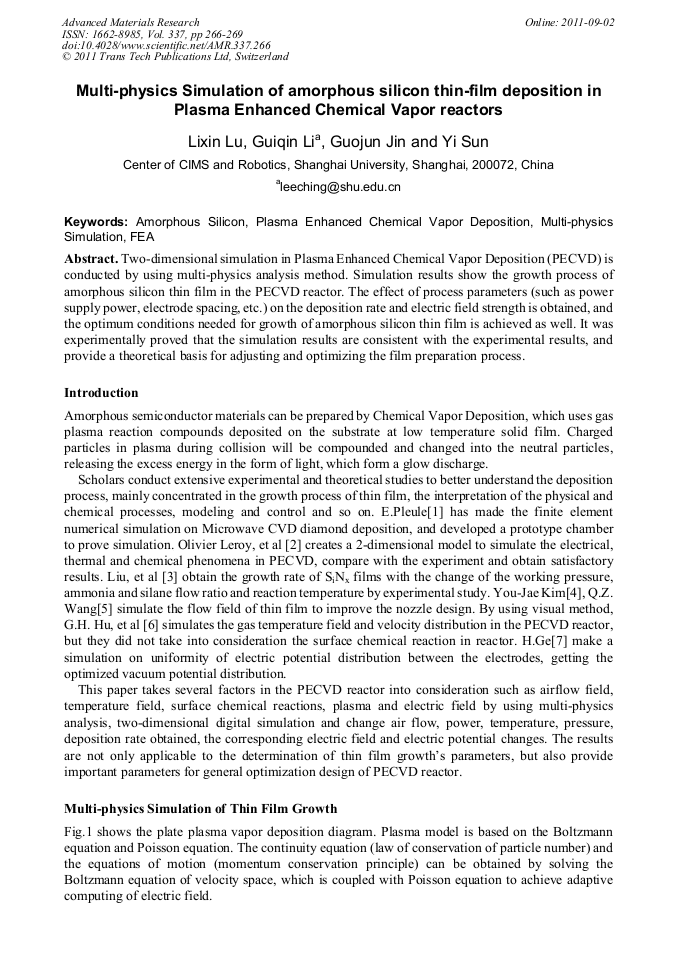

Multi-Physics Simulation of Amorphous Silicon Thin-Film Deposition in Plasma Enhanced Chemical Vapor Reactors

Abstract:

Two-dimensional simulation in Plasma Enhanced Chemical Vapor Deposition (PECVD) is conducted by using multi-physics analysis method. Simulation results show the growth process of amorphous silicon thin film in the PECVD reactor. The effect of process parameters (such as power supply power, electrode spacing, etc.) on the deposition rate and electric field strength is obtained, and the optimum conditions needed for growth of amorphous silicon thin film is achieved as well. It was experimentally proved that the simulation results are consistent with the experimental results, and provide a theoretical basis for adjusting and optimizing the film preparation process.

• Periodical: Advanced Materials Research (Volume 337)
• Pages: 266-269
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.337.266
• Online since: September 2011
• Authors: Li Xin Lu, Gui Qin Li, Guo Jun Jin, Yi Sun
• Keywords: Amorphous Silicon, Multi-Physics Simulation, Plasma Enhanced Chemical Vapor Deposition (PECVD)

References

[1] E. Pleuler, C. Wild, et al, Diamond and Related Materials, 11(2002), p.467

[2] Olivier Leroy, Gérard Gousset, Luís Lemos Alves, et al. Plasma Sources Science and Technology, vol.3(1998): p.348

[3] X.J. Liu C.Y. Jin Z.Y. Huang, et al. J. Chinese Ceramic Society, vol. 31(2003):p.986

[4] Q.Z. Wang G.S. Zhao S.Z.Xu, et al. Acta Scientiarum Naturalium Universitatis Nankaiensis, vol.39(2006):p.45.

[5] You-Jae Kim, Jin-Hyo Boo, Byungyou Hong, et al. Sur. & Coat. Tech., vol. 193(2005):p.88

[6] G.H.Hu, W.H. Zhu, T.Yu, et al. J. System Simulation, vol. 20(2008), p.5885

[7] H.Ge, X.D. Zhang, Q.Yue, et al. Chinese J. Vacuum Science and Technology, vol. 28(2008), p.281
