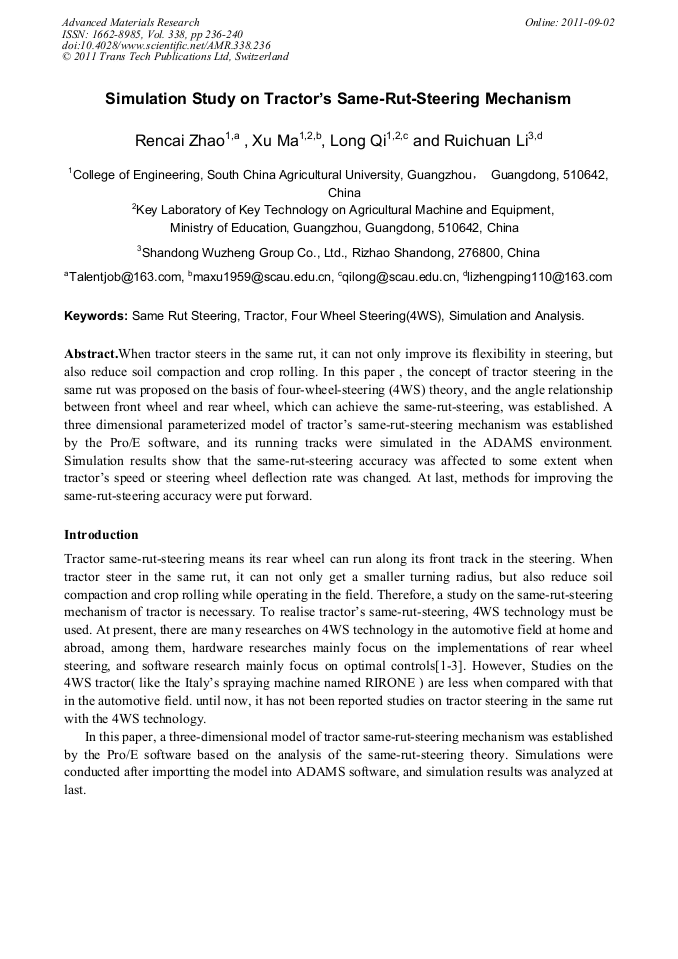

Simulation Study on Tractor’s Same-Rut-Steering Mechanism

Abstract:

When tractor steers in the same rut, it can not only improve its flexibility in steering, but also reduce soil compaction and crop rolling. In this paper , the concept of tractor steering in the same rut was proposed on the basis of four-wheel-steering (4WS) theory, and the angle relationship between front wheel and rear wheel, which can achieve the same-rut-steering, was established. A three dimensional parameterized model of tractor’s same-rut-steering mechanism was established by the Pro/E software, and its running tracks were simulated in the ADAMS environment. Simulation results show that the same-rut-steering accuracy was affected to some extent when tractor’s speed or steering wheel deflection rate was changed. At last, methods for improving the same-rut-steering accuracy were put forward.

• Periodical: Advanced Materials Research (Volume 338)
• Pages: 236-240
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.338.236
• Online since: September 2011
• Authors: Ren Cai Zhao, Xu Ma, Long Qi, Rui Chuan Li
• Keywords: Four Wheel Steering(4WS), Same Rut Steering, Simulation and Analysis, Tractor

References

[1] Konghui Guo, Hao Zha. J: Development of Control Method for Four-Wheel Steering . China Mechanical Engineering, 1998.（In Chinese）

[2] Qiuzhen Qu, Yanzhu Liu. J: Control Strategy of Four-Wheel Steering Vehicle. Automotive Technology, 1999.（In Chinese）

[3] Yuanming Bian. J: Four Wheel Steering Technology and Its Development Prospects of Automotive. World Automotive, 1999.（In Chinese）

[4] Jiarui Chen. J: Automobile Construction. Beijing：China Communications Press，2006.（In Chinese）

[5] Siping Yan, Lingqing Wang, Etc. J: 4WS Vehicle Vir tual Prototype Modeling and Dynamics Simulation Based on ADAMS. Design and Research, 2007（9）.（In Chinese）
