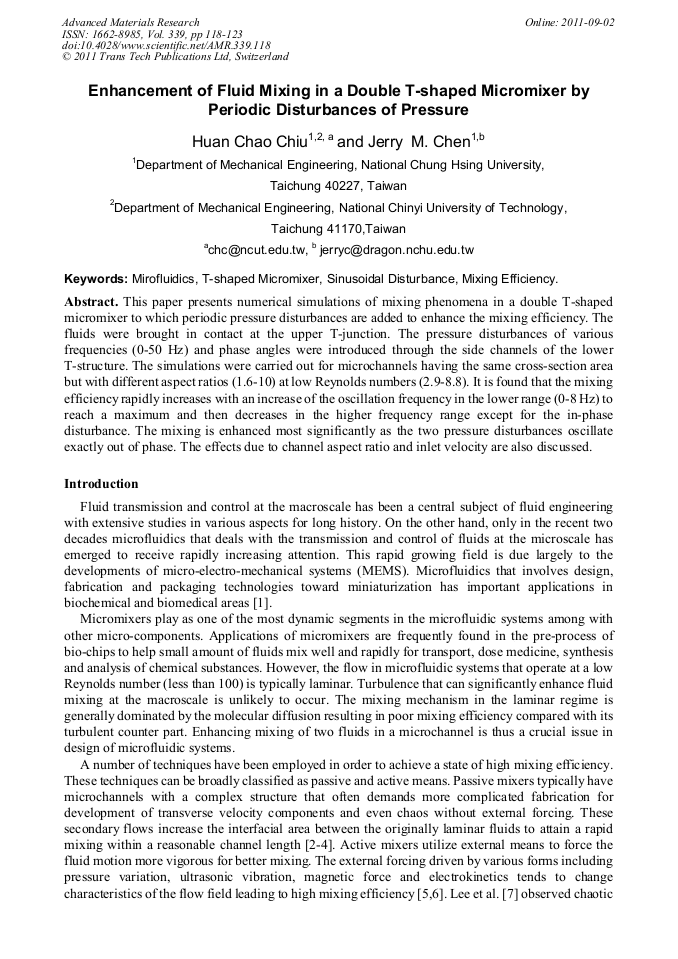

Enhancement of Fluid Mixing in a Double T-Shaped Micromixer by Periodic Disturbances of Pressure

Abstract:

This paper presents numerical simulations of mixing phenomena in a double T-shaped micromixer to which periodic pressure disturbances are added to enhance the mixing efficiency. The fluids were brought in contact at the upper T-junction. The pressure disturbances of various frequencies (0-50 Hz) and phase angles were introduced through the side channels of the lower T-structure. The simulations were carried out for microchannels having the same cross-section area but with different aspect ratios (1.6-10) at low Reynolds numbers (2.9-8.8). It is found that the mixing efficiency rapidly increases with an increase of the oscillation frequency in the lower range (0-8 Hz) to reach a maximum and then decreases in the higher frequency range except for the in-phase disturbance. The mixing is enhanced most significantly as the two pressure disturbances oscillate exactly out of phase. The effects due to channel aspect ratio and inlet velocity are also discussed.

You might also be interested in these eBooks

Advanced Manufacturing Systems, ICMPMT 2011

View Preview

Info:

Periodical:

Advanced Materials Research (Volume 339)

Pages:

118-123

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.339.118

Citation:

Cite this paper

Online since:

September 2011

Authors:

Huan Chao Chiu, Jerry M Chen

Keywords:

Mirofluidics, Mixing Efficiency, Sinusoidal Disturbance, T-Shaped Micromixer

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] D.J. Beebe, G.A. Mensing and G.M. Walker: Annual Review of Biomedical Engineering Vol. 4 (2002), p.261.

Google Scholar

[2] R.H. Liu, M.A. Stremler, K.V. Sharp, M.G. Olsen, J.G. Santiago, R.J. Adrian, H. Aref and D.J. Beebe: Journal of Microelectromechanical Systems Vol. 9 (2000), p.190.

DOI: 10.1109/84.846699

Google Scholar

[3] A.D. Stroock, S.K.W. Dertinger, A. Ajdari, I. Mezic, H.A. Stone and G.M. Whitesides: Science Vol. 295 (2002), p.647.

Google Scholar

[4] H.M. Xia, S.Y. M. Wan, C. Shu and Y.T. Chew: Lab on a Chip Vol. 5 (2005), p.748.

Google Scholar

[5] I. Glasgow, J. Batton and N. Aubry: Lab on a Chip Vol. 4 (2004), p.558.

Google Scholar

[6] R.A. Truesdell, J.W. Bartsch, T. Buranda, L.A. Sklar and A.A. Mammoli: Experiment in Fluids Vol. 39 (2005), p.819.

DOI: 10.1007/s00348-005-0015-7

Google Scholar

[7] B.S. Lee, I.S. Kang, and H.C. Lin: International Journal of Heat and Mass Transfer Vol. 42 (1999), p.2571.

Google Scholar

[8] F. Okkels and P. Tabeling: Physical Review Letters Vol. 92 (2004), pp.038301-1.

Google Scholar

[9] J.M. Chen, C.H. Chan and J.W. Lai: Proceedings of the 16th International Symposium on Transport Phenomena, ISTP-16, Prague, Czech Republic, (2005).

Google Scholar
