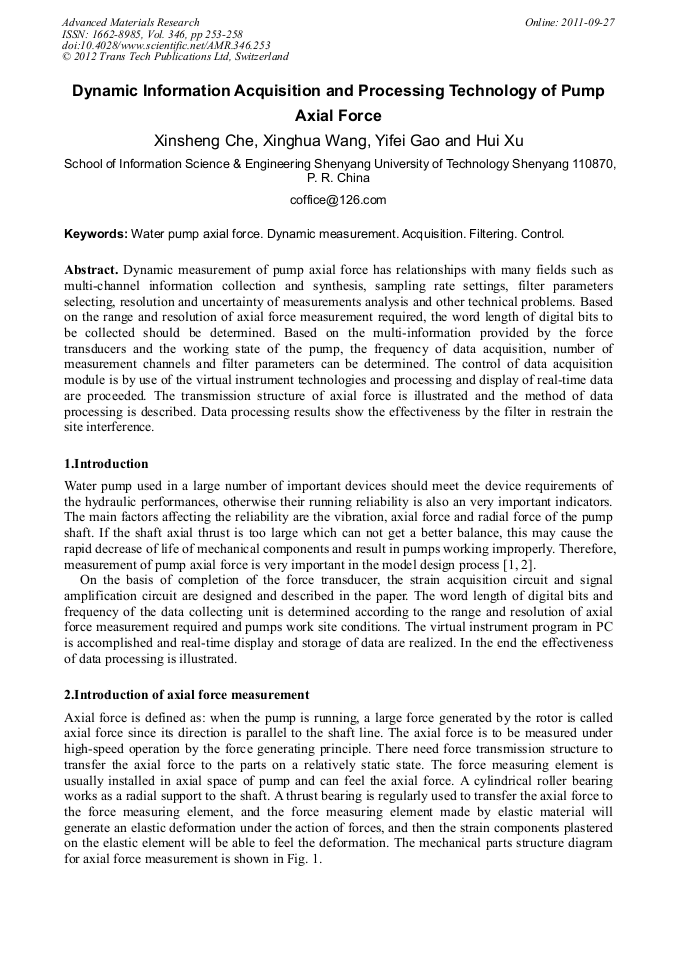

Dynamic Information Acquisition and Processing Technology of Pump Axial Force

Abstract:

Dynamic measurement of pump axial force has relationships with many fields such as multi-channel information collection and synthesis, sampling rate settings, filter parameters selecting, resolution and uncertainty of measurements analysis and other technical problems. Based on the range and resolution of axial force measurement required, the word length of digital bits to be collected should be determined. Based on the multi-information provided by the force transducers and the working state of the pump, the frequency of data acquisition, number of measurement channels and filter parameters can be determined. The control of data acquisition module is by use of the virtual instrument technologies and processing and display of real-time data are proceeded. The transmission structure of axial force is illustrated and the method of data processing is described. Data processing results show the effectiveness by the filter in restrain the site interference.

• Periodical: Advanced Materials Research (Volume 346)
• Pages: 253-258
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.346.253
• Online since: September 2011
• Authors: Xin Sheng Che, Xing Hua Wang, Yi Fei Gao, Hui Xu
• Keywords: Acquisition, Control, Dynamic Measurement, Filtering, Water Pump Axial Force

References

[1] H. W. Wang, and G. D. Yu, Dynamic measurement of axial force, Mechanical Management and Development, no. 98, pp.61-64, October (2007).

[2] W. D. Shi, Q. F. Li, W. G. Lu, et al, Estimation and experiment of axial thrust in centrifugal pump based on CFD, Transactions of the Chinese Society of Agricultural Machinery, vol. 40, no. 1, pp.60-63, January (2009).

[3] J. Q. Wang, J. Yan, Z. H. Tang, et al, Measuring and analyzing for axial load of the sheet strip mill, Metallurgical Equipment, no. 1, pp.74-76, January (2009).

[4] X. S. Che, Y. J. Zhang, and X. Y. Zhang, Emulation and simulation of dynamic weighting signal, in Proceedings of International Conference on Intelligent Computation Technology and Automation, vol. II, Changsha, 2008, pp.131-135.

DOI: 10.1109/icicta.2008.193

[5] Z. Wei, Instrumentation amplifier and its applications, International Electronic Elements, no. 5, pp.75-77, May (2004).

[6] G. P. Hou, K. Wang, and Q. X. Ye, LabVIEW7. 1 Programming and Design of Virtual Instrument. Beijing: Tsinghua University Press, (2007).

[7] National Instruments CorP, LabVIEW User Manual. Austin, Texas USA, 2002. J. Richard, and W. W. Dean, Applied Multivariate Statistical Analysis. Beijing: Tsinghua University Press, (2001).
