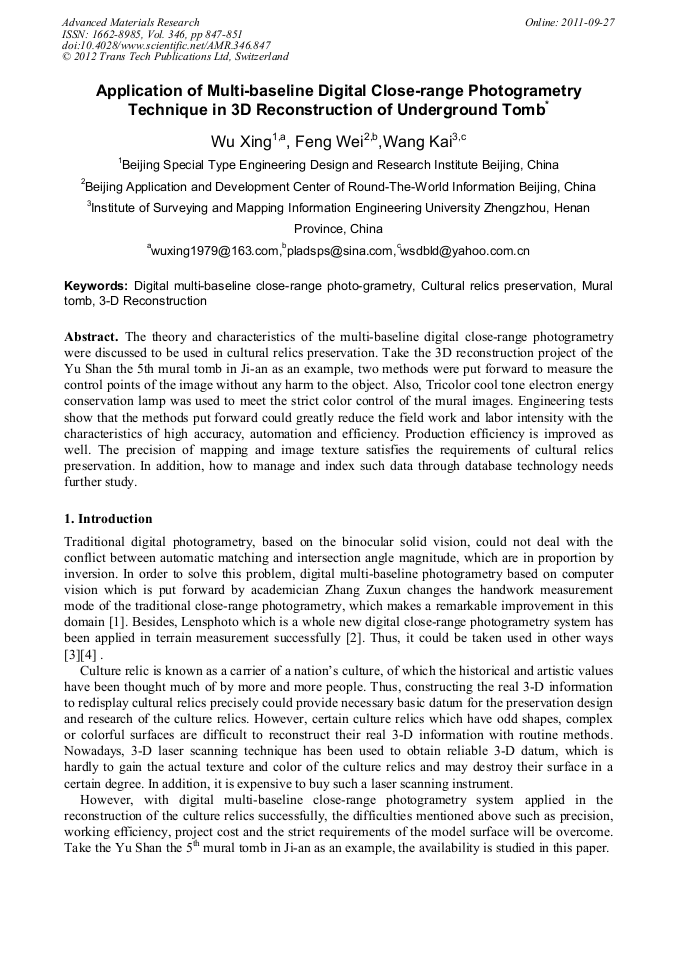

Application of Multi-Baseline Digital Close-Range Photogrametry Technique in 3D Reconstruction of Underground Tomb

Abstract:

The theory and characteristics of the multi-baseline digital close-range photogrametry were discussed to be used in cultural relics preservation. Take the 3D reconstruction project of the Yu Shan the 5th mural tomb in Ji-an as an example, two methods were put forward to measure the control points of the image without any harm to the object. Also, Tricolor cool tone electron energy conservation lamp was used to meet the strict color control of the mural images. Engineering tests show that the methods put forward could greatly reduce the field work and labor intensity with the characteristics of high accuracy, automation and efficiency. Production efficiency is improved as well. The precision of mapping and image texture satisfies the requirements of cultural relics preservation. In addition, how to manage and index such data through database technology needs further study.

• Periodical: Advanced Materials Research (Volume 346)
• Pages: 847-851
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.346.847
• Online since: September 2011
• Authors: Xing Wu, Wei Feng, Kai Wang
• Keywords: 3D Reconstruction, Cultural Relics Preservation, Digital Multi-Baseline Close-Range Photo-Grametry, Mural Tomb

References

[1] Z. X. Zhang, S. C. Yang, J. Q. Zhang, T. Ke. Multi-baseline digital close-range photogrammetry. Geospatial Information, 2007, vol. 5, no. 1, pp.1-4.

[2] J. Q. Zhang, A. W. Hu. Method and precision analysis of multi-baseline photogrammetry. Geomatics and Information Science of Wuhan University. 2007, vol. 32, no. 10, pp.847-851.

[3] D. C. Zhang, Y. J. Chen. A study on application of multi-baseline digital close-range photo-grammetry technique in railway survey. Railway Investigation and Surveying. 2009, no. 5, pp.43-45.

[4] S. L. Zhang, H. X. Yin, Q. Liu. Application of multi-baseline digital close-range photogrammetry system. Technology and Equipment of Surveying and Mapping. 2009, vol. 11, no. 1, pp.27-30.

[5] Z. X. Zhang, J. Q. Zhang. Digital photogrammetry. Wuhan: Wuhan University Press, 1997. Fig. 1 3-D point cloud of the inner wall of the tomb Fig. 2 Surface model of the inner wall of the tomb Fig. 3 3-D sight of the inner wall of the tomb Table I Precision statistic of the control points of images in the 5th tomb (unit: mm) Measurement zones Numbers of control points of image RMS x y z xy r Main tomb 1 179.
