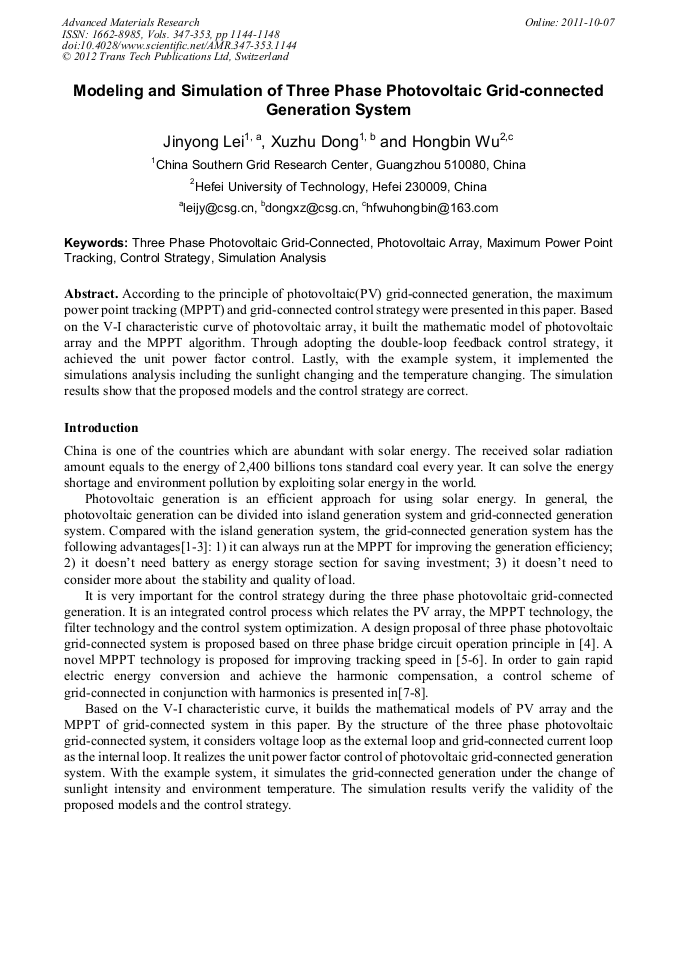

Modeling and Simulation of Three Phase Photovoltaic Grid-Connected Generation System

Abstract:

According to the principle of photovoltaic(PV) grid-connected generation, the maximum power point tracking (MPPT) and grid-connected control strategy were presented in this paper. Based on the V-I characteristic curve of photovoltaic array, it built the mathematic model of photovoltaic array and the MPPT algorithm. Through adopting the double-loop feedback control strategy, it achieved the unit power factor control. Lastly, with the example system, it implemented the simulations analysis including the sunlight changing and the temperature changing. The simulation results show that the proposed models and the control strategy are correct.

• Periodical: Advanced Materials Research (Volumes 347-353)
• Pages: 1144-1148
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.347-353.1144
• Online since: October 2011
• Authors: Jin Yong Lei, Xu Zhu Dong, Hong Bin Wu
• Keywords: Control Strategy, Maximum Power Point Tracking (MPPT), Photovoltaic (PV) Array, Simulation Analysis, Three Phase Photovoltaic Grid-Connected

References

[1] Chowdhury, B.H., Sawab, A.W.: IEEE Transactions on Energy Conversion, Vol.11(1996), p.595

[2] Barbosa P. G., Braga H. A. C., Rodrigues, M.C.B.: IEEE Transactions on Power Electronics, Vol.21(2006), p.1116

[3] Shimizu T, Hashimoto O, and Kimura G: IEEE Transactions on Power Electronics, Vol 18(2003), p.704.

[4] Wang Fei, Yu Shijie, Su Jianhui: Acta Energiae Solaris Sinica. Vol.26(2005), p.605 (in chinese)

[5] C Hua, J Lin: Energy Conversion and Management. Vol.45(2004), p.911

[6] Kuei-Hsiang Chao, Ching-Ju Li: Expert Systems with Applications. Vol.37(2010), p.1050

[7] Luo Weiping: The harmonious detecting and analyzing of PV grid connected generation (Control Conference, 2008. China)

DOI: 10.1109/chicc.2008.4605199

[8] Wang Haining, Su Jianhui, Ding Ming: Proceedings of CSEE,Vol.27(2007), pp.75-79. (in chinese)

[9] B. Ai, H. Yang, H. Shen ,X. Liao: Renewable Energy, Vol.28(2003), p.1491.
