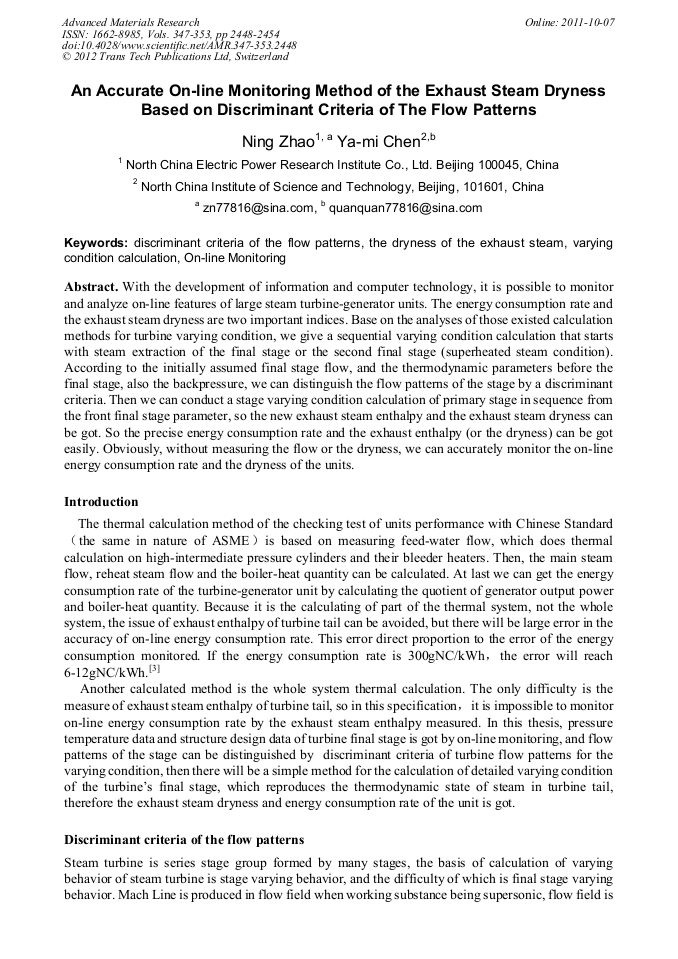

An Accurate on-Line Monitoring Method of the Exhaust Steam Dryness Based on Discriminant Criteria of the Flow Patterns

Abstract:

With the development of information and computer technology, it is possible to monitor and analyze on-line features of large steam turbine-generator units. The energy consumption rate and the exhaust steam dryness are two important indices. Base on the analyses of those existed calculation methods for turbine varying condition, we give a sequential varying condition calculation that starts with steam extraction of the final stage or the second final stage (superheated steam condition). According to the initially assumed final stage flow, and the thermodynamic parameters before the final stage, also the backpressure, we can distinguish the flow patterns of the stage by a discriminant criteria. Then we can conduct a stage varying condition calculation of primary stage in sequence from the front final stage parameter, so the new exhaust steam enthalpy and the exhaust steam dryness can be got. So the precise energy consumption rate and the exhaust enthalpy (or the dryness) can be got easily. Obviously, without measuring the flow or the dryness, we can accurately monitor the on-line energy consumption rate and the dryness of the units.

• Periodical: Advanced Materials Research (Volumes 347-353)
• Pages: 2448-2454
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.347-353.2448
• Online since: October 2011
• Authors: Ning Zhao, Ya Mi Chen
• Keywords: Discriminant Criteria of the Flow Patterns, Dryness of the Exhaust Steam, Online Monitoring, Varying Condition Calculation

References

[1] Pan Wen-quan, Fluid Mechanics Principle [M] ．Mechanical Industrial Press. 1983.

[2] Shen Shi-yi, Steam Turbine Principle. [M]．Water Conservancy and Electric Power Press.(1992)

[3] Cao Zu-qing, The Characteristic of Changing Behaviour of Steam Turbine. [M]．Water Conservancy and Electric Power Press.(1991)

[4] А.В. Щегляев, Steam Turbine. [M]．Higher Education Press. (1954)

[5] Chunfa Zhang，etc．Thermo-Economy State Equation of Modern Power System, [J], Journal of Engineering Thermophysics, 2001.

[6] Chunfa Zhang，etc．Steam-water Distribution Matrix Equation of the Whole Thermal System for Coal-fired Power Plant and its General Construction Regulations, American Society of Mechanical Engineers, Power Division (Publication) PWR, v34-2, 1999, pp.497-503

[7] Zhang Chunfa, etc. Proof for Part of the Sttla Flow Experimental Conclusion and the Improvement of Flugel Formula [J], Science in China (series E), 2002,45

DOI: 10.1360/02ye9005

[8] Zhang Chunfa, etc. Judgement Theorem for Subsonic or Supersonic Flow State of Condensate at Off-design Condition, [J],Power Engineering, 2002.06

[9] Cui Ying-hong, etc. On-line Calculation of Exhaust and Various Operation Characteristic in Turbine, [J], Turbine Technology, (2002)
