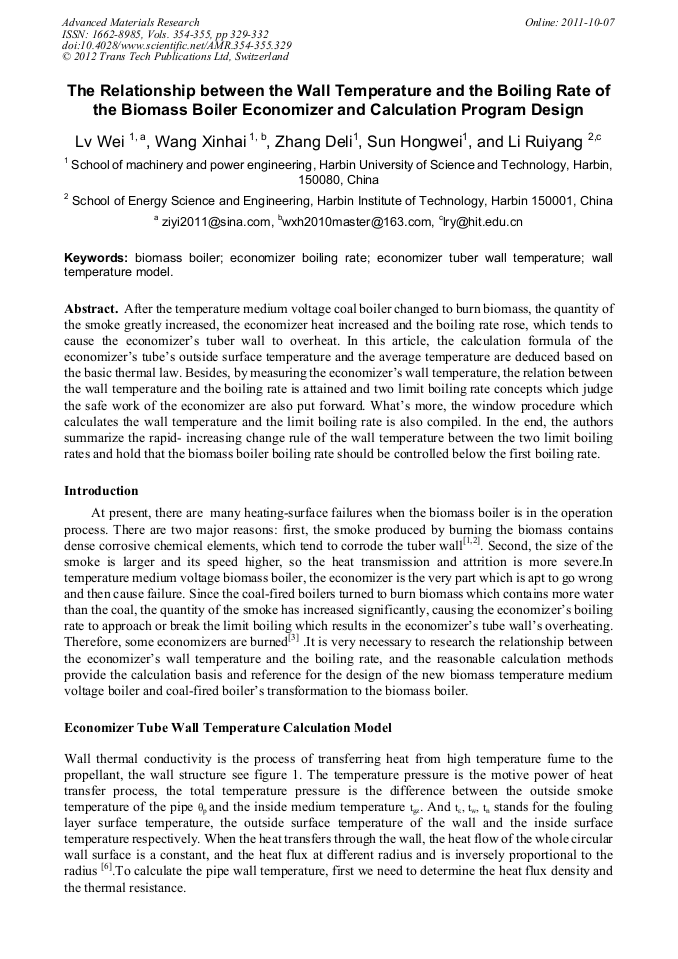

The Relationship between the Wall Temperature and the Boiling Rate of the Biomass Boiler Economizer and Calculation Program Design

Abstract:

After the temperature medium voltage coal boiler changed to burn biomass, the quantity of the smoke greatly increased, the economizer heat increased and the boiling rate rose, which tends to cause the economizer’s tuber wall to overheat. In this article, the calculation formula of the economizer’s tube’s outside surface temperature and the average temperature are deduced based on the basic thermal law. Besides, by measuring the economizer’s wall temperature, the relation between the wall temperature and the boiling rate is attained and two limit boiling rate concepts which judge the safe work of the economizer are also put forward. What’s more, the window procedure which calculates the wall temperature and the limit boiling rate is also compiled. In the end, the authors summarize the rapid- increasing change rule of the wall temperature between the two limit boiling rates and hold that the biomass boiler boiling rate should be controlled below the first boiling rate.

• Periodical: Advanced Materials Research (Volumes 354-355)
• Pages: 329-332
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.354-355.329
• Online since: October 2011
• Authors: Wei Lv, Xin Hai Wang, De Li Zhang, Hong Wei Sun, Rui Yang Li
• Keywords: Biomass Boiler, Economizer Boiling Rate, Economizer Tuber Wall Temperature, Wall Temperature Model

References

[1] Qingling Zhao:The Study on the Problem of Deposit and Corrosion on Heat-Transfer Surface during SDBF Combustion (Henan Agricultural University ,Zhengzhou, 2007)

[2] Hongwei Sun, Lv Wei, Li Ruiyang: Energy Conservation Technology Vol. 153 (2009), pp.24-26

[3] Chengmao Huang:Boiler water dynamics and Heat transfer in the boiler(Mechanical Industry Press, Beijing ,1982)

[4] Junkai Feng, Youting Shen, Ruichang Yang:Principle and Calculation of Boiler .(Science Press, Beijing, 2003)

[5] A.M. Gul Abramovich H.B. Kuznetsov. Standard Method of Boiler Unit's Thermal Calculation (Mechanical Industry Press, Beijing ,1973)

[6] Shiming Yang, Wenquan Tao:Heat Transfer Theory. The fourth edition. (China Higher Education Press, Beijing , 2006)
