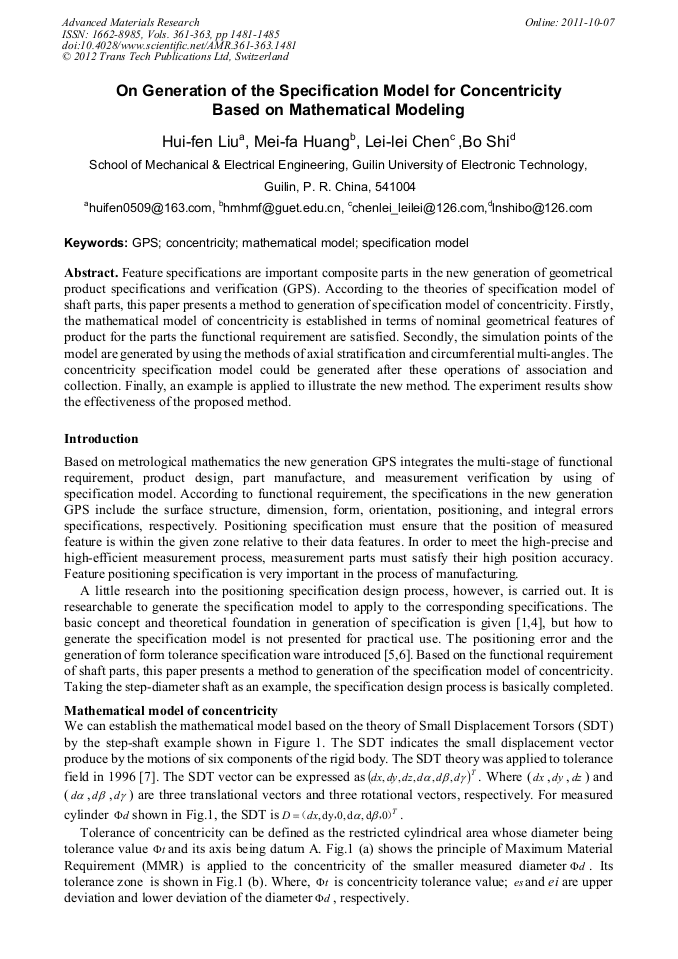

On Generation of the Specification Model for Concentricity Based on Mathematical Modeling

Abstract:

Feature specifications are important composite parts in the new generation of geometrical product specifications and verification (GPS). According to the theories of specification model of shaft parts, this paper presents a method to generation of specification model of concentricity. Firstly, the mathematical model of concentricity is established in terms of nominal geometrical features of product for the parts the functional requirement are satisfied. Secondly, the simulation points of the model are generated by using the methods of axial stratification and circumferential multi-angles. The concentricity specification model could be generated after these operations of association and collection. Finally, an example is applied to illustrate the new method. The experiment results show the effectiveness of the proposed method.

• Periodical: Advanced Materials Research (Volumes 361-363)
• Pages: 1481-1485
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.361-363.1481
• Online since: October 2011
• Authors: Hui Fen Liu, Mei Fa Huang, Lei Lei Chen, Bo Shi
• Keywords: Concentricity, Global Positioning System (GPS), Mathematical Models, Specification Model

References

[1] Xiangqian Jiang. Theory and Applications of New Generation Geometrical Product Specifications. Higher Education Press, 2007(In Chinese)

[2] ISO/TS 174501-1, Geometrical Product Specifications (GPS)—General Concepts—Part 1: Model for Geometrical Specification and Verification, (2005)

DOI: 10.3403/30180685u

[3] ISO/TS 12780-2 Geometrical Product Specification (GPS)—Concentricity—Part2: Specification Operators, 2007.

[4] Dantan, Jean-Yves. Geometrical Product Specification – Model for Product Life Cycle, CAD Computer Aided Design, Vol. 40, No.4, pp.493-501, April (2008)

DOI: 10.1016/j.cad.2008.01.004

[5] Jian, Mao. Implementation Uncertainty Evaluation of Cylindricity Errors Based on Geometrical Product Specification (GPS), Journal of the International Measurement, Vol. 42, No.5, pp.742-747, June 2009.

DOI: 10.1016/j.measurement.2008.12.004

[6] M. F. Huang, X.Q. Li. On the Generation of the Specification Surface Model of Planar Feature with Flatness, Applied Mechanics and Materials, Vol. 16-19, No.2, pp.379-383, May 2009.

DOI: 10.4028/www.scientific.net/amm.16-19.379

[7] Bourdet P, Mathieu L, Lartigue C, et al. The Concept of Small Displacement Torsors in Metrology, Series on Advances in Mathematics for Applied Sciences, 40:110-122, 1996.

[8] X. H. Zhang, J. L. Du. Computer Graphics. Beijing University of Posts and Telecommunications Press, 2006. (In Chinese)
