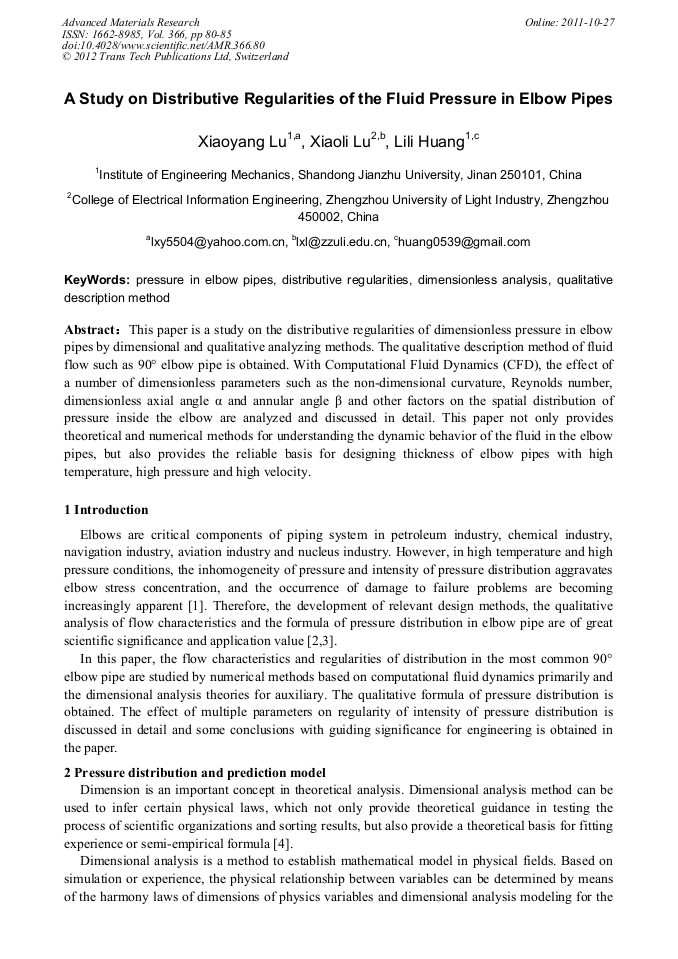

A Study on Distributive Regularities of the Fluid Pressure in Elbow Pipes

Abstract:

This paper is a study on the distributive regularities of dimensionless pressure in elbow pipes by dimensional and qualitative analyzing methods. The qualitative description method of fluid flow such as 90° elbow pipe is obtained. With Computational Fluid Dynamics (CFD), the effect of a number of dimensionless parameters such as the non-dimensional curvature, Reynolds number, dimensionless axial angle α and annular angle β and other factors on the spatial distribution of pressure inside the elbow are analyzed and discussed in detail. This paper not only provides theoretical and numerical methods for understanding the dynamic behavior of the fluid in the elbow pipes, but also provides the reliable basis for designing thickness of elbow pipes with high temperature, high pressure and high velocity.

• Periodical: Advanced Materials Research (Volume 366)
• Pages: 80-85
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.366.80
• Online since: October 2011
• Authors: Xiao Yang Lu, Xiao Li Lu, Li Li Huang
• Keywords: Dimensionless Analysis, Distributive Regularity, Pressure in Elbow Pipe, Qualitative Description Method

References

[1] Lu Xiaoyang, Lu Xiaoli, Tang Bingtao, et al. Numerical analysis of flow characteristics for elbow of a oil pipelines paper title [C]. 2010 International Conference on Mechanic Auto mation and Control Engineering, MACE2010, 2010: 2415-2418.

DOI: 10.1109/mace.2010.5535869

[2] Sudo K. Experimental investigation on turbulent flow in a circular-sectioned 90-degree bend [J]. Experiments in Fluids. 1998, (45): 42-49.

DOI: 10.1007/s003480050206

[3] Ma Aimei, Lu Xiaoyang, Sun Shen. Stress analysis and structural investigation of bending pipe [J]. Machinery Design & Manufacture, 2006, (3): 98-100.

[4] Ding Yu, Weng Peifen. Numerical study of theoretical model and flow characteristic in 90° elbow Pipe [J]. Chinese Journal of Computational Mechanics, 2004, 6(3): 314-315.

[5] Gao Hui, Guo Liejin, Zhang Ximin. Liquid-solid separation phenmena of two-phase turbulent flow in curved pipes [J]. International Journal of Heat and Mass Transfer, 2002, 45: 4995-5005.

DOI: 10.1016/s0017-9310(02)00207-7

[6] Li Tao, Li Angui. Numerical simulation and experimental investigation of pressure loss coefficient in HVAC rittings [J]. Journal of Shandong Jianzhu University, 2007, 22(2): 126-130.

[7] Zhu Lei. Numerical simulation of flow characteristics and experimental study of flow coefficient on elbow flowmeter [D]. Thesis. Xi'an: Xi'an University of Technology, (2008).
