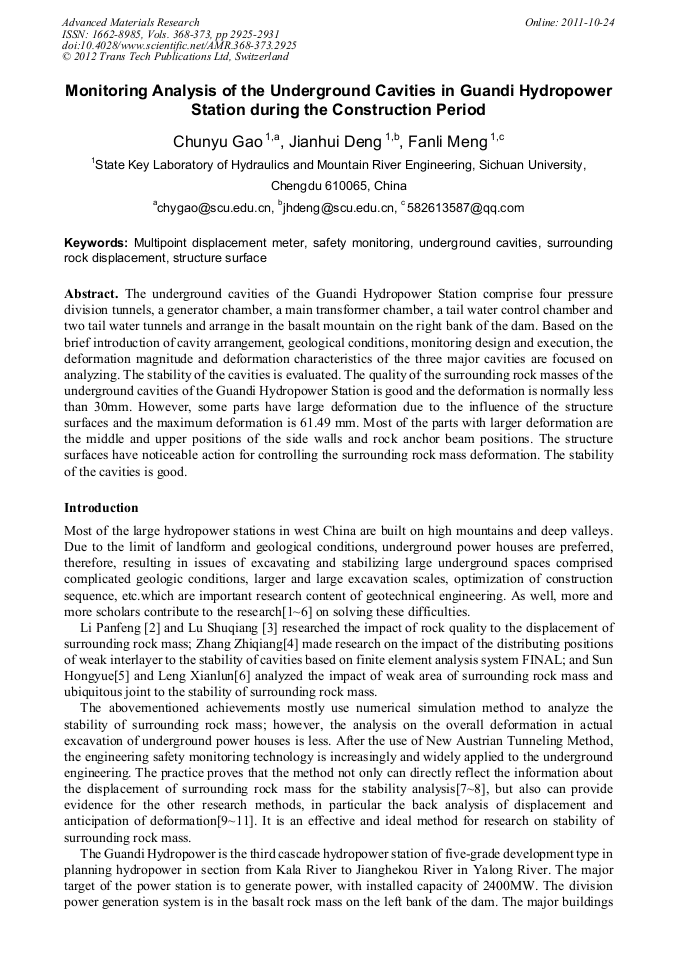

Monitoring Analysis of the Underground Cavities in Guandi Hydropower Station during the Construction Period

Abstract:

The underground cavities of the Guandi Hydropower Station comprise four pressure division tunnels, a generator chamber, a main transformer chamber, a tail water control chamber and two tail water tunnels and arrange in the basalt mountain on the right bank of the dam. Based on the brief introduction of cavity arrangement, geological conditions, monitoring design and execution, the deformation magnitude and deformation characteristics of the three major cavities are focused on analyzing. The stability of the cavities is evaluated. The quality of the surrounding rock masses of the underground cavities of the Guandi Hydropower Station is good and the deformation is normally less than 30mm. However, some parts have large deformation due to the influence of the structure surfaces and the maximum deformation is 61.49 mm. Most of the parts with larger deformation are the middle and upper positions of the side walls and rock anchor beam positions. The structure surfaces have noticeable action for controlling the surrounding rock mass deformation. The stability of the cavities is good.

• Periodical: Advanced Materials Research (Volumes 368-373)
• Pages: 2925-2931
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.368-373.2925
• Online since: October 2011
• Authors: Chun Yu Gao, Jian Hui Deng, Fan Li Meng
• Keywords: Multipoint Displacement Meter, Safety Monitoring, Structure Surface, Surrounding Rock Displacement, Underground Cavities

References

[1] YAN Changgen，LIU Tong，WU Faquan: Journal of Engineering Geology. Vol. 16 (2008)，p.84（in Chinese）

[2] LI Panfeng，ZHANG Zhuoyuan，TAO Lianjin: Journal of Geological Hazards and Environment Preservation.Vol.5（2004）,pp.82-86.（in Chinese）

[3] LU SHuqiang，JU Nengpan，XU Mo: Earth and Environment. Vol. 33（2005），p.319（in Chinese）

[4] ZHANG ZHiqiang，LI Ning，Swoboda G: Chinese Journal of Rock Mechanics and Engineering. Vol. 24（2005），p.3252 (in Chinese)

[5] SUN Hongyue，SHANG Yuequan，ZHANG Chunsheng: Chinese Journal of Rock Mechanics and Engineering. Vol. 23（2004），p.2192 (in Chinese)

[6] LENG Xianlun，SHENG Qian，ZHU Zeqi: China Civil Engineering Journal. Vol. 42 (2009), p.96（in Chinese）

[7] PENG Qi，WANG Dikai，DENG Jianhui: Chinese Journal of Rock Mechanics and Engineering. Vol. 26（2007），p.2583 (in Chinese)

[8] WANG Dikai, PENG Qi, TANG Rong: Chinese Journal of Rock Mechanics and Engineering. Vol. 26（2007），p.2125 (in Chinese)

[9] YANG Linde，YAN Jianping， WANG Yuezhao: Chinese Journal of Rock Mechanics and Engineering. Vol. 4（2005），p.212 (in Chinese)

[10] Li Ning，DUAN Xiaoqiang，CHEN Fangfang:Chinese Journal of Rock Mechanics and Engineering. Vol. 25（2006），p.1304（in Chinese）

[11] DONG Zhihong，DING Xiuli，LU Bo: Rock and Soil Mechanics. Vol. 29（2008），p.1562 (in Chinese)

[12] WANG Yisham，LIU Yongsheng，ZHANG Chengbai: Water Resources&Hydronower of Northeast. Vol. 10（2010） ，p.20（in Chinese）
