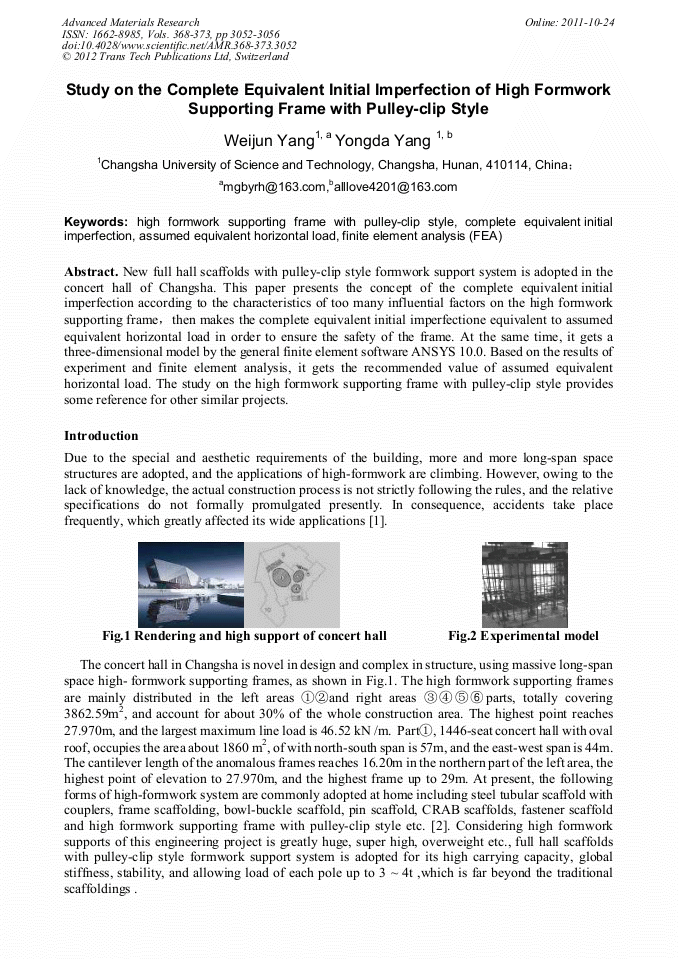

Study on the Complete Equivalent Initial Imperfection of High Formwork Supporting Frame with Pulley-Clip Style

Abstract:

New full hall scaffolds with pulley-clip style formwork support system is adopted in the concert hall of Changsha. This paper presents the concept of the complete equivalent initial imperfection according to the characteristics of too many influential factors on the high formwork supporting frame，then makes the complete equivalent initial imperfectione equivalent to assumed equivalent horizontal load in order to ensure the safety of the frame. At the same time, it gets a three-dimensional model by the general finite element software ANSYS 10.0. Based on the results of experiment and finite element analysis, it gets the recommended value of assumed equivalent horizontal load. The study on the high formwork supporting frame with pulley-clip style provides some reference for other similar projects.

• Periodical: Advanced Materials Research (Volumes 368-373)
• Pages: 3052-3056
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.368-373.3052
• Online since: October 2011
• Authors: Wei Jun Yang, Yong Da Yang
• Keywords: Assumed Equivalent Horizontal Load, Complete Equivalent Initial Imperfection, Finite Element Analysis (FEA), High Formwork Supporting Frame with Pulley-Clip Style

References

[1] Fankui Zeng, Xuebing Liu and Changming Hu: Journal of Qingdao Agricultural University (Natural Science). Vol. 24-4 (2007), p.308. (In Chinese)

[2] Changming Hu, Hongliang Liu and Fankui Zeng: Industrial Construction. Vol. 40-2 (2010), p.1. (In Chinese)

[3] Changming Hu, Pan Dong and Qin Shen: Construction Technology. Vol. 38-4 (2009), p.71. (In Chinese)

[4] Hetao Hou and Guoqiang Li: Engineering Mechanics. Vol. 25-3 (2008), p.85. (In Chinese)

[5] Kui Zhou and Qigen Song: Progress in Steel Building Structures. Vol. 9-1 (2007), p.57. (In Chinese)

[6] JGJ130- 2001, Safety Specification for Fastener-Type Steel-Tube Scaffold in Architecture and Construction. (In Chinese)
