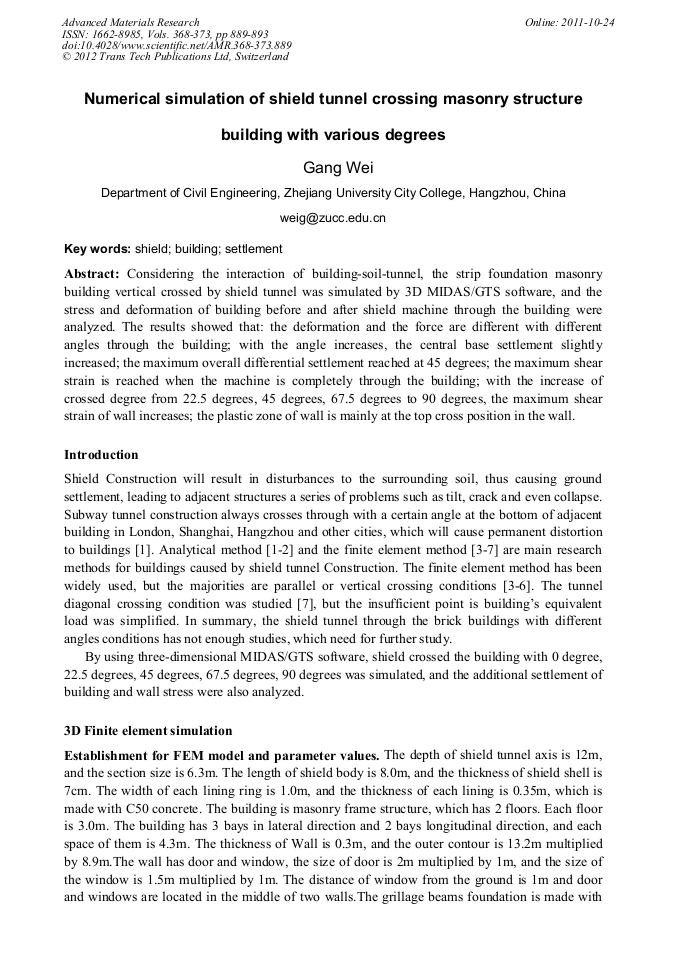

Numerical Simulation of Shield Tunnel Crossing Masonry Structure Building with Various Degrees

Abstract:

Considering the interaction of building-soil-tunnel, the strip foundation masonry building vertical crossed by shield tunnel was simulated by 3D MIDAS/GTS software, and the stress and deformation of building before and after shield machine through the building were analyzed. The results showed that: the deformation and the force are different with different angles through the building; with the angle increases, the central base settlement slightly increased; the maximum overall differential settlement reached at 45 degrees; the maximum shear strain is reached when the machine is completely through the building; with the increase of crossed degree from 22.5 degrees, 45 degrees, 67.5 degrees to 90 degrees, the maximum shear strain of wall increases; the plastic zone of wall is mainly at the top cross position in the wall.

• Periodical: Advanced Materials Research (Volumes 368-373)
• Pages: 889-893
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.368-373.889
• Online since: October 2011
• Authors: Gang Wei
• Keywords: Building, Settlement, Shield

References

[1] Xuan HAN, Jamie R Standing, Ning Li. Analysis of tunneling-induced twist deformation of buildings. China Civil Engineering Journal, Vol.43, pp.82-88, (2010). (In Chinese)

[2] CHUNGSIK Y, JAE-HOON K. A web-based tunneling- induced building/utility damage assessment system: TURISK. Tunnelling and Underground Space Technology, Vol.18, pp.497-511, (2003). (In Chinese)

DOI: 10.1016/s0886-7798(03)00067-1

[3] Zhi DING. Research of Interaction between Shield Tunnel and Adjacent Structure[D]. Hangzhou: Zhejiang University, (2007). (In Chinese)

[4] Chang PENG, Yu-lin JI, Han-bin LUO, et al. Numerical simulation of effects of double-tube parallel shield tunneling on neighboring building. Chinese Journal of Rock Mechanics and Engineering. Vol.27(Supp.2), pp.3868-3874, (2008). (In Chinese)

[5] Hao LI, Tao WANG, Ri-qing XU. Numerical analysis of the influence of tunneling on ground movement and adjacent frame structure. Journal of Railway Engineering Society, Vol. 9, pp.58-61, (2008). (In Chinese)

[6] MROUEH H, SHAHROUR I. A full 3-D finite element analysis of tunneling-adjacent structures interaction. Computers and Geotechnics, Vol.30, pp.245-253, (2003).

DOI: 10.1016/s0266-352x(02)00047-2

[7] Bu-kun SU, Yu-hua SHI, Hong-bin ZHANG. The impact and reinforced effect analysis of subway construction to upper housing. Pearl River Modern Construction, Vol.6, pp.30-33, (2009). (In Chinese)

[8] Li-hua XU, Xin-ying AI, Jia-li YU, et al. Analysis of impact of tunnel construction on masonry buildings in xiamen airport road. Chinese Journal of Rock Mechanics and Engineering, Vol.29, pp.583-592, (2010). (In Chinese)

[9] Gang WEI, Shi-min ZHANG, Jing-jing QI, et al. Study of calculation method of ground deformation induced by shield tunnel construction. Chinese Journal of Rock Mechanics and Engineering, Vol.25(Supp.1), p.3317－3323,(2006). (In Chinese)

[10] Boscardin M D, Cording E J. Building response to excavation-induced settlement. Journal of Geotechnical Engineering, Vol.115 (Supp.1), pp.1-21, (1989). (In Chinese)

DOI: 10.1061/(asce)0733-9410(1989)115:1(1)
