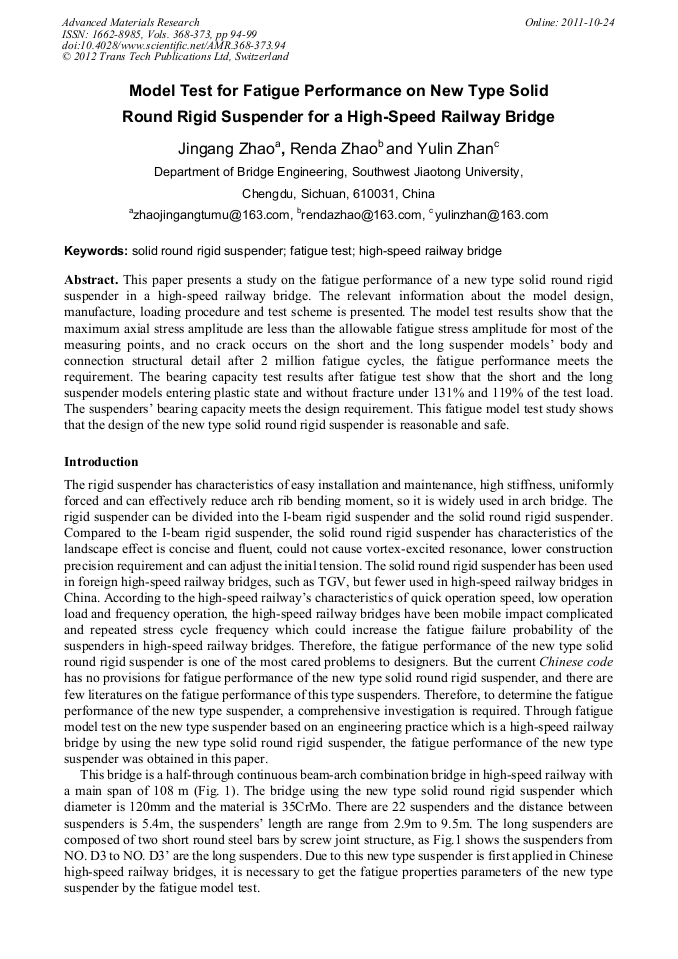

Model Test for Fatigue Performance on New Type Solid Round Rigid Suspender for a High-Speed Railway Bridge

Abstract:

This paper presents a study on the fatigue performance of a new type solid round rigid suspender in a high-speed railway bridge. The relevant information about the model design, manufacture, loading procedure and test scheme is presented. The model test results show that the maximum axial stress amplitude are less than the allowable fatigue stress amplitude for most of the measuring points, and no crack occurs on the short and the long suspender models’ body and connection structural detail after 2 million fatigue cycles, the fatigue performance meets the requirement. The bearing capacity test results after fatigue test show that the short and the long suspender models entering plastic state and without fracture under 131% and 119% of the test load. The suspenders’ bearing capacity meets the design requirement. This fatigue model test study shows that the design of the new type solid round rigid suspender is reasonable and safe.

• Periodical: Advanced Materials Research (Volumes 368-373)
• Pages: 94-99
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.368-373.94
• Online since: October 2011
• Authors: Jin Gang Zhao, Ren Da Zhao, Yu Lin Zhan
• Keywords: Fatigue Test, High-Speed Railway Bridge, Solid Round Rigid Suspender

References

[1] Hui Zhang. Under-supported CFST Arch Bridge's Suspender Force Analysis[D]. Xi'an University of Architecture and Technology: Master thesis. 2009. (in Chinese)

[2] The Ministry of Railway of The People's Republic of China. Code for Design on Steel Structure of Railway Bridge（TB 10002.2-2005）[S]. China Railway Publishing House,2005. (in Chinese)

[3] Steel, concrete and composite bridges-Part10: code of practice for fatigue [S]. British Standard BS5400, 1980. (in English)

[4] Fisher J W. Fatigue behavior of full-scale welded bridge attachments [R]. NCHRP Report 227, 1980. (in English)

[5] Wenhua Guo, Jun Wu. Fatigue analysis of suspender of arch bridge used for highway traffic and light-railway traffic[J]. Journal of Railway Science and Engineering. 2008,5(3):6-10. (in Chinese)

[6] Lixin Bao, Xing Wei, Jun Li, Xiaozhen Li, Shizhong Qiang, Weiping Ren. Model Test For Fatigue Performance of Anchorage in Cable-Stayed Bridge with Steel Box Girder[J].Engineering Mechanics.2007,24(8):127-132. (in Chinese)

[7] Yuling Zhang, Jiyan Pan. The Research of The Fatigue Design on High Speed Railway Steel Bridge[J].Steel Construction.1999,14(3):1-3. (in Chinese)

[8] A. Pipinato, C. Pellegrino, C. Modena. Fatigue assessment of highway steel bridges in presence of seismic loading[J]. Engineering Structures. 2011,33(1):202-209. (in English)

DOI: 10.1016/j.engstruct.2010.10.008
