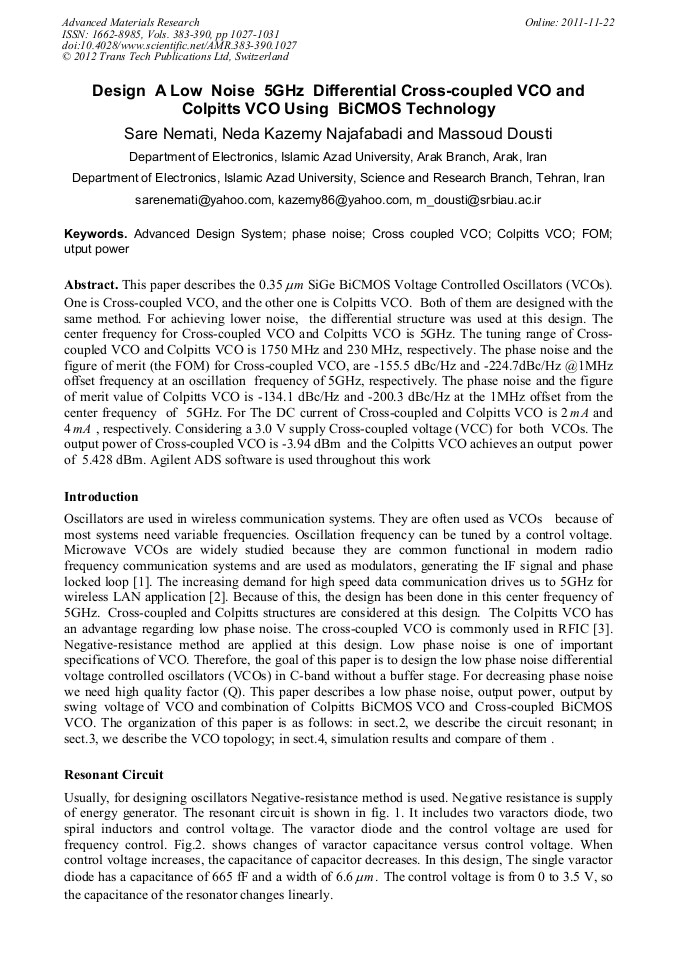

Design a Low Noise 5GHz Differential Cross-Coupled VCO and Colpitts VCO Using BiCMOS Technology

Abstract:

This paper describes the 0.35 um SiGe BiCMOS Voltage Controlled Oscillators (VCOs). One is Cross-coupled VCO, and the other one is Colpitts VCO. Both of them are designed with the same method. For achieving lower noise, the differential structure was used at this design. The center frequency for Cross-coupled VCO and Colpitts VCO is 5GHz. The tuning range of Cross-coupled VCO and Colpitts VCO is 1750 MHz and 230 MHz, respectively. The phase noise and the figure of merit (the FOM) for Cross-coupled VCO, are -155.5 dBc/Hz and -224.7dBc/Hz @1MHz offset frequency at an oscillation frequency of 5GHz, respectively. The phase noise and the figure of merit value of Colpitts VCO is -134.1 dBc/Hz and -200.3 dBc/Hz at the 1MHz offset from the center frequency of 5GHz. For The DC current of Cross-coupled and Colpitts VCO is 2 mA and 4 mA , respectively. Considering a 3.0 V supply Cross-coupled voltage (VCC) for both VCOs. The output power of Cross-coupled VCO is -3.94 dBm and the Colpitts VCO achieves an output power of 5.428 dBm. Agilent ADS software is used throughout this work

You might also be interested in these eBooks

Manufacturing Science and Technology, ICMST2011

View Preview

Info:

Periodical:

Advanced Materials Research (Volumes 383-390)

Pages:

1027-1031

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.383-390.1027

Citation:

Cite this paper

Online since:

November 2011

Authors:

Sare Nemati, Neda Kazemy Najafabadi, Massoud Dousti

Keywords:

Advanced Design System, Colpitts VCO, Cross Coupled VCO, FOM, Phase Noise, Utput Power

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] ShengLyang, ChienFengLee, ChiaWei Chang, A Kband differential Colpitts cross-coupled VCO IN 0. 13CMOS, Solid State Electronics. (2009).

Google Scholar

[2] Yunseong Eo, Keechul Kim and Byungdu Oh, Low Noise 5 GHz Differential VCO Using InGaP/GaAs HBT Technology, IEEE MICROWAVE (2003).

DOI: 10.1109/lmwc.2003.815178

Google Scholar

[3] Herbet Zirath, Rumen Kozhuharov, Mattias Ferndahl, A x2 Coupled VCO with Ultra Low Phase Noise, IEEE ( 2004).

DOI: 10.1109/csics.2004.1392520

Google Scholar

[4] Hsieh HH, Lu LH. A highperformance CMOS voltagecontrolled oscillator for ultralowvoltage operations. IEEE Trans Microw Theory Tech (2007).

Google Scholar

[5] Han Yiping, Larson Lawrence E, Lie Donald YC. A low –voltage 12 GHz VCO in 0. 13 for OFDM Applications, SiRF(2006).

Google Scholar

[6] Hajimiri A, Lee TH. The Desing of low Noise Oscillators. Norwell M: Kluwer; (1999).

Google Scholar
