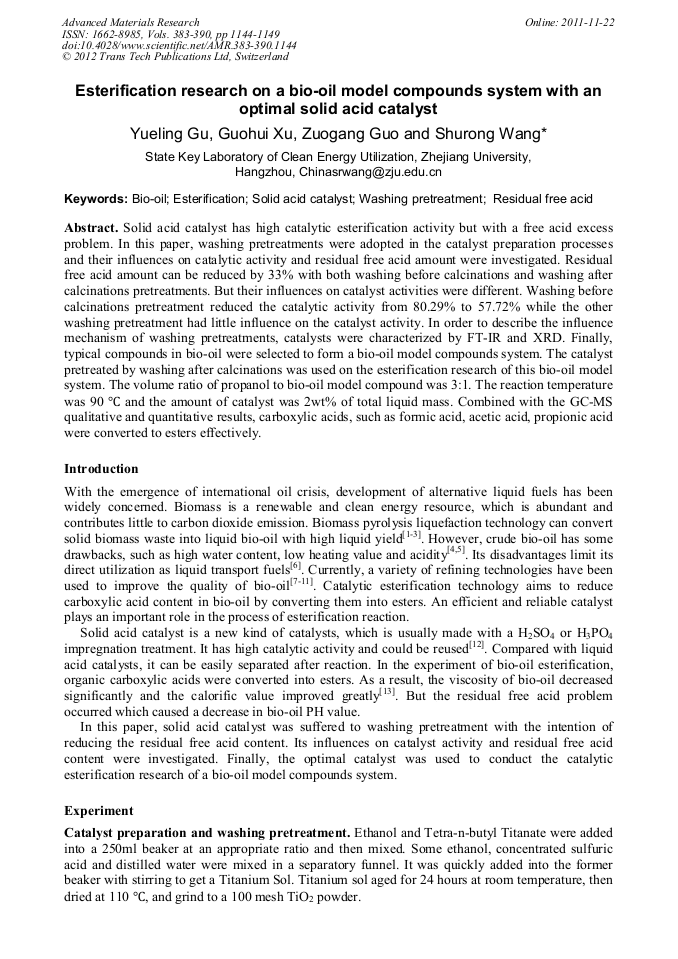

Esterification Research on a Bio-Oil Model Compounds System with an Optimal Solid Acid Catalyst

Abstract:

Solid acid catalyst has high catalytic esterification activity but with a free acid excess problem. In this paper, washing pretreatments were adopted in the catalyst preparation processes and their influences on catalytic activity and residual free acid amount were investigated. Residual free acid amount can be reduced by 33% with both washing before calcinations and washing after calcinations pretreatments. But their influences on catalyst activities were different. Washing before calcinations pretreatment reduced the catalytic activity from 80.29% to 57.72% while the other washing pretreatment had little influence on the catalyst activity. In order to describe the influence mechanism of washing pretreatments, catalysts were characterized by FT-IR and XRD. Finally, typical compounds in bio-oil were selected to form a bio-oil model compounds system. The catalyst pretreated by washing after calcinations was used on the esterification research of this bio-oil model system. The volume ratio of propanol to bio-oil model compound was 3:1. The reaction temperature was 90 °C and the amount of catalyst was 2wt% of total liquid mass. Combined with the GC-MS qualitative and quantitative results, carboxylic acids, such as formic acid, acetic acid, propionic acid were converted to esters effectively.

• Periodical: Advanced Materials Research (Volumes 383-390)
• Pages: 1144-1149
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.383-390.1144
• Online since: November 2011
• Authors: Yue Ling Gu, Guo Hui Xu, Zuo Gang Guo, Shu Rong Wang
• Keywords: Bio-Oil, Esterification, Residual Free Acid, Solid Acid Catalyst, Washing Pretreatment

References

[1] Abdullah N, G.H., Gerhauser H. Bio-oil derived from empty fruit bunches. Energy &Fuels, 2008. 87(12): pp.2606-2613.

DOI: 10.1016/j.fuel.2008.02.011

[2] Aho A , Kumar N, Lashkul AV. Catalytic pyrolysis of woody biomass in a fluidized bed reactor: Influence of the zeolite structure. Fuel, 2008. 87(12): pp.2493-2501.

DOI: 10.1016/j.fuel.2008.02.015

[3] Bridgwater, A.V. a.G.V.C., Peacocke, Fast pyrolysis processes for biomass. Renewable &Sustainable Energy Reviews, 2000. 4(1): pp.1-73.

DOI: 10.1016/s1364-0321(99)00007-6

[4] Shurong Wang, Zhongyang Luo., Hong Tan, The analysis of biomass pyrolysis oil properties Engineering Thermal Physics, 2004. 25(6): pp.1049-1052.

[5] Qi Wang., Research on Production and Utilization of Bio-oil from Biomass Fast Pyrolysis. ZheJiang University, (2008).

[6] Yan Yao, Shurong. Wang., Qi Wang. Research on The Bio-oil Substitution of Power Fuel Power Engineering, 2007. 27(3): pp.458-462.

[7] Pindopia R V, l.J.Y., Hawkes J E. Structural Characterization of biomass pyrolysis tars/oils. Fuel, 1997. 16(11): pp.1013-1023.

[8] Srinivas S T, D.A.K., Bakhshi N N, Thermal and Catalytic Upgrading of a biomass-Derived Oil in DualReaction Systerm. Chem Eng, 2000. 78(2): pp.343-354.

DOI: 10.1002/cjce.5450780209

[9] Yang Tang, Wanjin Yu, Liuye Mo, Hui Lou and XiaomingZheng. One-stephydrogenation-esterification of aldehyde and acid to ester over bifunctional Pt catalysts: A model reaction as novel route for catalytic upgrading of fast pyrolysis bio-oil. . Energy & Fuels, 2008. 22(5): pp.3484-3488.

DOI: 10.1021/ef800148q

[10] Xu Junming, Jiang Jianchuna, Sun Yunjuana and Lu Yanju. Bio-oil upgrading by means of ethyl ester production in reactive distillation to remove water and to improve storage and fuel characteristics. Biomass & Bioenergy, 2008. 32(11): pp.1056-1061.

DOI: 10.1016/j.biombioe.2008.02.002

[11] Zhe Tang, Q.L., Ying Zhang, One Step Bio-Oil Upgrading through Hydrotreatment, Esterication, and Cracking Ind. Eng. Chem. , 2009. 48: pp.6923-6929.

DOI: 10.1021/ie900108d

[12] P, G., precipitation of solid super acid with Cui Bo low-temperature method and their Catalysis in esterification Petrochemical, 2004. 33(1): pp.5-8.

[13] Qi Zhang, jie Chang, TieJunWang and Ying Xu, upgrading Bio-oil over different solid Catalysts. Energy Fuel, 2006. 20(6): pp.2717-2720.

DOI: 10.1021/ef060224o

[14] Zhang Q, C.J., Wang T J, Preparation of Solid acid catalyst SO42-/TiO2-SiO2 and catalytic esterification activity. Catalyst, 2006. 27(11): pp.1033-1038.

[15] Nattaporn Lohitharn, B.H.S., Upgrading of bio-oil: Effect of light aldehydes on acetic acid removal via esterication. Catalysis Communications 2009. 11 pp.96-99.

DOI: 10.1016/j.catcom.2009.09.002
