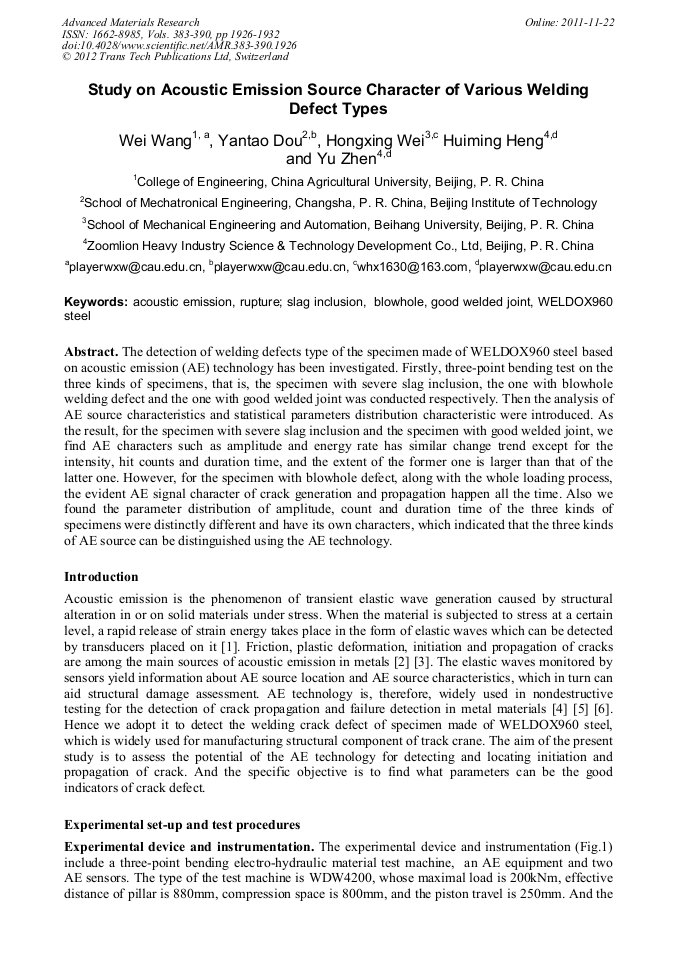

Study on Acoustic Emission Source Character of Various Welding Defect Types

Abstract:

The detection of welding defects type of the specimen made of WELDOX960 steel based on acoustic emission (AE) technology has been investigated. Firstly, three-point bending test on the three kinds of specimens, that is, the specimen with severe slag inclusion, the one with blowhole welding defect and the one with good welded joint was conducted respectively. Then the analysis of AE source characteristics and statistical parameters distribution characteristic were introduced. As the result, for the specimen with severe slag inclusion and the specimen with good welded joint, we find AE characters such as amplitude and energy rate has similar change trend except for the intensity, hit counts and duration time, and the extent of the former one is larger than that of the latter one. However, for the specimen with blowhole defect, along with the whole loading process, the evident AE signal character of crack generation and propagation happen all the time. Also we found the parameter distribution of amplitude, count and duration time of the three kinds of specimens were distinctly different and have its own characters, which indicated that the three kinds of AE source can be distinguished using the AE technology.

• Periodical: Advanced Materials Research (Volumes 383-390)
• Pages: 1926-1932
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.383-390.1926
• Online since: November 2011
• Authors: Wei Wang, Yan Tao Dou, Hong Xing Wei, Hui Ming Heng, Yu Zhen
• Keywords: Acoustic Emission (AE), Blowhole, Good Welded Joint, Rupture, Slag Inclusion, WELDOX960 Steel

References

[1] C. K. Tan, P. Irving, and D. Mba. A comparative experimental study on the diagnostic and prognostic capabilities of acoustics emission, vibration and spectrometric oil analysis for spur gears, Mechanical Systems and Signal Processing, vol. 21, 2007, p.208.

DOI: 10.1016/j.ymssp.2005.09.015

[2] A. Choudhury and N. Tandon. Application of acoustic emission technique for the detection of defects in rolling element bearings, Tribology International, vol. 33, 2000, p.39–45.

DOI: 10.1016/s0301-679x(00)00012-8

[3] Y. Yu, J. Choi, J. Kweon, and D. K, A study on the failure detection of composite materials using an acoustic emission. Composite Structures, vol. 75, 2006, p.163–169.

DOI: 10.1016/j.compstruct.2006.04.070

[4] T. Yan, P. Theobald, and B.E. Jones, A self-calibrating piezoelectric transducer with integral sensor for in situ energy calibration of acoustic emission, NDT&E International, vol. 35, 2002, p.459–464.

DOI: 10.1016/s0963-8695(02)00021-x

[5] C. U. Grosse and F. Finck. Quantitative evaluation of fracture processes in concrete using signal-based acoustic emission techniques, Cement & Concrete Composites, vol. 28, 2006, p.330–336.

DOI: 10.1016/j.cemconcomp.2006.02.006

[6] N. Tandon, A. Choudhury. A review of vibration and acoustic measurement methods for the detection of defects in rolling element bearings,. Tribology International, vol. 32, 1999, p.469–480.

DOI: 10.1016/s0301-679x(99)00077-8
