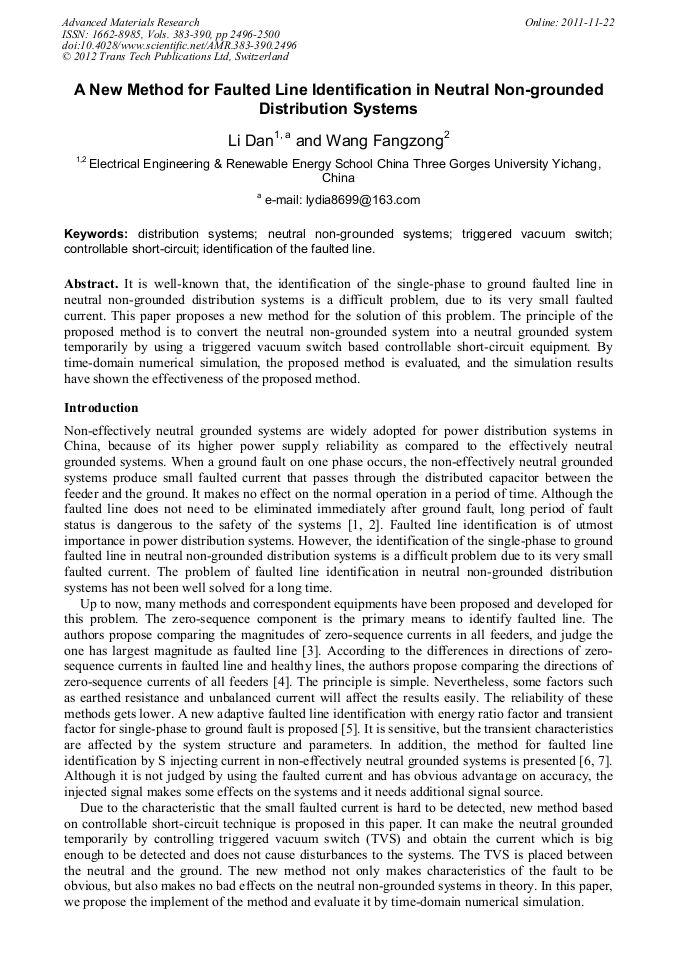

A New Method for Faulted Line Identification in Neutral Non-Grounded Distribution Systems

Abstract:

It is well-known that, the identification of the single-phase to ground faulted line in neutral non-grounded distribution systems is a difficult problem, due to its very small faulted current. This paper proposes a new method for the solution of this problem. The principle of the proposed method is to convert the neutral non-grounded system into a neutral grounded system temporarily by using a triggered vacuum switch based controllable short-circuit equipment. By time-domain numerical simulation, the proposed method is evaluated, and the simulation results have shown the effectiveness of the proposed method.

• Periodical: Advanced Materials Research (Volumes 383-390)
• Pages: 2496-2500
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.383-390.2496
• Online since: November 2011
• Authors: Dan Li, Fang Zong Wang
• Keywords: Controllable Short-Circuit, Distribution System, Identification of the Faulted Line, Neutral Non-Grounded Systems, Triggered Vacuum Switch

References

[1] T. Baldwin, F. Renovich, L. F. Saunders, and D. Lubkeman, Fault locating in ungrounded and high-resistance grounded systems, IEEE Transactions on Industry Applications, vol. 37, pp.1152-1159, Jul. /Aug. (2001).

DOI: 10.1109/28.936408

[2] Q. Q. Jia, C. X. Dou, Z. Q. Bo, N. Wang, and J. Tian, An integrated phase to ground fault protection for neutral compensated power networks, IEEE Power Engineering Society General Meeting, 2007, pp.1-8, doi: 10. 1109/PES. 2007. 386244.

DOI: 10.1109/pes.2007.386244

[3] B. Xiao, H. C. Shu, and F. Gao, Survey of the methods of fault line selection for single-phase-to-earth fault in networks with ungrounded neutral, Relay, vol. 29, pp.16-20, Apr. 2001(in Chinese).

[4] L. Cheng and Q. F. Chen, A survey on faulty line selection technology for single-phase grounded transmission line in small current neutral grounded system, Power System Technology, vol. 33, pp.219-224, Oct. 2009(in Chinese).

[5] Y. X. Zhang and Q. L. Wang, New method for single-phase-to-ground fault feeder selection based on analysis of fault transient characteristics, Automatic of Electric Power Systems, vol. 33, pp.76-80, Aug. 2009(in Chinese).

[6] H. F. Zhang, Z. C. Pan, and Z. Z. Sang, Injecting current based method for fault location in neutral isolated power system, Automatic of Electric Power Systems, vol. 28, pp.64-66, Feb. 2004(in Chinese).

[7] Q. T. Guo and T. Wu, Survey of the methods to select fault line in neutral point ineffectively grounded power system, Power System Protection and Control, vol. 38, pp.146-152, Jan. 2010(in Chinese).

[8] M. F. Liao, J. Y. Zou, X. Y. Duan, C. Zhao, and X. L. Bai, Overview on techniques of high-performance triggered vacuum switch, High Voltage Apparatus, vol. 42, pp.51-54, Feb. 2006(in Chinese).
