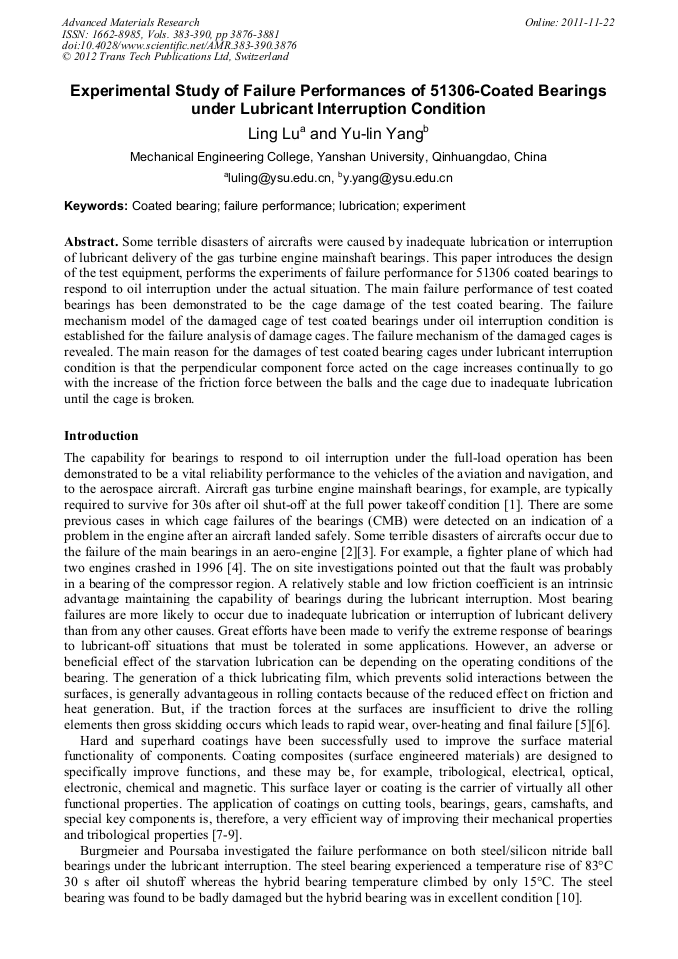

Experimental Study of Failure Performances of 51306-Coated Bearings under Lubricant Interruption Condition

Abstract:

Some terrible disasters of aircrafts were caused by inadequate lubrication or interruption of lubricant delivery of the gas turbine engine mainshaft bearings. This paper introduces the design of the test equipment, performs the experiments of failure performance for 51306 coated bearings to respond to oil interruption under the actual situation. The main failure performance of test coated bearings has been demonstrated to be the cage damage of the test coated bearing. The failure mechanism model of the damaged cage of test coated bearings under oil interruption condition is established for the failure analysis of damage cages. The failure mechanism of the damaged cages is revealed. The main reason for the damages of test coated bearing cages under lubricant interruption condition is that the perpendicular component force acted on the cage increases continually to go with the increase of the friction force between the balls and the cage due to inadequate lubrication until the cage is broken.

• Periodical: Advanced Materials Research (Volumes 383-390)
• Pages: 3876-3881
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.383-390.3876
• Online since: November 2011
• Authors: Ling Lu, Yu Lin Yang
• Keywords: Coated Bearing, Experiment, Failure Performance, Lubrication

References

[1] G. Hamburg, P. Cowley, and R. Valori, Operation of an all-ceramic mainshaft roller bearing in a J-402 gas-turbine engine, Lubrication Eng. Vol. 37 (7), p.407–415, July (1981).

[2] Berkovits, Estimation of loads causing fatigue failures in accident investigations, Engineering Failure Analysis, Vol. 2(3), pp.215-226, (1995).

DOI: 10.1016/1350-6307(95)00013-g

[3] A. Tauqir, I. Salam, A. Haqul, and A. Q. Khan, Causes of fatigue failure in the main bearing of an aero-engine, Engineering Failure Analysis, Vol. 7(2), pp.127-144, (2000).

DOI: 10.1016/s1350-6307(99)00009-6

[4] A. Salam, A. Tauqir, Ul Haq and A. Q. Khan, An air crash due to fatigue failure of a ball bearing, Engineering Failure Analysis, Vol. 5(4), pp.261-269, (1998).

DOI: 10.1016/s1350-6307(98)00024-7

[5] J.V. Poplawski, D.R. Atwell, M.J. Lubas and V. Odessky, Predicting steady-state temperature, life, skid, and film thickness in greased preloaded hybrid ball bearing, J. Eng. Gas Turbines Power, Trans. ASME vol. 118, p.443–452, (1996).

DOI: 10.1115/1.2816609

[6] C.R. Gentle, Bearings with ceramic balls–the effect of reduced lubricant supply on the minimum load, in: Proceedings of the Institution of Mechanical Engineering, Part J: J. Eng. Tribol., 208 (J3) 253–256, (1994).

DOI: 10.1243/pime_proc_1994_208_380_02

[7] K. Holmberg, H. Ronkainen and A. Matthews, Tribology of thin coatings, Ceramics International, Vol. 26(7), pp.787-795, (2000).

DOI: 10.1016/s0272-8842(00)00015-8

[8] H. Ronkainen, A. Laukkanen and K. Holmberg, Friction in a coated surface deformed by a sliding sphere, Wear, vol. 202, pp.1034-1049, August (2007).

DOI: 10.1016/j.wear.2007.01.103

[9] K. Holmberg, H. Ronkainen, A. Laukkanen and K. Wallin, Friction and wear of coated surfaces – scales, modelling and simulation of tribomechanisms, Surface & coatings technology, vol. 263, pp.1315-1323, May (2007).

DOI: 10.1016/j.surfcoat.2007.07.105

[10] L. Burgmeier, and M. Poursaba, Ceramic hybrid bearings in air-cycle machines, J. Eng. Gas Turbines Power, vol. 118 (1), p.184–190, (1996).

DOI: 10.1115/1.2816537

[11] Y. L. Yang, Evaluation of Rolling Contact Fatigue Resistance for Coated Components, , PhD Thesis, Hull University, UK, (2003).
