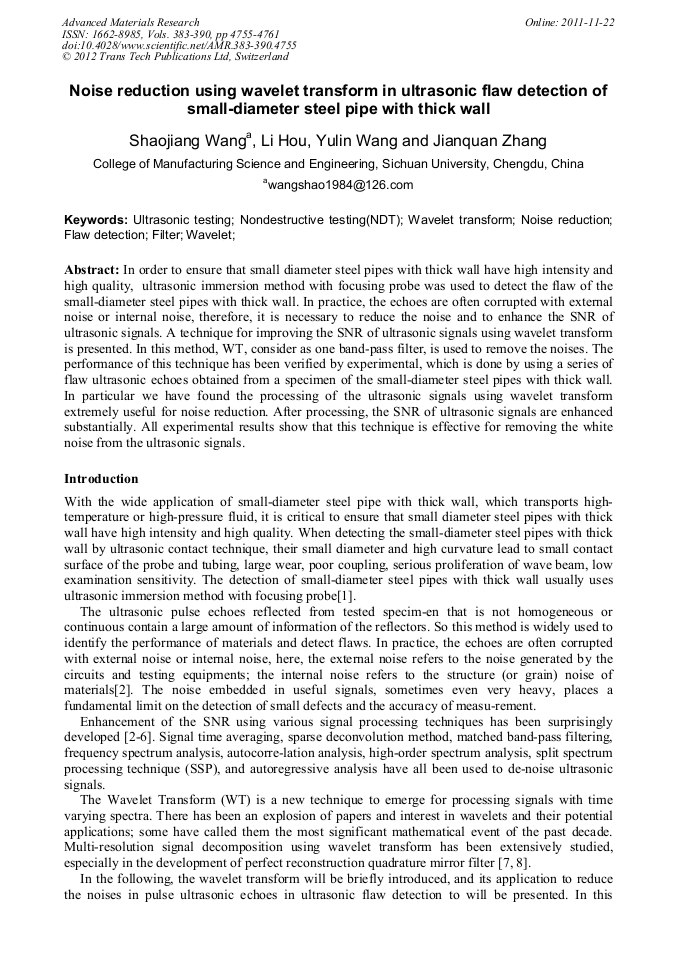

Noise Reduction Using Wavelet Transform in Ultrasonic Flaw Detection of Small-Diameter Steel Pipe with Thick Wall

Abstract:

In order to ensure that small diameter steel pipes with thick wall have high intensity and high quality, ultrasonic immersion method with focusing probe was used to detect the flaw of the small-diameter steel pipes with thick wall. In practice, the echoes are often corrupted with external noise or internal noise, therefore, it is necessary to reduce the noise and to enhance the SNR of ultrasonic signals. A technique for improving the SNR of ultrasonic signals using wavelet transform is presented. In this method, WT, consider as one band-pass filter, is used to remove the noises. The performance of this technique has been verified by experimental, which is done by using a series of flaw ultrasonic echoes obtained from a specimen of the small-diameter steel pipes with thick wall. In particular we have found the processing of the ultrasonic signals using wavelet transform extremely useful for noise reduction. After processing, the SNR of ultrasonic signals are enhanced substantially. All experimental results show that this technique is effective for removing the white noise from the ultrasonic signals.

• Periodical: Advanced Materials Research (Volumes 383-390)
• Pages: 4755-4761
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.383-390.4755
• Online since: November 2011
• Authors: Shao Jiang Wang, Li Hou, Yu Lin Wang, Jian Quan Zhang
• Keywords: Filter, Flaw Detection, Noise Reduction, Nondestructive Testing (NDT), Ultrasonic Testing (UT), Wavelet, Wavelet Transform (WT)

References

[1] Rose, J.L., Ultrasonic Waves in Solid Media. Vol. 4; 5. 1999, England, Cambridge.: Cambridge University Press. 454.

[2] Chen, J., Y. Shi, and S. Shi, Noise analysis of digital ultrasonic nondestructive evaluation system. International Journal of Pressure Vessels and Piping, 1999. 76(9): pp.619-630.

DOI: 10.1016/s0308-0161(99)00052-6

[3] Gustafsson, M.G. and T. Stepinski, Studies of split spectrum processing, optimal detection, and maximum likelihood amplitude estimation using a simple clutter model. Ultrasonics, 1997. 35(1): pp.31-52.

DOI: 10.1016/s0041-624x(96)00084-4

[4] Wei, L., Z.Y. Huang, and P.W. Que, Sparse deconvolution method for improving the time-resolution of ultrasonic NDE signals. Ndt & E International, 2009. 42(5): pp.430-434.

DOI: 10.1016/j.ndteint.2009.01.009

[5] Kim, J., L. Udpa, and S. Udpa, Multi-stage adaptive noise cancellation for ultrasonic NDE. Ndt & E International, 2001. 34(5): pp.319-328.

DOI: 10.1016/s0963-8695(00)00046-3

[6] Honarvar and F., Improving the time-resolution and signal-to-noise ratio of ultrasonic NDE signals. Ultrasonics, 2004. 41(9): pp.755-763.

DOI: 10.1016/j.ultras.2003.09.004

[7] Ji, H. and C. Fermuller, Robust Wavelet-Based Super-Resolution Reconstruction: Theory and Algorithm. Ieee Transactions on Pattern Analysis and Machine Intelligence, 2009. 31(4): pp.649-660.

DOI: 10.1109/tpami.2008.103

[8] Kotteri, K.A., A.E. Bell, and J.E. Carletta, Design of multiplierless, high-performance, wavelet filter banks with image compression applications. Ieee Transactions on Circuits and Systems I-Regular Papers, 2004. 51(3): pp.483-494.

DOI: 10.1109/tcsi.2003.820234

[9] Mallat, S., A Wavelet Tour of Signal Processing, ed. S. Edition. 1999: Academic Press.

[10] Burrus, C.S., R.A. Gopinath, and H. Guo, Introduction to Wavelets and Wavelet Transforms: A Primer. 1997, New Jersey: Prentice Hall.

[11] Matz, V., et al., Signal-to-noise ratio enhancement based on wavelet filtering in ultrasonic testing. Ultrasonics, 2009. 49(8): pp.752-759.

DOI: 10.1016/j.ultras.2009.05.010
