Analysis and Optimization Design of Self Magnetic-Suspension Permanent Magnet Linear Synchronous Motor

Abstract:

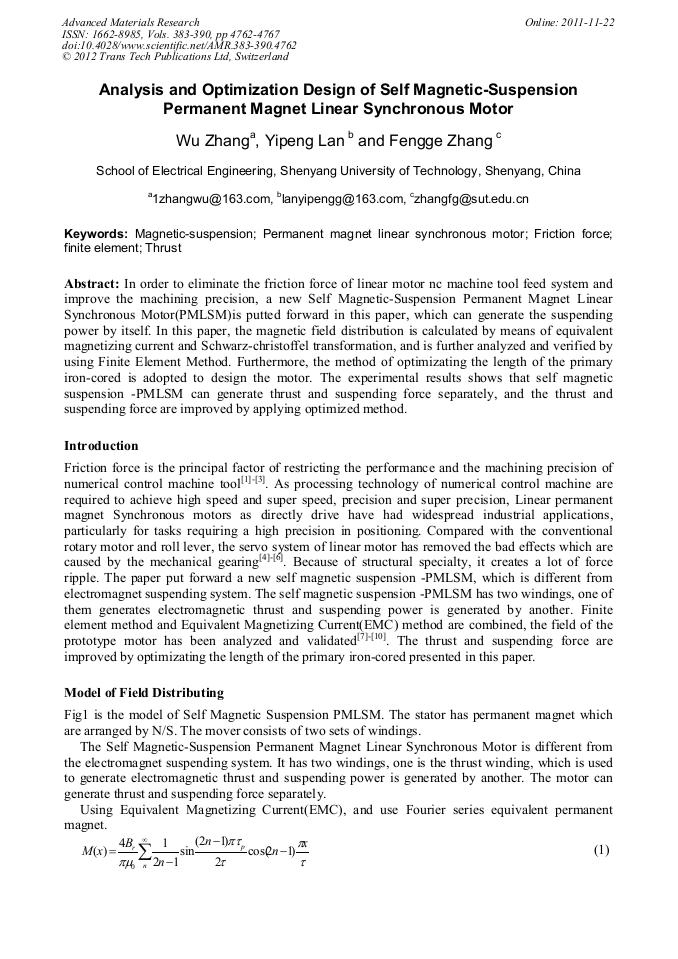

In order to eliminate the friction force of linear motor nc machine tool feed system and improve the machining precision, a new Self Magnetic-Suspension Permanent Magnet Linear Synchronous Motor(PMLSM)is putted forward in this paper, which can generate the suspending power by itself. In this paper, the magnetic field distribution is calculated by means of equivalent magnetizing current and Schwarz-christoffel transformation, and is further analyzed and verified by using Finite Element Method. Furthermore, the method of optimizating the length of the primary iron-cored is adopted to design the motor. The experimental results shows that self magnetic suspension -PMLSM can generate thrust and suspending force separately, and the thrust and suspending force are improved by applying optimized method.

• Periodical: Advanced Materials Research (Volumes 383-390)
• Pages: 4762-4767
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.383-390.4762
• Online since: November 2011
• Authors: Wu Zhang, Yi Peng Lan, Feng Ge Zhang
• Keywords: Finite Element, Friction Force, Magnetic Suspension, Permanent Magnet Linear Synchronous Motor (PMLSM), Thrust
