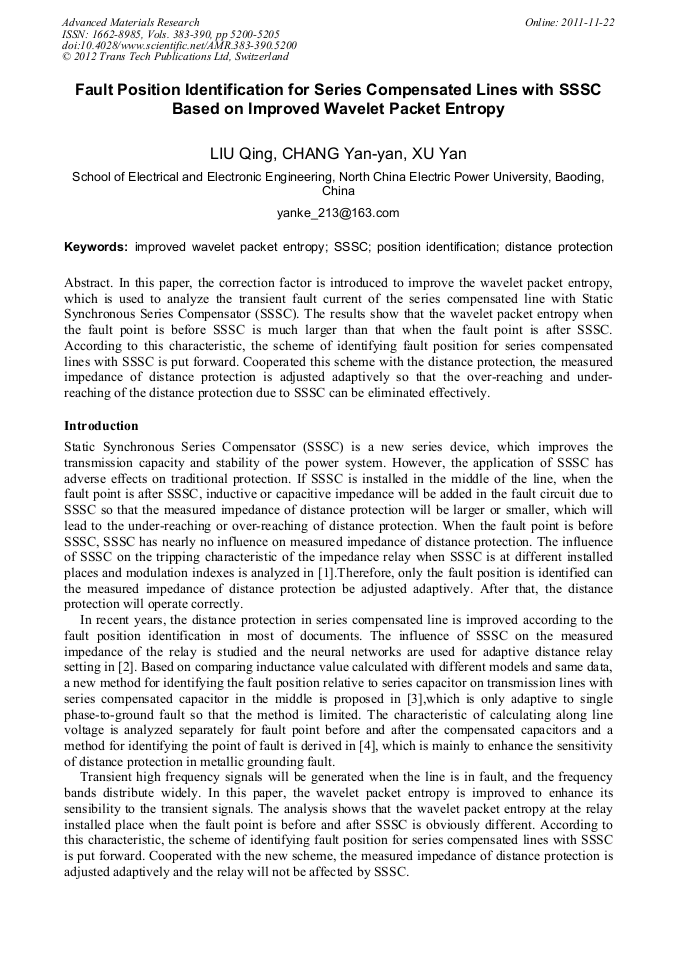

Fault Position Identification for Series Compensated Lines with SSSC Based on Improved Wavelet Packet Entropy

Abstract:

In this paper, the correction factor is introduced to improve the wavelet packet entropy, which is used to analyze the transient fault current of the series compensated line with Static Synchronous Series Compensator (SSSC). The results show that the wavelet packet entropy when the fault point is before SSSC is much larger than that when the fault point is after SSSC. According to this characteristic, the scheme of identifying fault position for series compensated lines with SSSC is put forward. Cooperated this scheme with the distance protection, the measured impedance of distance protection is adjusted adaptively so that the over-reaching and under-reaching of the distance protection due to SSSC can be eliminated effectively.

• Periodical: Advanced Materials Research (Volumes 383-390)
• Pages: 5200-5205
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.383-390.5200
• Online since: November 2011
• Authors: Qing Liu, Yan Yan Chang, Yan Xu
• Keywords: Distance Protection, Improved Wavelet Packet Entropy, Position Identification, SSSC

References

[1] Kazemi, S. Jamali, and H. Shateri. Effects of SSSC on Distance Relay Tripping Characteristic. Power and Energy Conference, 2006. PECon '06. IEEE International, 28-29 Nov. 2006, p.624 – 629.

DOI: 10.1109/pecon.2006.346726

[2] Hasan Rastegar and Amir P. Khansaryan. A New Method for Adaptive Distance Relay Setting in the Presence of SSSC Using Neural Networks. Industrial Electronics and Applications, 2006 1ST IEEE Conference on 24-26 May 2006, pp.1-8.

DOI: 10.1109/iciea.2006.257122

[3] SUONAN Jiale, CHEN Fufeng, QI Jun, and Wang Xiangbing. New Method for Identifying the Fault Location on Series Compensated Lines Based on Different Fault Models[J]. Proceedings of the CSEE, 2005, vol. 25, no. 1, pp.66-72.

[4] CHEN Fufeng, QIAN Guoming, and WEI Yao. Distance Protection Scheme for Series Compensated Lines Based on the Fault Point Identification [J]. Automation of Electric Power Systems, 2009, vol. 33, no. 21, pp.66-70.

[5] Shen Minfen, Li Zhancheng, and Sun Lisha. Wavelet Packet Entropy Used in EEG Signal Analysis[J]. Journal of Data Acquisition and Processing, 2005, vol. 20, no. 1, pp.48-53.

[6] Gui Zhonghua and Han Fengqin. Neural Network Based on Wavelet Packet-characteristic Entropy for Fault Diagnosis of Draft Tube[J]. Proceedings of the CSEE, 2005, vol. 25, no. 4, pp.99-102.

[7] He Zhengyou, Cai Yumei, and Qian Qingquan. A Study of Wavelet Entropy Theory and Its Application in Electric Power System Fault Detection[J]. Proceedings of the CSEE, 2005, vol. 25, no. 5, pp.38-43.

DOI: 10.1109/icima.2004.1384316

[8] Zhang Yuanyuan, Gong Qingwu, Chen Daojun, Zheng Xiuyu, and Shi Xi. Single-Phase Adaptive Reclose Based on Wavelet Packet Energy Entropy for HV Transmission Lines[J]. Electric Power Automation Equipment, 2009, vol. 29, no. 9, pp.11-16.
