Whole Transfer Matrix Method for the Critical Speeds of Skew Gear Transmission System

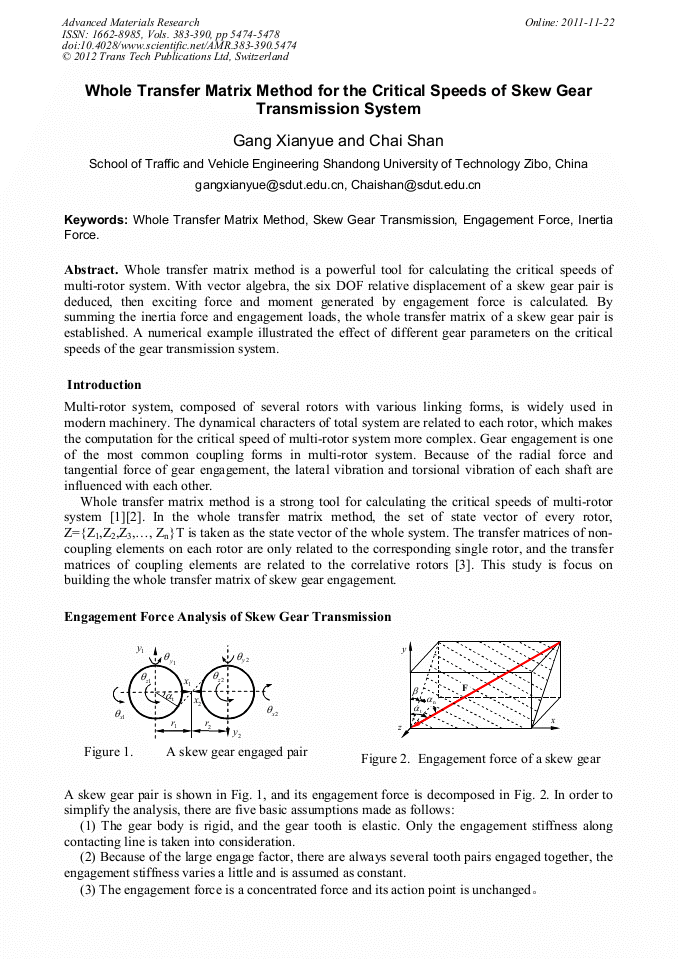

Article Preview

Abstract:

Whole transfer matrix method is a powerful tool for calculating the critical speeds of multi-rotor system. With vector algebra, the six DOF relative displacement of a skew gear pair is deduced, then exciting force and moment generated by engagement force is calculated. By summing the inertia force and engagement loads, the whole transfer matrix of a skew gear pair is established. A numerical example illustrated the effect of different gear parameters on the critical speeds of the gear transmission system.
