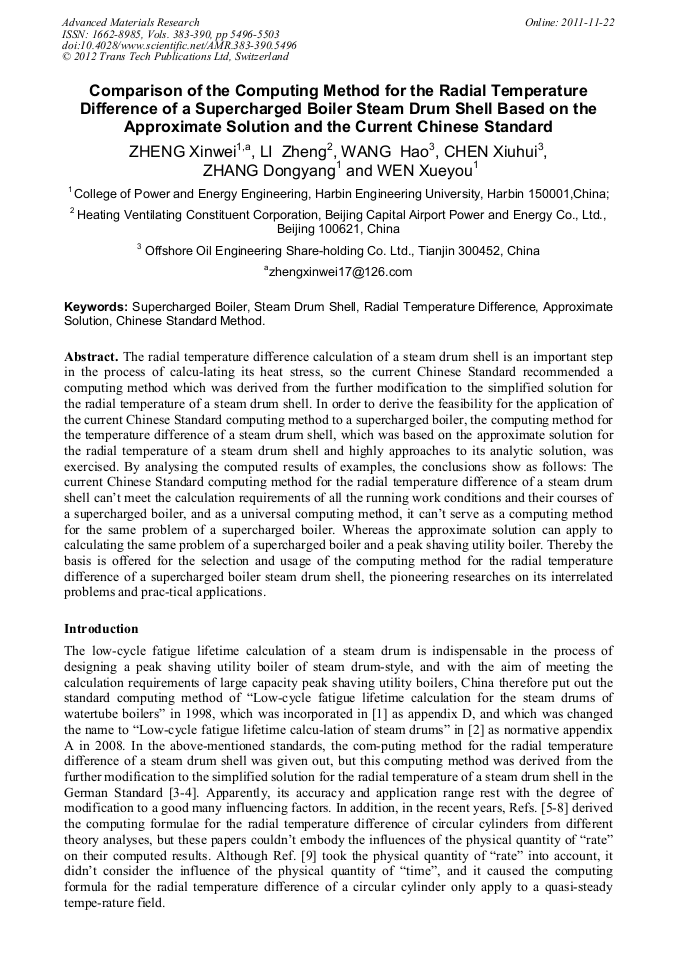

Comparison of the Computing Method for the Radial Temperature Difference of a Supercharged Boiler Steam Drum Shell Based on the Approximate Solution and the Current Chinese Standard

Abstract:

The radial temperature difference calculation of a steam drum shell is an important step in the process of calcu-lating its heat stress, so the current Chinese Standard recommended a computing method which was derived from the further modification to the simplified solution for the radial temperature of a steam drum shell. In order to derive the feasibility for the application of the current Chinese Standard computing method to a supercharged boiler, the computing method for the temperature difference of a steam drum shell, which was based on the approximate solution for the radial temperature of a steam drum shell and highly approaches to its analytic solution, was exercised. By analysing the computed results of examples, the conclusions show as follows: The current Chinese Standard computing method for the radial temperature difference of a steam drum shell can’t meet the calculation requirements of all the running work conditions and their courses of a supercharged boiler, and as a universal computing method, it can’t serve as a computing method for the same problem of a supercharged boiler. Whereas the approximate solution can apply to calculating the same problem of a supercharged boiler and a peak shaving utility boiler. Thereby the basis is offered for the selection and usage of the computing method for the radial temperature difference of a supercharged boiler steam drum shell, the pioneering researches on its interrelated problems and prac-tical applications.

• Periodical: Advanced Materials Research (Volumes 383-390)
• Pages: 5496-5503
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.383-390.5496
• Online since: November 2011
• Authors: Xin Wei Zheng, Zheng Li, Hao Wang, Xiu Hui Chen, Dong Yang Zhang, Xue You Wen
• Keywords: Approximate Solution, Chinese Standard Method, Radial Temperature Difference, Steam Drum Shell, Supercharged Boiler

References

[1] GB/T9222: 1988, Strength Calculation of Pressure Parts for Watertube Boilers, Appendix D.

[2] GB/T9222: 2008, Strength Calculation of Pressure Parts for Watertube Boilers, Normative Appendix A.

[3] TRD301: 1992, Technical Rules for Steam Boilers.

[4] LIANG Jian-ping, ZHAO Wei-min and WANG Xue-gang, etal, Features of China Standard 'Low Cyele Fatigue Life Estimation of Drums of Water Tube Boilers' ,. Electric Power, vol. 33, no. 3, Mar. 2000, pp.25-29, doi: CNKI: SUN: ZGDL. 0. 2000-03-008.

[5] E. Segall, Thermoelastic Stresses in Thick-walled Vessels Under Thermal Transients Via the Inverse Route, ASME Journal of Pressure Vessel Technology, vol. 128, Nov. 2006: pp.599-604, doi: 10. 1115/1. 2349573.

DOI: 10.1115/1.2349573

[6] E. Segall and R. Akarapu, Approximate Direct and Inverse Relation-ships for Thermal and Stress States in Thick-walled Vessels under Thermal Shock, ASME Journal of Pressure Vessel Technology, vol. 129, no. 1, Feb. 2007, pp.52-57.

DOI: 10.1115/1.2389002

[7] R. Shahani and S. M. Nabavi, Analytical Solution of the Quasi-static Thermoelasticity Problem in a Pressurized Thick-walled Cylinder Subjected to Transient Thermal Loading, Applied Mathematical Modelling, vol. 31, no. 9, Sep. 2007, pp.1807-1818.

DOI: 10.1016/j.apm.2006.06.008

[8] R. Shahani and S. M. Nabavi, Transient Thermal Stress Intensity Factors for an Internal Longitudinal Semi-elliptical Crack in a Thick-Walled Cylinder, Engineering Fracture Mechanics, vol. 74, no. 16, Nov. 2007, pp.2585-2602.

DOI: 10.1016/j.engfracmech.2006.11.018

[9] Warwick M. Parten, Ken U. Snowden and Philip Bendeich, the Use of a Simplified Analytical Expression for Metastable Thermal Stress Analysis and Its Application to Creep-fatigue Damage of a 2. 25Cr1Mo Thick-walled Component, International Journal of Fatigue, vol. 32, no. 2, Feb. 2010, pp.368-375.

DOI: 10.1016/j.ijfatigue.2009.07.007

[10] Li Zhang, ZHANG Ning and LIU Xiang-yuan, etal, Supercharged Boiler Installation. Beijing: Haichao Press, (2000).

[11] Lv Bangtai and SHEN Yuefen. Strength and Lifetime of Pressure Parts for Boilers. Beijing: Hydraulic and Electric Engineering Press, (1992).

[12] Power Engineering Academy of China. Technical Manuals of Power Generation Equipment, Vol. 1. Bijing: Chna Machine Press, 2003, pp.18-38.
